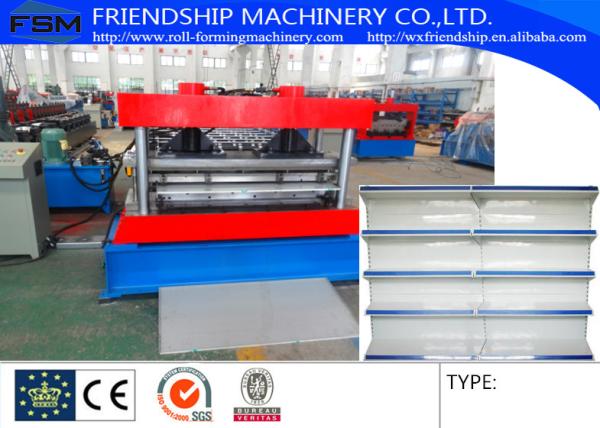

Multifunctional Backboard Panel Cable Tray Roll Forming Machine 2-4m/Min
Multifunctional Backboard Panel Cable Tray Roll Forming Machine 2-4m/Min
Multifunctional Backboard Panel Cable Tray Roll Forming Machine 2-4m/Min
Multifunctional Backboard Panel Cable Tray Roll Forming Machine 2-4m/Min
Multifunctional Backboard Panel Cable Tray Roll Forming Machine 2-4m/Min
Multifunctional Backboard Panel Cable Tray Roll Forming Machine 2-4m/Min
Multifunctional Backboard Panel Cable Tray Roll Forming Machine 2-4m/Min
Multifunctional Backboard Panel Cable Tray Roll Forming Machine 2-4m/Min
Specifications
Brand Name :
FSM MACHINERY
Certification :
CE,ISO
Place of Origin :
CHINA
MOQ :
one set
Price :
As per client requirements
Payment Terms :
T/T or LC
Supply Ability :
25 sets per month
Delivery Time :
30 working days
Packaging Details :
Plastic film or wooden case
Material :
GI
Thickness :
1.0-1.5mm
Driven :
chain
Weight :
8ton
Station :
16
PLC :
panasonic
Description

PLC Supermarket Rack Backboard Panel Roll Forming Machine warehouse storage rack back plate multifunctional shelf

Product Description
Our cable tray roll forming machine (also called cable ladder roll forming machine) is capable of making different sizes of cable trays through replacing punching molds.
The cable trays produced by this roll forming production line are extensively used in factories and other building because of their accurate robustness.
With full and special experience, we can customize cable tray forming machines or cable roll forming production lines according to customers’ profile drawing and specifications.
Other high quality equipments, including metal roll forming machine are also provided as you require.
Quick Details

Item

Description

Name

Cable Tray Roll Forming Machine

Thickness of material

0.8-2.0mm

Un-coiler

6 Tons Manual

Forming speed

2-4m/min

Roller stations

24 stations

Main motor power

22KW

Control system

PLC with touch screen

Power supply

380V,50HZ,3Phase

Package

Film and Steel

After-sales Service Provided

Engineers available to service machinery overseas


Technical parameter

Item

Description

Material

Material width

200-950mm

Material thickness

0.8-2.0mm

Un-coiler

6 tons manual

Forming system

Rolling speed

2-4m/min

Roller stations

24 stations

Roller material

GCr15 quench treatment

Shaft DIA

65mm

Main Motor power

22Kw

Cutting system

Material of Cutting

Cr15 with quench treatment

Hydraulic cutting power

5Kw

Electrical control system

Electric

380V,50HZ,3Phase

Control system

PLC(Panasonic)

Technological process
Un-coiler—Feeding—Leveling—Punching&Cutting—Roll forming—Output table
Forming flow chart
Multifunctional Backboard Panel Cable Tray Roll Forming Machine 2-4m/Min

Introduction of company
We, Friendship Machinery Co.,Ltd, attaches great importance on technology innovation,progress has been made on scientific management as well as Co.,culture.China leading expert in designing and manufacturing equipments for welding and cutting, automation system and metal works. We use and produce high-technology utilizing the most available robotic and automatic techniques. Every work is uncompromisingly designed to improve our clients' competitiveness and productivity.
We invest more on developing roll forming machine such as Metal roof & wall panels machines,C&Z purlin machines drywall Stud-track forming machines,Metal decks machines,No-girder and Column curves forming machine,Guard rails forming machines,Downspout pipes forming machines and so on.With fast development ,very short period for construction and beautiful external appearance,as well reasonable price was occupied in the market of building industry.
EXCELLENT QUALITY AND COMPETITIVE PRICE!
CHOOSE US , CHOOSE THE BEST!
Thank you for your time!
