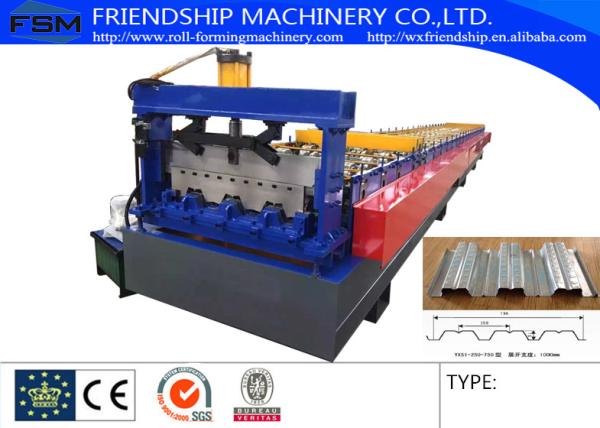

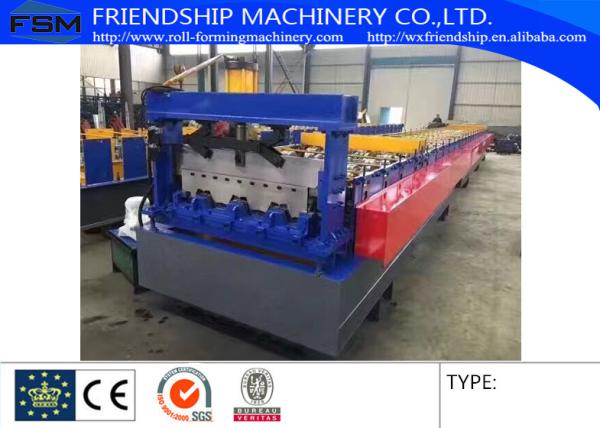

Trough Closed Lader Metal Deck Roll Former Machine With Hydraulic Station Customizable
Trough Closed Lader Metal Deck Roll Former Machine With Hydraulic Station Customizable
Trough Closed Lader Metal Deck Roll Former Machine With Hydraulic Station Customizable
Trough Closed Lader Metal Deck Roll Former Machine With Hydraulic Station Customizable
Trough Closed Lader Metal Deck Roll Former Machine With Hydraulic Station Customizable
Trough Closed Lader Metal Deck Roll Former Machine With Hydraulic Station Customizable
Specifications
Place of Origin :
China
Brand Name :
Friendship
Certification :
ISO
MOQ :
One set
Price :
as per client requirements
Packaging Details :
plastic film or wooden case
Delivery Time :
30-60days
Payment Terms :
T/T or LC
Supply Ability :
10 sets per months
Material :
GI Steel
Thickness :
1.5-2.5mm
Width :
800-1000mm
PLC :
panasonic
Speed :
5m/min
wight :
15ton
Description

Trough Closed Lader Metal Deck Roll Former Machine With Hydraulic Station Customizable

Features


1. The feeding width of our machine is 1000mm. So, there is no need to slit the steel coils that are directly bought from the raw material market, thereby making full use of the steel.

2. This is a pretty mature product, and redesign process is completely unnecessary for the models that have been fabricated by us, thus largely shortening the production cycle. In addition, the floor deck roll forming machine is customizable.

Technical proposal:

Name

Item

Specification

Coil requested

Material

galvanized steel

thickness

0.8-1.2mm

Tensile strength

550Mpa

Decoiler(1 unit)

Type and weight capacity

Manual decoiler, 10T

Inner diameter

498-508mm

Outer diameter

Max:1800mm

Rollforming machine

(1 unit)

Rolling speed

15m/min

Motor

15KW, 3phase, 60Hz, 380V

Rolling step

16

Driving system

Chain transmission

Structure of machine body

Entire wall steel structure

Material of roller

45# steel, chromed thickness0.05mm

Diameter of shaft

90mm

Dimession

Abt.10m*1.5m*1.1m

Weight

Abt.12T

Electric control cabinet(1 unit)

Main component

PLC, frequency convertor,

touching screen, encoder

Cutting and length measurement

Automatic

Brand

Panasonic from Japan, can be

chosen by client

Hydraulic station (1 unit)

Power and strength

5KW, 16Mpa

Cutting machine(1 unit)

Material of blade

GCr12 mov steel, heatment and

hardness up to HRC58-62

Cutting type

Hydraulic cutting

Run out table

Size

1.2m*0.7m*1m*4

Working flow:

Hydraulic decoiler----Guidingand feeding----Rollforming----Hydraulic cutting----Run out table

Trough Closed Lader Metal Deck Roll Former Machine With Hydraulic Station Customizable Trough Closed Lader Metal Deck Roll Former Machine With Hydraulic Station Customizable
Trough Closed Lader Metal Deck Roll Former Machine With Hydraulic Station Customizable Trough Closed Lader Metal Deck Roll Former Machine With Hydraulic Station Customizable
Trough Closed Lader Metal Deck Roll Former Machine With Hydraulic Station Customizable Trough Closed Lader Metal Deck Roll Former Machine With Hydraulic Station Customizable
