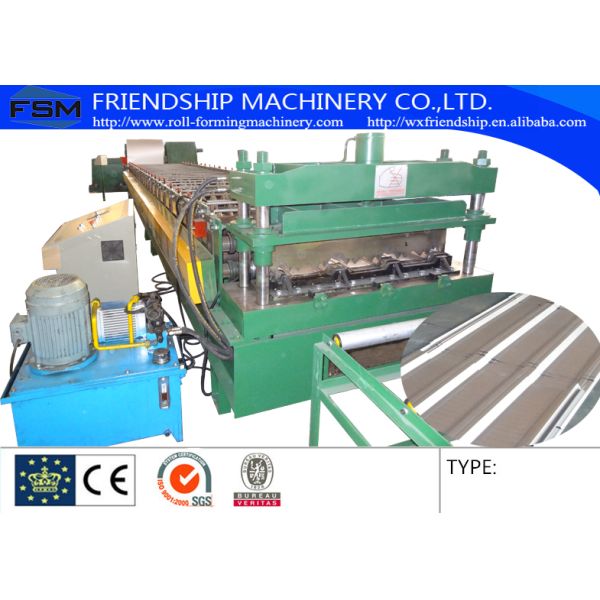

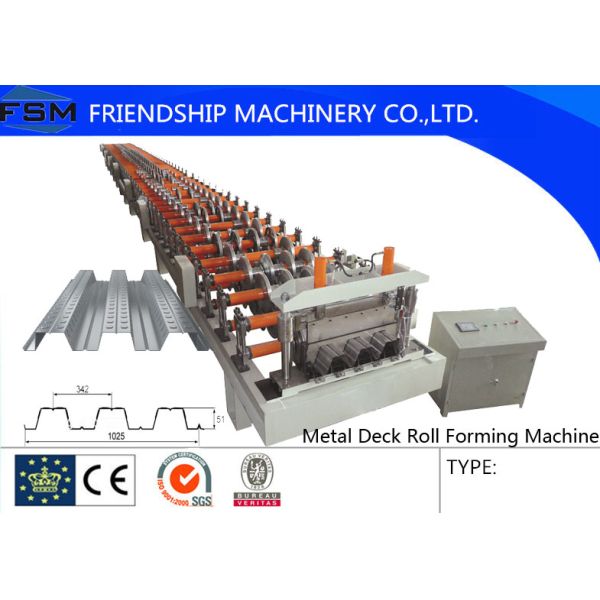

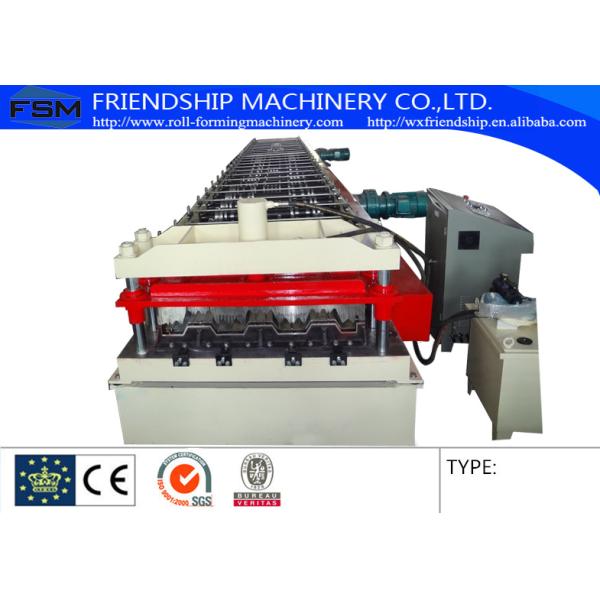

828/1000mm Metal Deck Roll Forming Machine With 10T Hydraulic Decoiler Motor 15KW 3 Phase 50Hz
828/1000mm Metal Deck Roll Forming Machine With 10T Hydraulic Decoiler Motor 15KW 3 Phase 50Hz
828/1000mm Metal Deck Roll Forming Machine With 10T Hydraulic Decoiler Motor 15KW 3 Phase 50Hz
828/1000mm Metal Deck Roll Forming Machine With 10T Hydraulic Decoiler Motor 15KW 3 Phase 50Hz
828/1000mm Metal Deck Roll Forming Machine With 10T Hydraulic Decoiler Motor 15KW 3 Phase 50Hz
828/1000mm Metal Deck Roll Forming Machine With 10T Hydraulic Decoiler Motor 15KW 3 Phase 50Hz
Specifications
Place of Origin :
China
Brand Name :
Friendship
Certification :
ISO
MOQ :
One set
Price :
as per client requirements
Packaging Details :
plastic film or plywood box
Delivery Time :
60days
Payment Terms :
T/T or LC
Supply Ability :
5 sets per months
Model Number :
FSM-D12
Material :
GI
Thickness :
1.5mm
Blade :
Samer Jaber
Cutting :
Hydraulic Cutting
speed :
15m/min
Feeing width :
1000mm
covered width :
828mm
Description

Hydraulic Decoiler 10T Metal Roll Forming Machine

With Motor Of 15KW 3 phase 50Hz

Technical proposal:

Name

Item

Specification

Coil requested

Material

galvanized steel

thickness

0.8-1.2mm

Tensile strength

235-550Mpa

Decoiler(1 unit)

Type and weight capacity

Manual decoiler, 10T

Inner diameter

498-508mm

Outer diameter

Max:1800mm

Rollforming machine
(1 unit)

Rolling speed

20m/min

Motor

11KW, 3phase, 60Hz, 380V

Rolling step

16

Driving system

Chain transmission

Structure of machine body

Entire wall steel structure

Material of roller

45# steel, chromed thickness0.05mm

Diameter of shaft

90mm

Dimession

Abt.9m*1.5m*1.1m

Weight

Abt.9T

Electric control cabinet(1 unit)

Main component

PLC, frequency convertor,
touching screen, encoder

Cutting and length measurement

Automatic

Brand

Panasonic from Japan,
can be chosen by client

Hydraulic station (1 unit)

Power and strength

5KW, 16Mpa

Cutting machine(1 unit)

Material of blade

GCr12 mov steel,
heatment and hardness up to
HRC58-62

Cutting type

Hydraulic cutting

Automatic stacker

Size

2m*7m*1.8m


828/1000mm Metal Deck Roll Forming Machine With 10T Hydraulic Decoiler Motor 15KW 3 Phase 50Hz 828/1000mm Metal Deck Roll Forming Machine With 10T Hydraulic Decoiler Motor 15KW 3 Phase 50Hz
828/1000mm Metal Deck Roll Forming Machine With 10T Hydraulic Decoiler Motor 15KW 3 Phase 50Hz 828/1000mm Metal Deck Roll Forming Machine With 10T Hydraulic Decoiler Motor 15KW 3 Phase 50Hz
828/1000mm Metal Deck Roll Forming Machine With 10T Hydraulic Decoiler Motor 15KW 3 Phase 50Hz 828/1000mm Metal Deck Roll Forming Machine With 10T Hydraulic Decoiler Motor 15KW 3 Phase 50Hz

We, Wuxi Friendship Machinery Co., Ltd, China leading expert in designing and manufacturing metal sheet roll forming machines, automatic welding and cutting system. We achieve this by the most skilled, dedicated and diverse group of people in our industry.

Our key products: C/Z/U purline forming line, PU sandwich panel line, steel silo production line, Culvert Corrugated pipe production line, roof/wall/deck/ forming machine and so on; H beam welding line, welding rotators and manipulator, positioner and so on.

We insist on providing quality products and service at affordable price for our clients. The performance record of our products is the backbone of Friendship Machinery's reputation. The proven ability of every set machine is why customers have returned to us repeatedly for new applications, designs and machinery as their products change and expand. We are proud of it

Our machines are well sold in South East and south Asia, Middle East, Africa, South America and East Europe, more than thirty countries.

Warmly welcome to visit our factory and we are looking forward to cooperating with you for splendid future.
