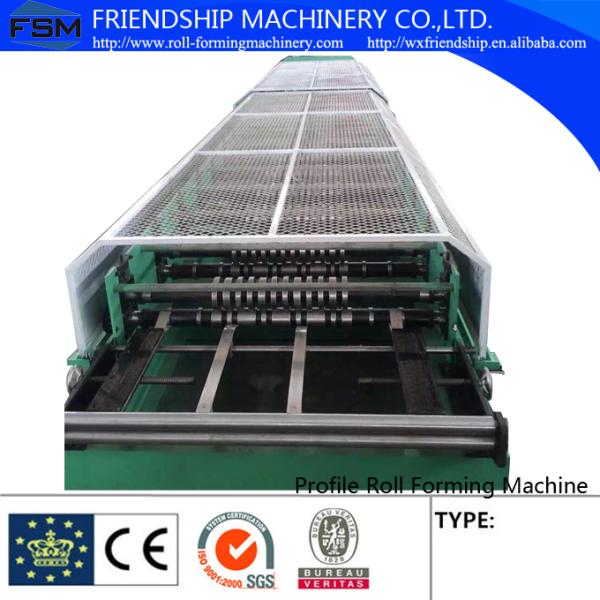

15m/Min Electronic Steel Color Roof Roll Forming Machine With Motor 15kw 380v 3 Phase
15m/Min Electronic Steel Color Roof Roll Forming Machine With Motor 15kw 380v 3 Phase
15m/Min Electronic Steel Color Roof Roll Forming Machine With Motor 15kw 380v 3 Phase
15m/Min Electronic Steel Color Roof Roll Forming Machine With Motor 15kw 380v 3 Phase
15m/Min Electronic Steel Color Roof Roll Forming Machine With Motor 15kw 380v 3 Phase
15m/Min Electronic Steel Color Roof Roll Forming Machine With Motor 15kw 380v 3 Phase
15m/Min Electronic Steel Color Roof Roll Forming Machine With Motor 15kw 380v 3 Phase
15m/Min Electronic Steel Color Roof Roll Forming Machine With Motor 15kw 380v 3 Phase
Specifications
Place of Origin :
China
Brand Name :
Friendship
Model Number :
FSM-111
Certification :
ISO
MOQ :
One set
Price :
as per client requirements
Packaging Details :
plastic film or plywood box
Delivery Time :
60days
Payment Terms :
T/T or LC, Western Union, MoneyGram
Supply Ability :
100 sets per months
Material :
Color steel
Thickness :
0.4-0.6mm
Power :
380V
Speed :
10-15m/min
PLC :
Panasonic
weight :
10ton
Description

15m/Min Electronic Steel Color Roof Roll Forming Machine With Motor 15kw, 380v, 3 Phase

Technical proposal:

Name

Item

Specification

Coil requested

Material

Color steel,
galvanized steel

thickness

0.4-0.8mm

Tensile strength

235Mpa

Coil width

Up:1297mm Down:1300mm

Decoiler(1 unit)

Type and weight capacity

Manual decoiler, 5T

Inner diameter

498-508mm

Outer diameter

Max:1800mm

Rollforming machine
(1 unit)

Rolling speed

15m/min

Motor

15KW, 3phase, 60Hz, 380V

Rolling step

16

Driving system

Chain transmission

Structure of machine body

Entire wall steel structure

Material of roller

45# steel, chromed
thickness0.05mm

Diameter of shaft

75mm

Dimession

Abt.9m*1.5m*1.1m

Weight

Abt.10T

Electric control cabinet(1 unit)

Main component

PLC, frequency convertor,
touching screen, encoder

Cutting and length measurement

Automatic

Brand

Panasonic from Japan,
can be chosen by client

Hydraulic station (1 unit)

Power and strength

3.5KW, 16Mpa

Cutting machine(1 unit)

Material of blade

GCr12 mov steel, heatment
and hardness up to HRC58-62

Cutting type

Hydraulic cutting

Run out table(1 unit with 4 pieces)

Size

1.2m*0.7m*1m*4

15m/Min Electronic Steel Color Roof Roll Forming Machine With Motor 15kw 380v 3 Phase 15m/Min Electronic Steel Color Roof Roll Forming Machine With Motor 15kw 380v 3 Phase
15m/Min Electronic Steel Color Roof Roll Forming Machine With Motor 15kw 380v 3 Phase 15m/Min Electronic Steel Color Roof Roll Forming Machine With Motor 15kw 380v 3 Phase

Roll forming machine:

Roll forming machine line with galvanized steel plate color or different color steel or aluminum as raw materials, production of products used in the roof of the building external plate and wall board, increase their roofs or walls of aesthetics and durability. The limitation of length of the line is not production, but according to construction requirements set many different sets of data on the computer controller, a key, after the "confirmation" equipment automatically according to the data of computer produce different length of the finished product. Through the production lines of the surface of the finished product level off is smooth, level off, without scratches, is advantageous for the construction of the installation. Products meet the national steel structure building standards.
