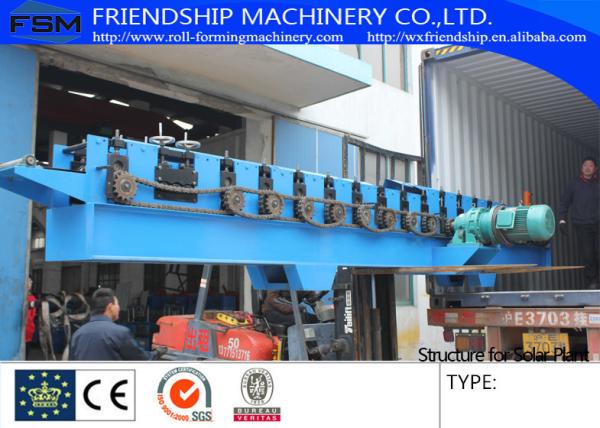

Photo Voltatic C / U Rack Roll Forming Machine 0.6 - 1.2mm Polished

Technical Details:

Roll forming main machine

1: Coil width: according to profile,

Size range: width 60-160mm, flange: 30-70mm, lip: 10-20mm,

Make both C and U profile.

2: working speed: 12-15m/min (not contain cutting)

3: roll station: 12 stations

4: material of roller: GCR15

5:material of main shaft:45﹟steel diameter roller: Ф65mm

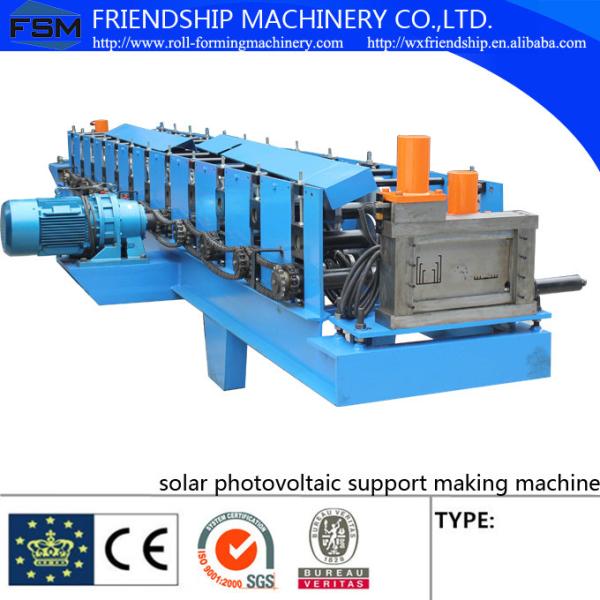

Sample photo for reference:

6: forming thickness: 0.8-1.6mm. Max 345 MPa.

7: main power: 7.5KW motor.

8: Transmission: by single Chains 1.2 inch

9: feeding and guide: surface polished and coated with chrome

10: Cutting :

  1. Cutting adopts hydraulic cutting
  2. Cutting after forming: Cut the sheet after roll forming to required length

(2) Cutting motion: The main machine automatically stops and the cutting will take place. After the cutting, the main machine will automatically start.

(4) Length measuring: Automatic length measuring

(5) Tolerance of length: 3m+/- 1.5mm

Details of each composition:

Item Description
Roll Station Forming Station 17stations
ASTM52100, polished and coated with chrome HRC58-62°
Leveling station: 7 rollers ( up three rollers, down four rollers)
Diameter of roller 76mm

Material of roller

ASTM1045, polished and coated with chrome

HRC58-62°
Material of main shaft ASTM1045
Main power 11kw DC motor
Forming thickness 1.5-2.0mm
Transmission by single line chain 1.5inch
Machine adopts new stations to make machine stronger
Cutting Machine adopt hydraulic after cutting
Cutting after forming: Cut the sheet after roll forming to required length

Cutting motion:

The main machine automatically stops and the cutting

will take place. After the cutting, the main machine wil

l automatically start.
Material of blade D2with heat treatment total 3 cutters
Length measuring Automatic length measuring
Tolerance of length 3m +/- 1.5mm
Uncoiler Dimensions 1700mm*1000mm*800mm
Width of feeding 300mm
Capability 5 Ton
Bound of expand &fight 460mm—510mm
Mode of expand &fight inner expand &fight by manual
Way of feeding manual
Control panel Panasonic Voltage, Frequency, Phase 380 V, 50 Hz, 3Phase
Automatic length and quantity measurement
Computer used to control length & quantity

Machine will automatically cut to length and stop when required quantity is

achieved
Length inaccuracy can be amended easily
Control panel Button-type switch and touch screen
Unit of length

millimeter (switched on the control panel)
Hydraulic station hydraulic station power 5.5kw
Hydraulic pressure 20Mpa
Manual out table Jointed by 60mm*40mm tube
Size 1.0m long*0.8mwide*0.6-1mhigh

One out table with two support roller

Technological process:


Uncoiling—Feeding—Leveling-----Roll forming— Revising—-Cutting—Products

Composition of machine:

NO. Name Unit Qty
1 Roll forming main machine Set 1
2 Manual Uncoiler Set 1
3 Control panel Set 1
4 Hydraulic station Set 1
5 Manual out table Set 2
6 Spare tools Box 1
