17 Stations and Two Waves Roll Station Guardrail Roll Forming Equipment Machine With Gearbox Drive
17 Stations and Two Waves Roll Station Guardrail Roll Forming Equipment Machine With Gearbox Drive
17 Stations and Two Waves Roll Station Guardrail Roll Forming Equipment Machine With Gearbox Drive
17 Stations and Two Waves Roll Station Guardrail Roll Forming Equipment Machine With Gearbox Drive
17 Stations and Two Waves Roll Station Guardrail Roll Forming Equipment Machine With Gearbox Drive
17 Stations and Two Waves Roll Station Guardrail Roll Forming Equipment Machine With Gearbox Drive
Specifications
Place of Origin :
China
Brand Name :
Friendship
Certification :
ISO,CO,FORME,FTA
MOQ :
One set
Price :
as per client requirements
Packaging Details :
plastic film or wooden case
Delivery Time :
30-60days
Payment Terms :
T/T or LC, D/A
Supply Ability :
100 sets per months
Model Number :
YX31085
Raw Material :
Steel grade: Q235
Thickness :
2.5～4.0mm
Coil weight :
≤10T
Main motor power :
37kw
Drive :
gearbox driving
Roll station :
17stations
Description

17 Stations Roll Station Guardrail Roll Forming Equipment Machine


Production Characteristic and use


This kind of machine adopts new station to increase the firmness; machine adopts gearbox transmission to ensure working more stable; products used in a variety of guardrail, highway guardrail, fence and other livestock farms.

Main Technical Specification

  • Thickness: 2.5-4.0mm
  • Speed: 15m/min (not include cutting and punching)
  • Material: strip steel
  • Roll station: 17 stations
  • Main power: 37KW
  • Hydraulic power: 18.5KW
  • Control system: PLC Panasonic
  • Drive: by gear box or chain
  • Material of roller: 45# bearing steel, heat treatment, HRC58-62

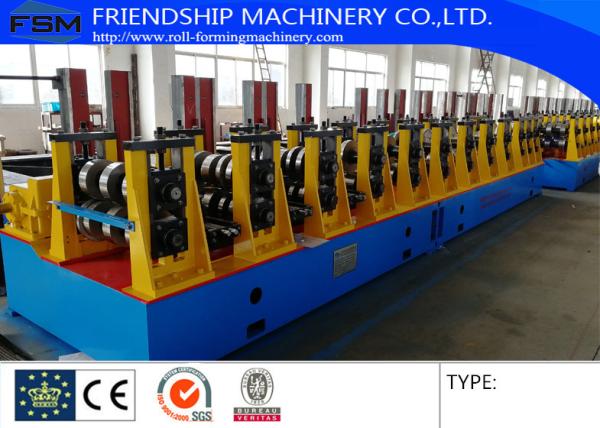

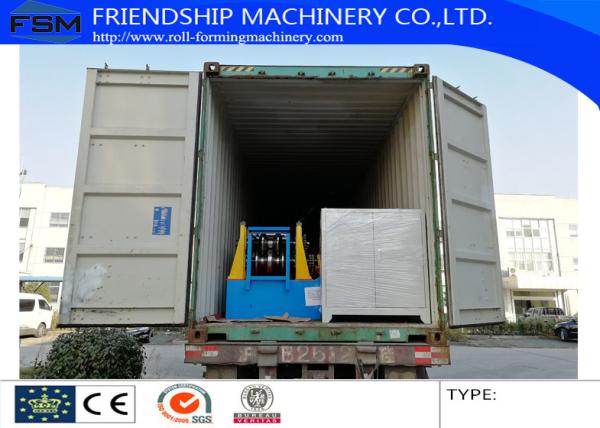

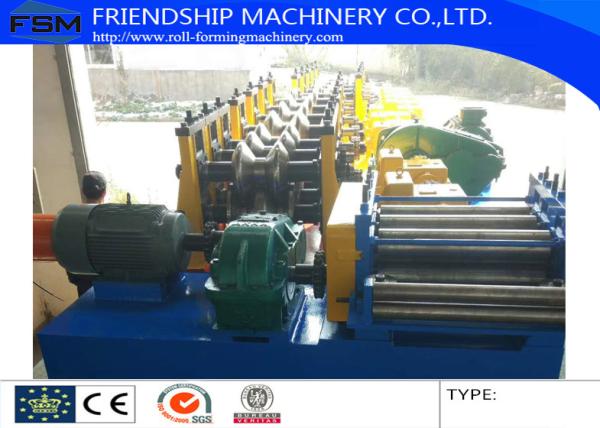

Pictures of machine

17 Stations and Two Waves Roll Station Guardrail Roll Forming Equipment Machine With Gearbox Drive 17 Stations and Two Waves Roll Station Guardrail Roll Forming Equipment Machine With Gearbox Drive
17 Stations and Two Waves Roll Station Guardrail Roll Forming Equipment Machine With Gearbox Drive 17 Stations and Two Waves Roll Station Guardrail Roll Forming Equipment Machine With Gearbox Drive
17 Stations and Two Waves Roll Station Guardrail Roll Forming Equipment Machine With Gearbox Drive 17 Stations and Two Waves Roll Station Guardrail Roll Forming Equipment Machine With Gearbox Drive

Introduction of company

We, Friendship Machinery Co.,Ltd, attaches great importance on technology innovation,progress has been made on scientific management as well as Co.,culture.China leading expert in designing and manufacturing equipments for welding and cutting, automation system and metal works. We use and produce high-technology utilizing the most available robotic and automatic techniques. Every work is uncompromisingly designed to improve our clients' competitiveness and productivity.

We invest more on developing roll forming machine such as Metal roof & wall panels machines,C&Z purlin machines drywall Stud-track forming machines,Metal decks machines,

No-girder and Column curves forming machine,Guard rails forming machines,Downspout pipes forming machines and so on.With fast development ,very short period for construction and beautiful external appearance,as well reasonable price was occupied in the market of building industry.


EXCELLENT QUALITY AND COMPETITIVE PRICE!
CHOOSE US , CHOOSE THE BEST!
Thank you for your time!

Skype:vivian_866

Mobile:86-15261519246

E-mail:wxfriendship@163.com
