620/700/914mmCovered Width Floor Deck Roll Forming Machinery

With 5.5KW Hydraulic Power And 12Mpa

Introduction of machine

• Coil width: 1250mm
• Working speed: 30m/min (not contain cutting)
• Forming thickness: 0.4mm—0.8mm color steel and galvanized steel
• effective width:1000mm
• Hydraulic station power: 5.5kw
• Hydraulic pressure: 12Mpa
• The structure is simple and the appearance of the machine is beautiful because we adopt the shape-steel structure and process as a whole after welding. it has the ability of strong loading and stable operation when running the machine.
• All the components of machine are from brand-famous enterprise so that they ensure the machine normal function very effectively.
• We adopt the automatic length-fixed forming and cutting to guarantee the length to be precise and the finished product clear without deforming .
• It is very easy to install the equipment and suitable for producing in the factory.
• The machine has features of low noise and high efficiency.

Composition of machine

Roll forming main machine

• Working speed: 30m/min (not contain cutting)
• Roll station: 18stations
• Material of roller: Cr45 steel, polished and coated with chrome
• Material of main shaft:45﹟forge steel diameter roller: Ф 85mm
• Main power: 7.5KW machine
• Transmission: by single Chains 1.2 inch
• Feeding and guide: surface polished and coated with chrome
• Machine adopt protect cover
• Machine adopt new station with chrome (at the up of each station have dial)
• Size of machine:10500x1400x1200(mm)
• Weight: about 6500Kgs
• Color of machine: blue
• Machine should be with four legs (made from metal) in 350mm
• Motorized Pre-cutting: It is used when changing the coil of raw material; it can
• Cut the coil rapidly and time-saving.
• Hydraulic Cutting after forming: Cut the sheet after roll forming to required length
• Cutting motion: The main machine automatically stops and the cutting will take place. After the cutting, the main machine will automatically start.
• Material of cutting blade: CR12with heat treatment
• Length measuring: Automatic length measuring
• Tolerance of length: 3m+/- 1.5mm

Manual and hydraulic de-coiler

Control panel Panasonic

• Voltage, Frequency, Phase: 380 V, 50 Hz, 3Phase
• Automatic length measurement
• Automatic quantity measurement
• Computer used to control length & quantity. Machine will automatically cut to length and stop when required quantity is achieved
• Length inaccuracy can be amended easily.
• Control panel: Button-type switch and touch screen
• Unit of length: millimeter (switched on the control panel)

Manual out table and 6/12m automatic stacker

Technological process

Decoiling—feeding—guide---roll forming----cut to length—product packing manual

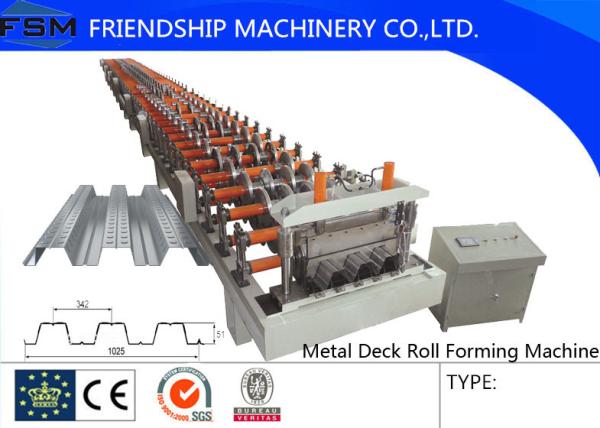

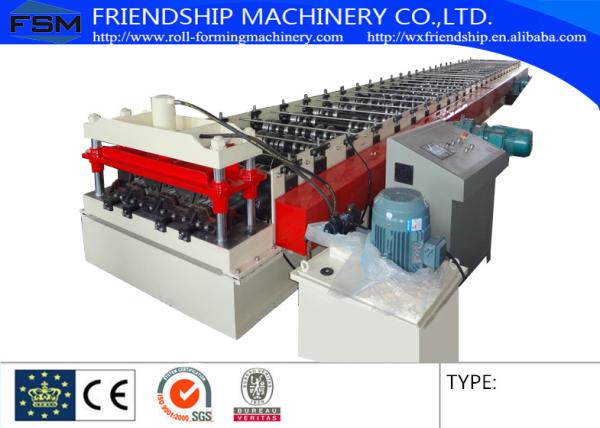

Pictures of machine

Introduction of company

We, Friendship Machinery Co.,Ltd, attaches great importance on technology innovation,progress has been made on scientific management as well as Co.,culture.China leading expert in designing and manufacturing equipments for welding and cutting, automation system and metal works. We use and produce high-technology utilizing the most available robotic and automatic techniques. Every work is uncompromisingly designed to improve our clients' competitiveness and productivity.

We invest more on developing roll forming machine such as Metal roof & wall panels machines,C&Z purlin machines drywall Stud-track forming machines,Metal decks machines,No-girder and Column curves forming machine,Guard rails forming machines,Downspout pipes forming machines and so on.With fast development ,very short period for construction and beautiful external appearance,as well reasonable price was occupied in the market of building industry.
