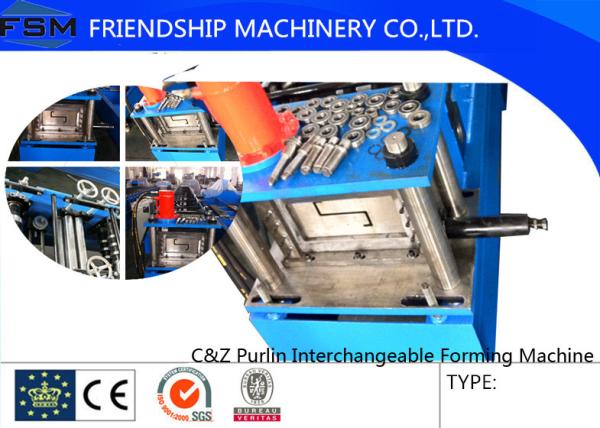

1.5mm - 3mm C Z Purlin Roll Forming Machine Automatic Control System

Specification and characteristic of machine

• Model of machine:C80-300mm
• Material thickness:1.5-3mm
• Working speed:15m/min (not include cutting and punching)
• Forming station of machine:18 stations
• Main power: 15KW
• Hydraulic power:5.5KW
• Control system of machine:PLC Panasonic
• Drive:by chain or gearbox
• Degree of automaticity:semi-automatic/automatic
• The machine adopt new station to increase the firmness of the machine.
• The machine adopt gearbox transmission to ensure machine working more stable.
• Machine adopt after-cutting to ensure quality of the cutting position of product very smooth.
• Productions are widely used in steel structure building.

Detailed data of C purlin roll forming machine

Main parts of c purlin roll forming machine

Technological process

Decoiler---Feeding & Leveling---Roll Forming---Punching---Cut-to-length---Run out table

Control panel Panasonic

• Voltage, Frequency, Phase: 415V, 50 Hz, 3Phase
• Automatic length and quantity measurement.
• Machine will automatically cut to length and stop when required quantity is achieved
• Control panel: Button-type switch and touch screen.
• Unit of length: millimeter (switched on the control panel).
• The program should be can set 5 different measure and quantity.

Drawing of profile

main features of machine

• We adopt the shape-steel structure and process as a whole after welding.
• The machine has the ability of strong loading and stable operation when running the machine.
• We adopt the automatic length-fixed forming and cutting to guarantee the length to be
• precise and the finished product clear without deforming .
• It is very easy to install the equipment and suitable for producing in the factory.
• All the components of machine are from brand-famous enterprise so that they ensure the machine normal function very effectively.
• The machine has features of low noise and high efficiency.
• We can produce the machine according to the customers' requirement.

Introduction of company

We, Friendship Machinery Co.,Ltd, attaches great importance on technology innovation,progress has been made on scientific management as well as Co.,culture.China leading expert in designing and manufacturing equipments for welding and cutting, automation system and metal works. We use and produce high-technology utilizing the most available robotic and automatic techniques. Every work is uncompromisingly designed to improve our clients' competitiveness and productivity.

We invest more on developing roll forming machine such as Metal roof & wall panels machines,C&Z purlin machines drywall Stud-track forming machines,Metal decks machines,No-girder and Column curves forming machine,Guard rails forming machines,Downspout pipes forming machines and so on.With fast development ,very short period for construction and beautiful external appearance,as well reasonable price was occupied in the market of building industry.
