GI Steel 1.2 - 2.0mm Stud Roll Forming Machine Used For Light Steel Stud and Track
GI Steel 1.2 - 2.0mm Stud Roll Forming Machine Used For Light Steel Stud and Track
GI Steel 1.2 - 2.0mm Stud Roll Forming Machine Used For Light Steel Stud and Track
GI Steel 1.2 - 2.0mm Stud Roll Forming Machine Used For Light Steel Stud and Track
GI Steel 1.2 - 2.0mm Stud Roll Forming Machine Used For Light Steel Stud and Track
GI Steel 1.2 - 2.0mm Stud Roll Forming Machine Used For Light Steel Stud and Track
GI Steel 1.2 - 2.0mm Stud Roll Forming Machine Used For Light Steel Stud and Track
GI Steel 1.2 - 2.0mm Stud Roll Forming Machine Used For Light Steel Stud and Track
GI Steel 1.2 - 2.0mm Stud Roll Forming Machine Used For Light Steel Stud and Track
GI Steel 1.2 - 2.0mm Stud Roll Forming Machine Used For Light Steel Stud and Track
Specifications
Place of Origin :
China
Brand Name :
Friendship
Model Number :
FSM-187
Certification :
ISO
MOQ :
One set
Price :
as per client requirements
Packaging Details :
plastic film or plywood box
Delivery Time :
60days
Payment Terms :
T/T or LC
Supply Ability :
100 sets per months
Material :
GI STEEL
Thickness :
1.2-2.5mm
Speed :
12m/min
power :
380v 3p
plc :
pansonic
length :
11m
Description
GI Steel 1.2 - 2.0mm Stud Roll Forming Machine Used for Light Steel Stud and Track
Technical parameter of track roll forming machine:

No.

item

speciafication

1.

processing material

GI strip coils

2.

processing thickness

0.3-0.6mm

3.

productivity

15-20m/min

4.

roller material

Cr12

5.

number of roller stations

13

6.

roller driven

decelerating motor+chain transmission

7.

diameter of shaft

Φ50mm

8.

length measurement

encoder

9.

cutting mode

hydraulic cutting device

10.

operation mode

button+touch screen

11.

control style

PLC

12.

driven system

single

13.

total power

8kw

14.

voltage

380v 50hz or as your requirements


Working flow:

Cantilever decoiler----feeding----rollforming----straightening----hydraulic cutting----run out table

GI Steel 1.2 - 2.0mm Stud Roll Forming Machine Used For Light Steel Stud and Track
GI Steel 1.2 - 2.0mm Stud Roll Forming Machine Used For Light Steel Stud and Track GI Steel 1.2 - 2.0mm Stud Roll Forming Machine Used For Light Steel Stud and Track

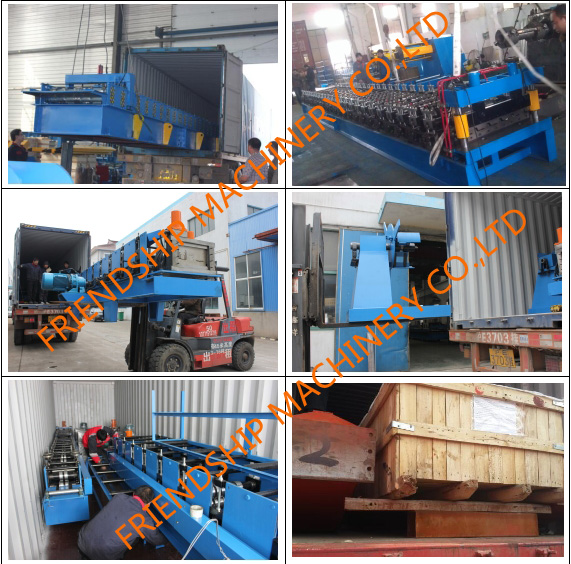

Packing Pic
GI Steel 1.2 - 2.0mm Stud Roll Forming Machine Used For Light Steel Stud and Track GI Steel 1.2 - 2.0mm Stud Roll Forming Machine Used For Light Steel Stud and Track
GI Steel 1.2 - 2.0mm Stud Roll Forming Machine Used For Light Steel Stud and Track
GI Steel 1.2 - 2.0mm Stud Roll Forming Machine Used For Light Steel Stud and Track

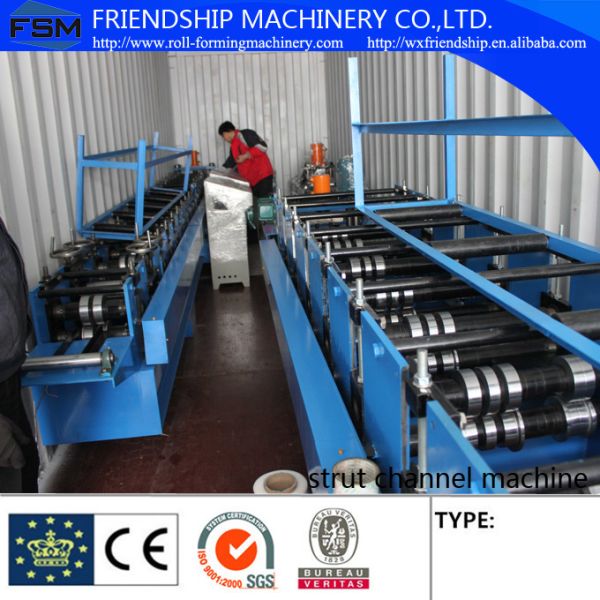

Roll forming main machine

  • Roll station: 18stations
  • Material of roller: Cr45 steel, polished and coated with chrome
  • Material of main shaft:45﹟forge steel diameter roller: Ф 85mm
  • Main power: 7.5KW machine
  • Transmission: by single Chains 1.2 inch
  • Feeding and guide: surface polished and coated with chrome
  • Machine adopt protect cover
  • Machine adopt new station with chrome (at the up of each station have dial)
  • Size of machine:10000x1600x1200(mm) L x W x H need 1x40GP container
  • Weight: about 6500Kgs
  • Color of machine: blue
  • Machine should be with four legs (made from metal) in 350mm
  • Motorized Pre-cutting: It is used when changing the coil of raw material; it can
  • Cut the coil rapidly and time-saving.
  • Cutting:

(1) Motorized Pre-cutting: It is used when changing the coil of raw material; it can
cut the coil rapidly and time-saving.

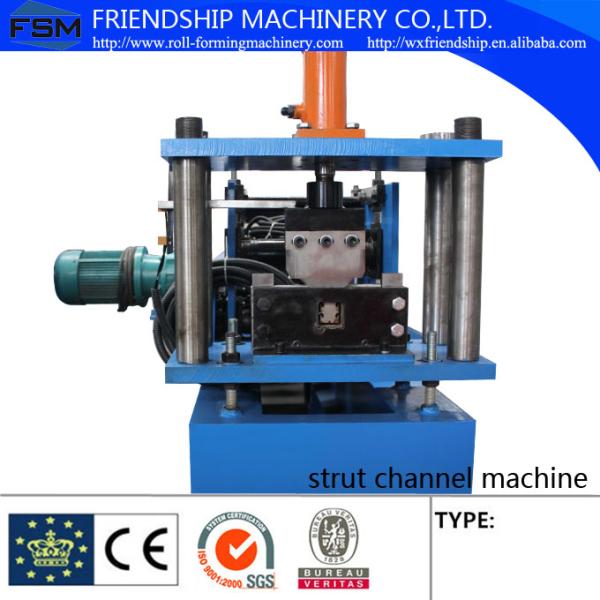

(2) Hydraulic Cutting after forming: Cut the sheet after roll forming to required
length
(3) Cutting motion: The main machine automatically stops and the cutting will take
place. After the cutting, the main machine will automatically start.
(4) Material of blade: CR12with heat treatment
(5) Length measuring: Automatic length measuring
(6) Tolerance of length: 3m+/- 1.5mm

Control panel Panasonic

  • Voltage, Frequency, Phase: 380 V, 50 Hz, 3Phase
  • Automatic length measurement
  • Automatic quantity measurement
  • Computer used to control length & quantity. Machine will automatically cut to length and stop when required quantity is achieved
  • Length inaccuracy can be amended easily.
  • Control panel: Button-type switch and touch screen
  • Unit of length: millimeter (switched on the control panel)
