Hydraulic Color Steel Roof Bending Metal Forming Machines For 0.4 - 0.8mm Thickness
Hydraulic Color Steel Roof Bending Metal Forming Machines For 0.4 - 0.8mm Thickness
Hydraulic Color Steel Roof Bending Metal Forming Machines For 0.4 - 0.8mm Thickness
Hydraulic Color Steel Roof Bending Metal Forming Machines For 0.4 - 0.8mm Thickness
Hydraulic Color Steel Roof Bending Metal Forming Machines For 0.4 - 0.8mm Thickness
Hydraulic Color Steel Roof Bending Metal Forming Machines For 0.4 - 0.8mm Thickness
Hydraulic Color Steel Roof Bending Metal Forming Machines For 0.4 - 0.8mm Thickness
Hydraulic Color Steel Roof Bending Metal Forming Machines For 0.4 - 0.8mm Thickness
Specifications
Brand Name :
Friendship
Certification :
ISO
Place of Origin :
China
MOQ :
One set
Price :
as per client requirements
Payment Terms :
T/T or LC
Supply Ability :
100 sets per months
Delivery Time :
30-60days
Packaging Details :
plastic film or wooden case
Main power :
0.85KW servo motor
Hydraulic power :
5.5KW
Roll speed :
0—10m/min
Specification of material :
0.4—0.8 mm
Control system :
PLC Panasonic
Press material :
CR12 HRC55-60 surface with chrome
Description

Hydraulic color Steel Roof Bending Metal Forming Machinery suit for 0.4 - 0.8mm thickness

Quick Detail:

Hydraulic power:5.5KW

Control system: PLC Panasonic

Dimension of machine:3000 mm×1400 mm×1400 mm

Main Specification:

1. Main power:0.85KW servo motor

2. Hydraulic power:5.5KW

3. Roll speed:0—10m/min

4. Specification of material:0.25—0.8 mm

5. Press material:CR12 HRC55-60 surface with chrome

6. Control system: PLC Panasonic

7. Dimension of machine:3000 mm×1400 mm×1400 mm

8, the max bending angle:1200

9, width of the sheet: Design base on YX35-200-1000 roofing profile

10, This machine need to profile obverse and inverse profile, so need two mold.

Main Features:

a, the structure is simple and the appearance of the machine is beautiful because we adopt the shape-steel structure and process as a whole after welding. it has the ability of strong loading and stable operation when running the machine.

b. All the components of machine are from brand-famous enterprise so that they ensure the machine normal function very effectively.

c, we adopt the automatic length-fixed forming and cutting to guarantee the length to be precise and the finished product clear without deforming .

d: it is very easy to install the equipment and suitable for producing in the factory.

e: the machine has features of low noise and high efficiency.

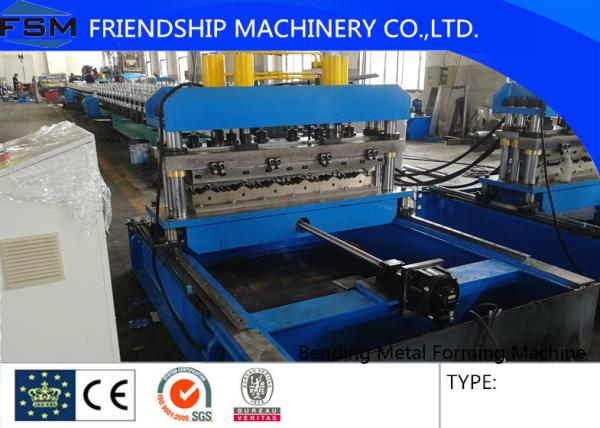

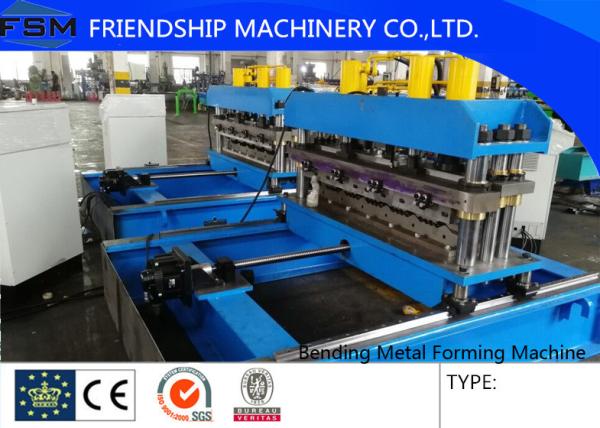

Main Picture:

Hydraulic Color Steel Roof Bending Metal Forming Machines For 0.4 - 0.8mm Thickness Hydraulic Color Steel Roof Bending Metal Forming Machines For 0.4 - 0.8mm Thickness
Hydraulic Color Steel Roof Bending Metal Forming Machines For 0.4 - 0.8mm Thickness Hydraulic Color Steel Roof Bending Metal Forming Machines For 0.4 - 0.8mm Thickness

Contact Us

For more information, feel free to contact with us.
