7.5kw Digital Control Metal Forming Machinery , For Fold and Slit Work Piece
7.5kw Digital Control Metal Forming Machinery , For Fold and Slit Work Piece
Specifications
Place of Origin :
China
Brand Name :
Friendship
Certification :
ISO
MOQ :
One set
Price :
as per client requirements
Packaging Details :
plastic film or wooden case
Delivery Time :
30-60days
Payment Terms :
T/T or LC
Supply Ability :
100 sets per months
Description

7.5kw Digital Control Metal Forming Machinery ,

For Fold and Slit Work Piece

Quick Detail:

working speed: 12m—15m/min

roll station: 28stations

main power: 7.5kw

Parameter

1: Coil width: depend on customer request profile
2: working speed: 12m—15m/min (not contain cutting)
3: roll station: 28stations
4: material of roller: 45＃forge steel, polished and coated with chrome
5:material of main shaft:45﹟forge steel diameter roller: Ф56mm
6: main power: 7.5kw
7: forming thickness: 0.7-1.2mm galvanized steel
8: Transmission: by Chains

9.Cutting:

(1)Cutting after forming: Cut the sheet after roll forming to required length
(2)Cutting motion: The main machine automatically stops and the cutting will take place. After the cutting, the main machine will automatically start.
(3)Material of blade: CR12with heat treatment
(4)Length measuring: Automatic length measuring
(5)Tolerance of length: +/- 1.5mm

Component:

(1) The electric parts are all Japanese famous brands, such as mistsubishi, Panasonic, Omron, Proface, etc. You can choose the brand from them for each one.

(2) Hydraulic station, motor and roller bearing are all adopt famous brand in China and Japanse.

Working Flow:

Passive/hydraulic decoiler--------guiding&feeeding--------roll forming----------length measuremnt---------hydraulic cutting----------run out table

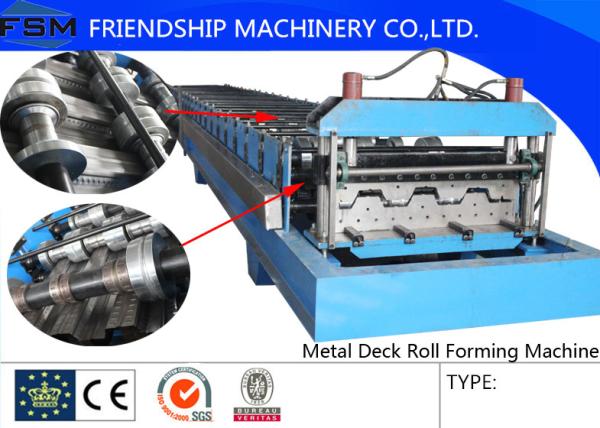

Main Picture:

7.5kw Digital Control Metal Forming Machinery , For Fold and Slit Work Piece

Contact Us

For more information, feel free to contact with us.

Skype:vivian_866

Mobile:86-15261519246

E-mail:sales02@roll-formingmachinery.com

vivianlucky866@gmail.com
