Cross T Bar Roofing Metal Forming Machinery 380V 50HZ 3 Phase
Cross T Bar Roofing Metal Forming Machinery 380V 50HZ 3 Phase
Specifications
Place of Origin :
China
Brand Name :
Friendship
Certification :
ISO
MOQ :
One set
Price :
as per client requirements
Packaging Details :
plastic film or wooden case
Delivery Time :
30-60days
Payment Terms :
T/T or LC
Supply Ability :
100 sets per months
Description

Cross T Bar Roofing Metal Forming Machinery 380V 50HZ 3 Phase

We are professionally making cross T bar rooofing machine.

Main data

1. Main T-bar roofing machine
1.1 Rolling speed 12-15m/min(not include cutting time)
1.2 Rolling thickness 0.5-1.27mm
1.3 Control system PLC (Panasonic) as list in the note
1.4 Un coiler 3TON as list in the note
1.5 Gross weight of the machine About 3tons
1.6 dimension 7300×1200×1100mm
1.7 Roller stations 18 steps
1.8 Roller material 45#forge steel, coated with chrome
1.9 Shaft diameter ￠45mm, material is 45# forge steel
1.10 Maim motor power 4kw
1.11 Hydraulic station power 4kw
1.12 Hydraulic pressure 16Mpa
1.13 Material of cutting Cr12Mov
1.14 Tolerance +-1.5mm
1.15 Electric source 380V, 50HZ, 3 phase
1.16 Color of the machine Yellow and blue

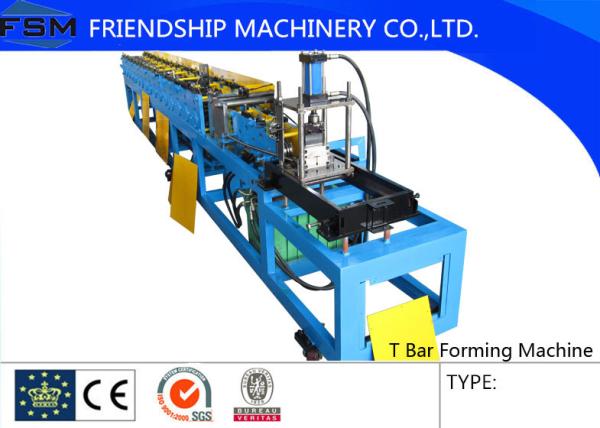

Main Picture

Cross T Bar Roofing Metal Forming Machinery 380V 50HZ 3 Phase

Enterprises Introduction

We, Friendship Machinery Co., Ltd, attaches great importance on technology innovation,progress has been made on scientific management as well as Co.,culture.Our manin products: Metal roof &wall panels machines, C&Z purlin machines drywall Stud-track forming machine,Metal decks machines,No- girder and Column curves forming machines,Guard rails forming machine,Downspout pipes forming machines and so on.

We can customize forming machine according to user's requirements.And we can provide professinal service,high quality,through design,and installation.

Warmly welcome to visit our factory no matter you are distibuters or end-users,and looking forward to cooperating with you for mutual benefits.
