Galvanized Steel Glazed Roll Forming Machine 300H Steel Weld Frame
Galvanized Steel Glazed Roll Forming Machine 300H Steel Weld Frame
Galvanized Steel Glazed Roll Forming Machine 300H Steel Weld Frame
Galvanized Steel Glazed Roll Forming Machine 300H Steel Weld Frame
Specifications
Brand Name :
JCX
Model Number :
Glazed Tile Roll Forming Machine
Certification :
ISO9001 CE
Place of Origin :
China
MOQ :
1 set
Price :
USD8000-USD12500 PER SET
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
30 SETS PER MONTH
Delivery Time :
20-30 working days
Packaging Details :
Sea worthy standard package: covered with plastic film, fixed into 20/40'gp container
Product name :
Glazed Tile Roll Forming Machine
After Warranty Service :
Line Support Video
After-sales Service Provided :
Online Support Video Technical Support
Warranty :
12 Months,and life long tracking service
Advantage :
Automatic Operation
Color :
Client's Request
Control box language :
Add Customer Request Language
Control system :
PLC(detla) System
Export port :
Tianjin Port
Need container :
1*40 Feet
Description

JCX 2022 Year popular sell 828 glazed roof tile roll forming construction machine tile making machinery

1. Glazed steel roll forming machine

Tile making machine is used in building constructions, which can using in roof and wall of Housing Construction ,Villa ,Factory, Warehouse, Theater, Hangar, Gymnasium, Exhibition hall.

2. Technical details of glazed steel roll forming machine

No.
Item 1 customized one
Description
1
Suitable Material
Color steel/Galvanized steel
2
Input Width
914mm
3
Effective width
762/609mm
4
Material Thickness
0.3-0.8mm
5
Forming speed
0-15m/min
6
Roller Stations
12row
7
Frame
300H steel weld
8
Middle plate
14mm
9
Spacer
seamless steel tube processing
10
Material of Roller
45# steel forged
11
Material of Shaft
70mm, 45#steel forged
12
Driven Motor +Hydraulic Station Power
3kw+3kw
13
Voltage
415v/50hz, three phraze
14
Oil Pump
Gear pump
15
Driving Mode
single chain 1 inch
16
Material of Cutter
Cr12
17
Heat treatment
HRC58-60℃
18
Cutting accuracy
±1 mm
19
Weight and size
L*W*H 6.5m *1.5m *1.6m 3000KGS

3. Main components of glazed steel roll forming machine

No.
Name
Unit
Qty.
1
Manual decoiler
set
1
2
Main forming machine
set
1
3
PLC control system
set
1
4
Hydraulic pump station
set
1
5
Output table
set
1

4. Production Flows

Uncoiling the sheet---Infeed guiding--Roll forming---Rectifying the straightness---Measure length---Cutting the panel--panels to the supporter (option: automatic stacker)

Galvanized Steel Glazed Roll Forming Machine 300H Steel Weld Frame

5. Advantages

· Germany COPRA software design

· 5 engineers with more than 20 years experience

· 30 professional technician

· 20 sets advanced CNC production lines on site

· Passionate Team

· Installation engineers can reach your factory within 6 days

· 1.5 years maintenance and whole life technical support

6. Application

The advantage of glazed steel sheet includes beautiful, classical appearance and grace taste. It is widely used in village, hotel, exhibition, vacation village, family construction and outdoor decorating.

Galvanized Steel Glazed Roll Forming Machine 300H Steel Weld Frame

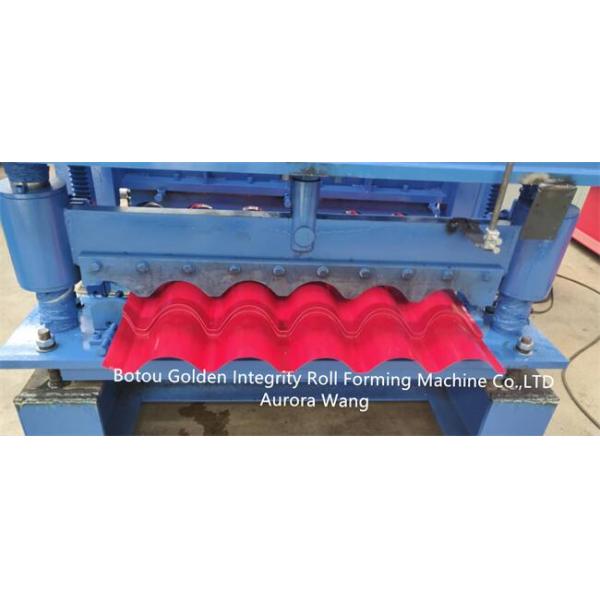

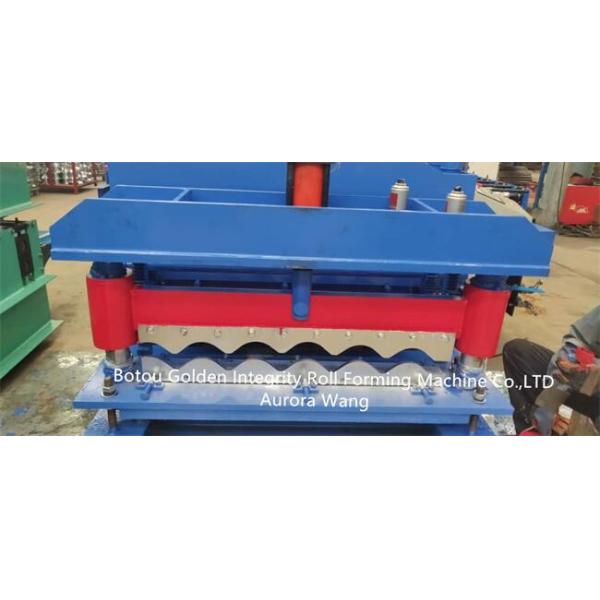

7. Product photo

Galvanized Steel Glazed Roll Forming Machine 300H Steel Weld Frame

Galvanized Steel Glazed Roll Forming Machine 300H Steel Weld Frame

8. FAQ

1. who are we?
We are based in Hebie, China, start from 2010,sell to Africa(20.00%),Domestic Market(20.00%),Southeast Asia(15.00%),South America(10.00%),North America(5.00%),Eastern Europe(5.00%),Oceania(5.00%),Mid East(5.00%),Central America(5.00%),South Asia(5.00%),Eastern Asia(2.00%),Western Europe(2.00%),Southern Europe(00.00%). There are total about 51-100 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Roof Sheet Roll Forming Machine,Wall Panel Roll Forming Machine,Highway Guardrail Plate Forming Machine,Floor Decking Sheet Rolling Machine,C Purlin Making Machine

4. why should you buy from us not from other suppliers?
1.Rich experience 2.High-quality after-sales service system 3.Brand and Qualification Guarantee 4.Technological innovation advantage

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
