C140 Light Gauge Steel Framing Machine For Animal Husbandry Building
C140 Light Gauge Steel Framing Machine For Animal Husbandry Building
C140 Light Gauge Steel Framing Machine For Animal Husbandry Building
C140 Light Gauge Steel Framing Machine For Animal Husbandry Building
Specifications
Brand Name :
JCX
Model Number :
C140 LGS FRAMING MACHINE
Certification :
ISO CE
Place of Origin :
Hebei China
MOQ :
1
Price :
42,000-48,000USD/set
Payment Terms :
L/C, T/T
Supply Ability :
1000sets per year
Delivery Time :
30-60 days
Packaging Details :
20GP SEA worthy package or pack by wooden box if LCL with other goods
After-sales Service Provided :
Engineers available to service machinery overseas
Roller :
DC53
Shaft :
50mm, 40Cr
PLC brand :
Mitsubishi
After Warranty Service :
Video technical support
color :
BLUE
use :
modular building
Encoder :
Omron
Description
Product Description

Fast construct large span C140 light gauge steel frame machine for animal husbandry building

Our C140 LGS Framing machine can use to make villa house from 1-8 floors. It also used in moden animal husbandry, Industrial plant construction etc.

Green Building is more and more popuar, as a trend all over the world. It's fast, eco-friendly than traditonal construction, and Fast installation.

Our C140 LGS FRAMING MACHINE ADVATANGES:

  1. Speed raise to 50m/min,
  2. Sixth gernation machine, system more stable after several years improvment.
  3. Memory function: power off and second day can work continue, no waste steel roll.
  4. New type print machine, One machine control 2 sets print machine, connecting with computer directly.
  5. Two in one decoiler, more stable, save space, better than manual normal type.
  6. Hydrulic station improved, low pressure, but larger power, extended machine life
  7. With automatic lubrication system
Profile drawing of our 140 LGS framing machine:
C140 Light Gauge Steel Framing Machine For Animal Husbandry Building
Machine picture for C140 lgs frame machine:
C140 Light Gauge Steel Framing Machine For Animal Husbandry Building
8 working positions (pipeline hole, web hole, small side cutting, fixed hole, chamfering, web shrinkage hole, shearing, bolt hole, etc.)

  1. Model 1 : service holeetc.
  2. Model 2 : web notch
  3. Model 3 : end truss
  4. Model 4 : triple web hole
  5. Model 5 : lip notch
  6. Model 6 : dimple
  7. Model 7 : swage
  8. Extra triple hole or edge cutting can be supplier if required.

Final channel

Total 8 working units, but we can also add punching dies as your requirements.

C140 Light Gauge Steel Framing Machine For Animal Husbandry Building

Parameters of c89 lgs framing machine

No. Item Description
1 Frame and punching dies Screw hole, chamfer, slot hole, flange cut, pipe hole, suspension, cutting
2 Suitable Material G300-G550Galvanzied coils or Aluzinc
3 Thickness 0.75-1.2mm( CAN ENLARGE TO 2mm)
4 Size 140*41mm
5 Feeding material width 230mm
6 Standard Producing speed 300-700m/h
7 Max producing speed 1500m/h
8 Main motor 7.5kw INVT BRAND
9 Hydraulic station 5.5kw
10 Voltage 380V 50Hz 3phases or customized
11 Hydraulic tank capacity 120L. ensure over 50%
12 Hydraulic station Vane pump.more stable, and low pressure with high strength

Components of lgs framing machine:
NO. Description Quantity (set) Remark
1 3 T Electric2 in 1 Decoiler And Leveling Device or Double head decoiler as oprtional 1 Put coils and straight the coil
2 Transmission and hydraulic system 1 Induction steel belt
3

C89 Roll Forming Machine

 1 main machine
4 Double print system 1 1 set, two pcs
5 Control system 1

6 Machine Run-Out Table 1 Drawing, you can produce yourself after you getting the machine
7 Spare parts and tool box 1 Full sets of necessary spare parts

Applications:

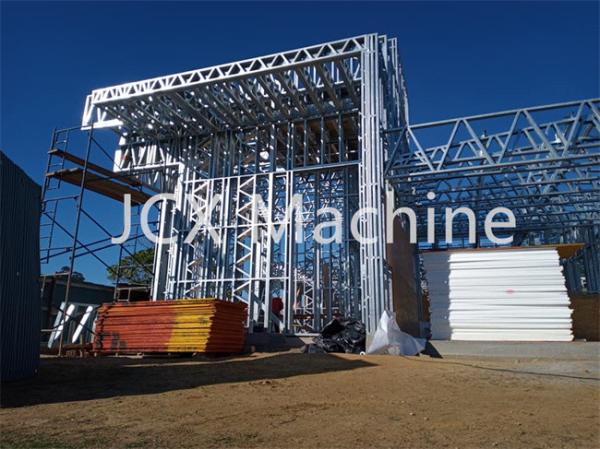

Our lgs steel framing machine can make house roof, floor, wall, truss all.

C140 Light Gauge Steel Framing Machine For Animal Husbandry Building

Automatic lubrication system

C140 Light Gauge Steel Framing Machine For Animal Husbandry Building

Packing & Delivery
Sea worthy standard package: covered with plastic film, fixed into 20'gp container
C140 Light Gauge Steel Framing Machine For Animal Husbandry Building
RFQ:
1. If your machine include software?
Answer: we can supply machine with or without software, it depends on your requirement.
2. Do you supply training?
Answer: yes, will supply clear manual book and guiding videos along with the machine, and we supply lifetime technogly support, any questions, we can open video to help you directly.
3. How long is the machine warranty?
Answer: 12 month since the machine departure.
4. Have you exported this machines abroad?
Answer: yes, we are leading company and have over 13 years export experance. and this lgs framing machine we have exported to Australia, Greece, Mexico, America, Mogolia etc.
5. Do you have certifications?
Answer: Yes, we have CE ISO certificates, which meet the international standards.
6. Can you make our logo on the machine?
Answer: yes. We can make machine with your Company Logo as required
Well your inquiry.
Paige
Sales mager of Golden Integrity Machine
