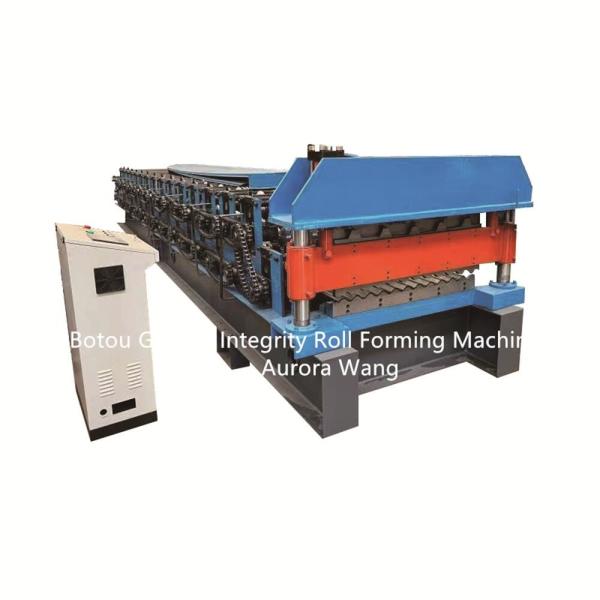

7.5Kw Steel Double Layer Roll Forming Machine ISO9001 CE Certification
7.5Kw Steel Double Layer Roll Forming Machine ISO9001 CE Certification
7.5Kw Steel Double Layer Roll Forming Machine ISO9001 CE Certification
7.5Kw Steel Double Layer Roll Forming Machine ISO9001 CE Certification
7.5Kw Steel Double Layer Roll Forming Machine ISO9001 CE Certification
7.5Kw Steel Double Layer Roll Forming Machine ISO9001 CE Certification
Specifications
Brand Name :
JCX
Model Number :
Double layer roll forming machine
Certification :
ISO9001 CE
Place of Origin :
China
MOQ :
1 set
Price :
USD8000-USD12500 PER SET
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
30 SETS PER MONTH
Delivery Time :
20-30 working days
Packaging Details :
Sea worthy standard package: covered with plastic film, fixed into 20/40'gp container
Product name :
Double Layer Roll Forming Machine
After Warranty Service :
Line Support
After-sales Service Provided :
Video Technical Support
Warranty :
12 Months,and life long tracking service
Advantage :
Automatic Operation
Color :
Client's Request
Control box language :
Add Customer Request Language
Control system :
PLC(detla) System
Export port :
Tianjin Port
Need container :
1*40 Feet
Description

JCX 2022 New Product Steel Double Layer Roll Forming Machine With High Quality

1. Double layer roll forming machine

This roof machine include the decoiler , feeding table , main machine , cutting device , plc control box , oil pump and receving table .
In order to supply the good quality machine to the client , our production department will test the machine again and again until it can work smoothly before shipping . To ensure that the client can use the machine directly once they receving it .

2. Technical details of double layer roll forming machine

The specification of the double layer roof sheet roll forming machinery
Roller
18 Rows
Material of the Cutting Blade
Cr12, Quenched treatment 58℃-60℃
Rolling Materials
45# forging steel with chromium plate
Diameter of the Roller
Φ70mm
Main Structure of the Machine
350H beams
Side Panel of Machine
16mm
Chain
1 Inch
Motor Power
7.5Kw
Pump Station Motor
4Kw
Productivity
8-12m/min
Thickness of the Plate
0.3-0.8mm
Touch Screen
Delta
Voltage
380V 50Hz 3 phases or as customer's need
Drive Mode
Chain driver
Suitable to Process
GI/GL/PPGI/PPGL/Aluminum coils

3. Main components of double layer roll forming machine

Double layer roll forming machine
Name
Quantity
Units
5T manual uncoiler (Hydraulic uncoiler)
1
Set
Adjustable feeding platform
1
Set
Roll forming system
1
Set
Plc cut to length
1
Set
Hydraulic system
1
Set
Delta Electronic Control System
1
Set
Supporter/Automatic Stacker
1
Set

4. Production Flows

Uncoiling the sheet---Infeed guiding--Roll forming---Rectifying the straightness---Measure length---Cutting the panel--panels to the supporter (option: automatic stacker)

7.5Kw Steel Double Layer Roll Forming Machine ISO9001 CE Certification

5. Advantages

· Germany COPRA software design

· 5 engineers with more than 20 years experience

· 30 professional technician

· 20 sets advanced CNC production lines on site

· Passionate Team

· Installation engineers can reach your factory within 6 days

· 1.5 years maintenance and whole life technical support

6. Application

The advantage of glazed steel sheet includes beautiful, classical appearance and grace taste. It is widely used in village, hotel, exhibition, vacation village, family construction and outdoor decorating.

7.5Kw Steel Double Layer Roll Forming Machine ISO9001 CE Certification

7. Product photo

7.5Kw Steel Double Layer Roll Forming Machine ISO9001 CE Certification

7.5Kw Steel Double Layer Roll Forming Machine ISO9001 CE Certification

8. FAQ

1. who are we?
We are based in Hebie, China, start from 2010,sell to Africa(20.00%),Domestic Market(20.00%),Southeast Asia(15.00%),South America(10.00%),North America(5.00%),Eastern Europe(5.00%),Oceania(5.00%),Mid East(5.00%),Central America(5.00%),South Asia(5.00%),Eastern Asia(2.00%),Western Europe(2.00%),Southern Europe(00.00%). There are total about 51-100 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Roof Sheet Roll Forming Machine,Wall Panel Roll Forming Machine,Highway Guardrail Plate Forming Machine,Floor Decking Sheet Rolling Machine,C Purlin Making Machine

4. why should you buy from us not from other suppliers?
1.Rich experience 2.High-quality after-sales service system 3.Brand and Qualification Guarantee 4.Technological innovation advantage

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
