220v Full Pneumatic Liquid Packaging Machine 1.0kw Yh-Qy50 / Y50 220mm
220v Full Pneumatic Liquid Packaging Machine 1.0kw Yh-Qy50 / Y50 220mm
220v Full Pneumatic Liquid Packaging Machine 1.0kw Yh-Qy50 / Y50 220mm
220v Full Pneumatic Liquid Packaging Machine 1.0kw Yh-Qy50 / Y50 220mm
220v Full Pneumatic Liquid Packaging Machine 1.0kw Yh-Qy50 / Y50 220mm
220v Full Pneumatic Liquid Packaging Machine 1.0kw Yh-Qy50 / Y50 220mm
Specifications
Brand Name :
Gracias
Model Number :
YH-QY50/Y50
Place of Origin :
China
MOQ :
One set
Price :
As discuss
Payment Terms :
TT50% AS DEPOSIT, REST AMOUNT SHOULD BE PAID BEFORE SHIPPING
Supply Ability :
50 sets per month
Delivery Time :
25-30 work days
Packaging Details :
Standard export packaging
Voltage :
220V 50/60Hz
Warranty :
12 months
Condition :
New
After-sales Service Provided :
Online support, Video technical support
System :
PLC
Description

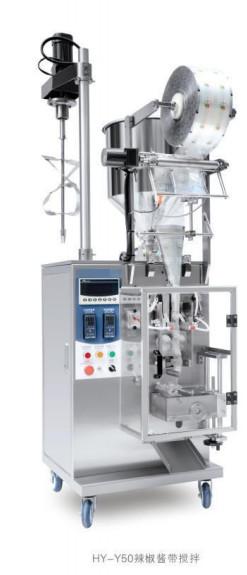

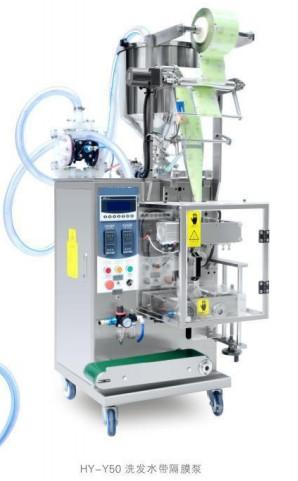

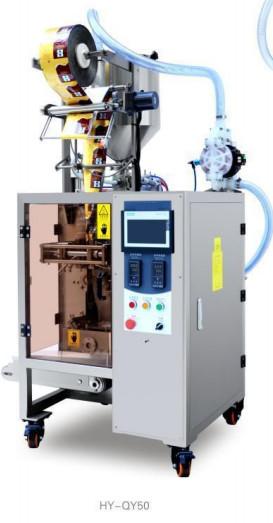

YH-QY50/Y50 Full Pneumatic Liquid Packaging Machine

220v Full Pneumatic Liquid Packaging Machine 1.0kw Yh-Qy50 / Y50 220mm220v Full Pneumatic Liquid Packaging Machine 1.0kw Yh-Qy50 / Y50 220mm220v Full Pneumatic Liquid Packaging Machine 1.0kw Yh-Qy50 / Y50 220mm







Applications:

  • Suitable for automatic packaging of liquid paste products in cosmetics,food, health care, pharmaceutical industry, such as: cleanser, skin cream, mask mud, repair cream, essence milk, liquid,lotion, shampoo.conditioner, hair mask, fog eyebrow milk, etc.; chili sauce, soy sauce,mustard sauce, salad dressing, tomato sauce,etc.;enzyme drink,enzyme jelly, energy supplement, etc.;syrup, red ginseng drink,antibacterial cream, dampness Cream, acne cream, etc.



Freature:



1.Using a rotary cutter to cut, by replacing the blade, the flat mouth and the serrated mouth effect can be realized, and the bag length cutting position is convenient to adjust.
2.Full pneumatic control including metering and bag making,simple operation, less wear parts in the later period, reducingparts replacement.
3.Material: The material contact part is made of SUS304stainless steel, which meets the requirements of GMP production.
4.The heat-generating parts and moving parts are hidden inthe protective cover and are safe to operate:
5.The equipment is equipped with casters for easy handling and movement.


Mechanical characteristics and product characteristics:




1.The equipment is easy to operate and easy to maintain.
2.The whole bracket is made of all stainless steel, non-outsourcedstainless steel.
3.The equipment is compatible, and different specifications can be realized by changing the mold.
4.Select a suitable metering pump body according to the material characteristics, and some materials can increase the fluidity of the constant temperature mixing tank to keep the material body.
5.Auxiliary equipment: loading machine + ribbon coding machine.




Parameter:


ModelnumberYH-QY50YH-Y50
Filling range1-50ml1-50ml
Sachet sizeW:30-100mm L:30-150mmW:30-100mm L:30-150mm
Max.film width220mm220mm
Sachet type3 sides/4 sides
Filling methodPiston pump/magnetic pumpPiston pump/magnetic pump
Capacity30-50 bags/min PPM30-50 bags/min PPM
Power voltage and consumption220V50-60HZ/1.0KW220V50-60HZ/1.0KW
Air pressure and consumption0.3m³/min 0.6-0.8Mpa0.3m³/min 0.6-0.8Mpa
Dimension(L*W*H)880*700*1750mm670*850*1655mm
Weight250KG200KG




220v Full Pneumatic Liquid Packaging Machine 1.0kw Yh-Qy50 / Y50 220mm
