1.75Kw Automatic Granule Packaging Machine Full Pneumatic Control 60 Hz K50
1.75Kw Automatic Granule Packaging Machine Full Pneumatic Control 60 Hz K50
1.75Kw Automatic Granule Packaging Machine Full Pneumatic Control 60 Hz K50
1.75Kw Automatic Granule Packaging Machine Full Pneumatic Control 60 Hz K50
Specifications
Brand Name :
Gracias
Model Number :
YH-QK50/K50
Place of Origin :
China
MOQ :
One set
Price :
As discuss
Payment Terms :
TT50% AS DEPOSIT, REST AMOUNT SHOULD BE PAID BEFORE SHIPPING
Supply Ability :
50 sets per month
Delivery Time :
25-30 work days
Packaging Details :
Standard export packaging
Voltage :
220V 50/60Hz
Warranty :
12 months
Condition :
New
After-sales Service Provided :
Online support, Video technical support
System :
PLC
Description

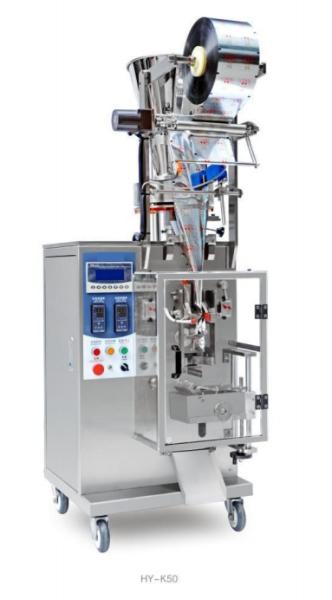

YH-QK50/K50 Automatic Granule Packaging Machine

1.75Kw Automatic Granule Packaging Machine Full Pneumatic Control 60 Hz K501.75Kw Automatic Granule Packaging Machine Full Pneumatic Control 60 Hz K50




Applications:

  • lt is suitable for automatic packaging of particles with good fluidity in food, health care and pharmaceutical industries, suchas instant coffee,solid beverage, fruit enzyme powder, Baoji pills, white sugar, granules, Chinese medicine granules, etc..



Freature:


1.Using a rotary cutter to cut, by replacing the blade, the flat mouth and the serrated mouth effect can be realized, and the bag length cutting position is convenient to adjust.
2.Full pneumatic control including metering and bag making,simple operation, less wear parts in the later period, reducingparts replacement.
3.Material: The material contact part is made of SUS304stainless steel, which meets the requirements of GMP production.
4.The heat-generating parts and moving parts are hidden inthe protective cover and are safe to operate:
5.The equipment is equipped with casters for easy handling and movement.


Mechanical characteristics and product characteristics:



1. The equipment is easy to operate and easy to maintain.

2. The whole bracket is made of all stainless steel, non-outsourced stainless steel.

3. The equipment is compatible, and different specifications can be realized by changing the mold.

4. Good fluidity materials, no dust,three-side seal design,electric high-speed models, capacity of 120 bags / minute.

5. Auxiliary equipment: loading machine + ribbon coding

machine.




Parameter:


Modelnumber YH-QK50 YH-K50
Filling range 1-50ml 1-50ml
Sachet size W:30-100mm L:30-150mm W:30-100mm L:30-150mm
Max.film width 220mm 220mm
Sachet type 3 sides/4 sides
Filling method Volumetric cups Volumetric cups
Capacity 30-60 bags/min PPM 30-130 bags/min PPM
Power voltage and consumption 220V50-60HZ/1.75KW 220V50-60HZ/1.75KW
Air pressure and consumption 0.3m³/min 0.6-0.8Mpa /
Dimension(L*W*H) 880*700*1750mm 670*850*1655mm
Weight 250KG 200KG



1.75Kw Automatic Granule Packaging Machine Full Pneumatic Control 60 Hz K50
