2 Heads Automatic Bottle Capping Machine , 30bpm Shrink Sleeve Label Machine
2 Heads Automatic Bottle Capping Machine , 30bpm Shrink Sleeve Label Machine
2 Heads Automatic Bottle Capping Machine , 30bpm Shrink Sleeve Label Machine
2 Heads Automatic Bottle Capping Machine , 30bpm Shrink Sleeve Label Machine
Specifications
Brand Name :
Gracias
Place of Origin :
China
MOQ :
one set
Price :
Negotiable
Payment Terms :
T/T, Western Union, L/C
Delivery Time :
30-50 work days
Packaging Details :
fit for shipping
Voltage :
380V 50Hz 3phases
Condition :
New
Control system :
PLC(imported Brand)
Warranty :
1 Year
After-sales service provided :
Online support
Color :
Silver
Description

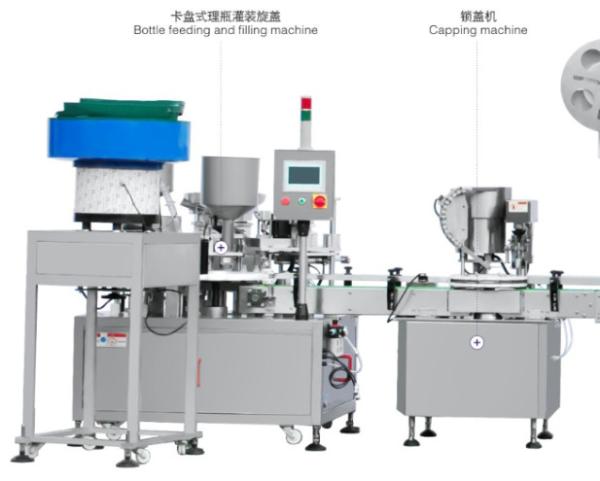

2 Heads Automatic Bottle Capping Machine 30bpm Shrink Sleeve Label Machine

Machine characteristics
1. It can adapt to all bottle and cap types within the standard size range.

2. Bottles and caps are automatically delivered to the vacuum chamber position, and then the vacuum chamber is formed, evacuated, and the cap is tightened, all of which are detected by the sensor and controlled by the program.

3. Tighten the lid only when the vacuum is pumped to the set value, so you don't have to worry about the production of unqualified cans on the capping machine.

4. Except that the conveyor chain is driven by a motor, the other power is driven by a PLC-controlled cylinder. The glass bottle is not equipped with height and width adjustment handwheels, which facilitates the adjustment of the height and left and right width of the labeling head to suit different products.

5. The labeling is driven by imported high-precision servo motor, labeling is accurate, and the stability is high.

Technical parameters of filling machine

Filling heads

2 heads
Applicable product range Sample provided by the customer(different diameter bottles need to change the chuck)
Filling capacity The total amount of 14g(different capacity to change the cup,the second filling capacity is 1-2g range adjustable)
Filling form Measuring cup quantitative powder filling(filling the need for cylinder pressure material,and then the second filling feeding)
Cover the way Vibration plate cover
Capping method Pneumatic screw cover
Speed 15-25bottles/min
Accuracy +-0.25g
Bottle taking Pneumatic manipulator folder bottle flip
Power 1.5KW/220V single phase
Air pressure 0.6-0.8MPa
Voltage AC220V,50/60Hz,single phase

Technical parameters of capping machine

Suitable for bottle specifications According to samples provided by customer(different specifications need to change the chuck)
Suitable for lid specifications According to samples provided by customer
Speed 20-30 bottles/min
