Garage Door Aluminium Insulated Roller Shutter 1.2mm 2.0mm Thickness
Garage Door Aluminium Insulated Roller Shutter 1.2mm 2.0mm Thickness
Garage Door Aluminium Insulated Roller Shutter 1.2mm 2.0mm Thickness
Garage Door Aluminium Insulated Roller Shutter 1.2mm 2.0mm Thickness
Specifications
Brand Name :
STARKING
Model Number :
SA80-4
Certification :
CE,ISO
Place of Origin :
CHINA
MOQ :
1 square meter
Price :
USD 45- USD 95 per square meter
Payment Terms :
L/C, T/T
Supply Ability :
5000 square meters a month
Delivery Time :
15-20 working days
Packaging Details :
wood box or bubble foam
Name :
Garage Door Aluminum Roller Shutter
Material :
single-skinned exruded aluminum
Color :
any RAl color
pitch height :
80mm pitch height
Max Height :
7,000mm
Max Width :
7,200mm
Thickness :
1.2mm/2.0mm
Description

Single-Skinned Extruded Aluminum Door With Micro-Perforated Holes For Garage Door

Product introduction

Aluminum roller shutter doors have revolutionized the industrial, residential and commercial door market with their durability, security, and aesthetic appeal.

Applications

  • Warehouses and Industrial Buildings

Aluminum roller shutter doors are widely used in warehouses and industrial buildings due to their robustness and security features.

Garage Door Aluminium Insulated Roller Shutter 1.2mm 2.0mm Thickness​

  • Garages and Parking Lots

Aluminum roller shutter doors are also commonly used in garages and parking lots. Their compact design and easy operation make them an ideal choice for areas with limited space.

Garage Door Aluminium Insulated Roller Shutter 1.2mm 2.0mm Thickness

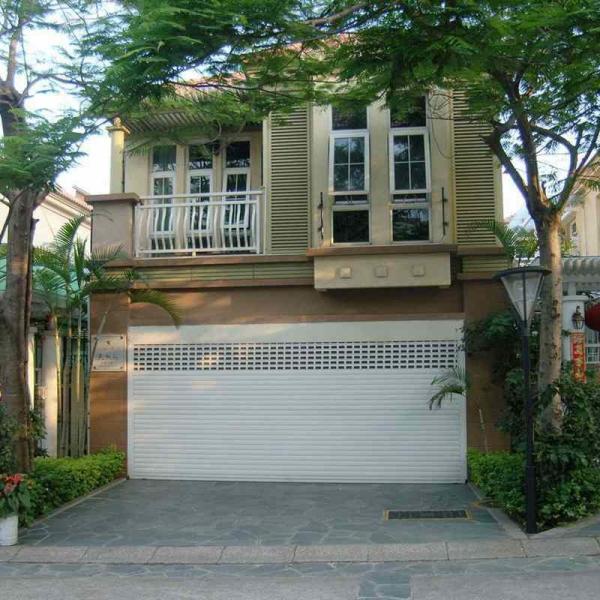

  • Residential Properties

Homeowners are increasingly choosing aluminum roller shutter doors to enhance the security and energy efficiency of their residences.

Benefits

No. Benefits Description
1 Durability

Made from premium-grade aluminum, these doors are resistant to corrosion, impact, and weather conditions.
2 Security

Security is a top priority for any building owner or occupant, and aluminum roller shutter doors provide an excellent solution.
3 Energy Efficiency

Aluminum roller shutter doors provide excellent insulation properties, helping to maintain a comfortable indoor environment while reducing energy costs.
4 Rust-proof

The aluminum roller shutter door is made of aluminum, which makes the door never rust, while the normal galvanized steel roller shutter door is easy to get rusty.
5 Ventilation available

The aluminum slats are punched to offer ventilation
6 Lightweight Compared to a galvanized steel rolling shutter, it's lightweight, so it's easy for transportation as well as installation.

Drawings

No. Item name No. Item name
1 Rubber weather seal 2 Aluminum bottom rail
3 Double-skinned solid aluminum slats 4 Single-skinned punched aluminum slats
5 single-skinned perforated aluminum slats 6 Single-skinned solid aluminum slats
7 plastic end clips 8 Double-skinned solid connecting slats
9 aluminum guide rail 10 brush strips
11 shaft/axle/barrel 12 bearing
13 left side plate/bracket 14 right side plate/bracket
15 side motor 16 push button
17 remote control 18 manual hoist chain

Technical Specification

Item number SA80-4
Material Single-skinned extruded Aluminum with mirco-peroforated holes
Size 80 mm pitch height, 1.2mm/2.0mm thickness
Weight 6.5KGS/m²,8.0 KGS/m²
Max Width*Height 7,200mm*7,000mm
Surface Treatment power coating
Color white/cream, any RAL color are available if needed

Certification

FAQ

1. How can I know the price exactly?

A: The price is based on your specific requirements, it is better to provide as much as possible information such as color, size, quantity, market location, and sales patterns, all of these would help us to quote the exact price.

2. What is the delivery time?

A: 20 days for the standard colors and 30 days for the customized. Also, it depends on the specifications and quantity of each order. Shipment time depends on the location of our customers.

3. What are your payment items?

A: Normally we accept 30% for deposit by T/T and the balance would be arranged before delivery. If you have any other suggestions, please contact us.
