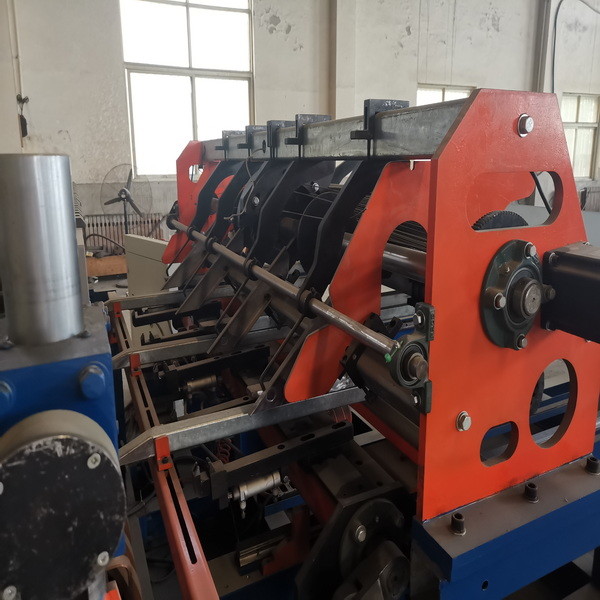

Galvanized Wire Dia 6mm CNC Spot Welder , 7.5KW Industrial Spot Welding Machine
Galvanized Wire Dia 6mm CNC Spot Welder , 7.5KW Industrial Spot Welding Machine
Specifications
Brand Name :
Huayang
Model Number :
R-DHW
Certification :
CE
Place of Origin :
Hebei, China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
20 sets/month
Delivery Time :
30 days
Packaging Details :
1.Machine will be covered with plastic film and fastened by steel wire in container. 2. Spare parts will be packed into carton box and fastened stable in container.
Product name :
Galvanized Wire Diameter Reinforcing 6mm CNC Spot Welding Machine
Feature :
Automatic Wire Feeding
Function :
fence panel
Nominal Voltage :
380v or Customized
Warp Wire :
Straightened Cut Wire
Weft wire :
Straightened Cut Wire
Nominal Power :
150KVA x 5
Welding Speed :
30-60 times/min
Motor Power :
7.5KW
Description

Galvanized Wire Diameter Reinforcing 6mm CNC Spot Welding Machine

1. Product description

Galvanized wire diameter reinforcing 6mm CNC spot welding machine is used for making panel mesh. The CRL cold-rolling lines are designed to produce smooth or ribbed cold-rolled steel wire for reinforcement or industrial applications. The final product obtained through semi-automatic horizontal or fully automatic vertical spoolers is wire in spools or in compact coil format with diameters that range from 4 mm to 16 mm, while the weight of the coils ranges from 2.5 tons to a maximum of 5 tons.

2. Technical parameter

Model HY-DHW-1500 HY-DHW-2000 HY-DHW-2500 HY-DHW-2800 HY-DHW-3300
Weld width(mm) 1500 2000 2500 2800 3300
Meshi trip(mm) Single trip 3000 and no limit on return
Std trans.spacing >=25mm-stepless adjustable
Std long.spacing >=50mm, and progressive increase by 50 >=100mm, and increase by 100
Std weld spots 31 41 51 27 32
Wire diameter(mm) 3.0-6.0 3.0-6.0 3.0-6.0 5.0-12.0 5.0-12.0
Weld speed(times/min 50-70 40-60 40-60 40-60 40-60
Trans material Straight bar/rod Straight bar
Long material Straight bar/rod
Control mode PLC programming servo motor stepper
Mesh diagonal error <=2
Mesh overall error <=2
Air pressure >=0.7
Weld material Cold drawn wire, galvanized wire, cold rolled ribbed steel


3. Application area

The galvanized wire diameter reinforcing 6mm CNC spot welding machine can be widely used in construction reinforcement, the ground for the tunnels, bridges, highway, airport and wharf, also in construction of wall body.

4. Advantages

a. The machine line automatic degree can be according to request. For the economical type, line wire and cross wire are pre strainghtened and cut to length. We are capable to produce fully automatic machine.

b. The weft wire of wire mesh welding machine feeding from the multi hopper which capacity is more over ten times than the traditional hopper.

c. We can design the welded wire mesh machine as your requirement.

d. Welding part can easily switch, which greatly improves the service life of machinery, maximum reduce the cost.

e. Synchronization control.
