2m Width BI Wire Roll Mesh Welding Machine 60times/Min Spot Mesh Wire
2m Width BI Wire Roll Mesh Welding Machine 60times/Min Spot Mesh Wire
Specifications
Brand Name :
Huayang
Model Number :
R-DHW
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
20 sets/month
Delivery Time :
30 days
Packaging Details :
1.Machine will be covered with plastic film and fastened by steel wire in container. 2. Spare parts will be packed into carton box and fastened stable in container.
Product name :
Automatic Two Meters Width Roll Mesh Welding Machine
Final product :
Roll mesh
Wire diameter :
0.45-2.6 mm
Key Selling Points :
Patented Product
Condition :
New
Welding Speed :
40-60times/min
Wire materials :
GI/SS/BI wire
Applicable Industries :
Manufacturing Plant, Construction works
Machinery Test Report :
Provided
Description

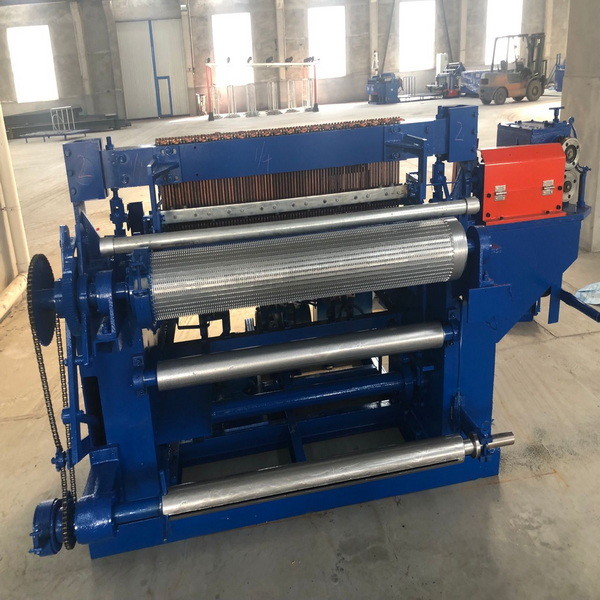

Automatic Two Meters Width Roll Mesh Welding Machine

1. Product description

Automatic two meter width roll mesh welding machine is used for making wire mesh. The finished products are rolled mesh. This machine is full automatic to feeding cross wire and line wires. Raw material: low-carbon steel wire, galvanizing wire or stainless steel wire. The machine with low noise, stable working, easy to operation feature .

2. Technical parameter

Model Mesh width Minimum mesh size (inch) Wire diameter(mm) Welding speed (rows/min) Roll mesh length (m) Other available mesh size (inch)
R- DHW2 2m 1/2x1/2 0.45-0.85 90-120 130 1/2x1, 1x1/2, 1x1, 2x2
R- DHW2 2m 1/2x1/2 0.6-1.3 90-120 110 1/2x1, 1x1/2, 1x1, 2x2
R- DHW2 2m 1/2x1/2 0.8-1.6 80-90 100 1/2x1, 1x1/2, 1x1, 2x2
R- DHW2 2m 1x1 0.45-0.85 90-120 130 1x2, 2x1, 2x2, 2x4
R- DHW2 2m 1x1 0.6-1.3 90-110 110 1x2, 2x1, 2x2, 2x4
R- DHW2 2m 1x1 0.8-1.6

90-110

 100 1x2, 2x1, 2x2, 2x4
R- DHW2 2m 1x1 1.4-2.6 80-90 80 1x2, 2x1, 2x2, 2x4


3. Application area

The automatic two meter width roll mesh welding machine is used for the production of Industrial mesh and wire fence. The automatic two meter width roll mesh welding machine are used for the production of dimensionally accurate meshwork for a wide variety of applications. Wire mesh may be used to produce shop, exhibition- and warehouse equipment as well as trays for domestic and overseas appliances.

4. Advantages

a. It installs 8-level adjustable welding transformers to suit different wire diameters.

b. Both longitude wire and weft wire can be fed from wire coils automatically.


c. The mesh length can be set on the counter.


d. The electric current, line and weft opening are adjustable.

e. It has adjustable middle cutter to cut mesh in different size.

2m Width BI Wire Roll Mesh Welding Machine 60times/Min Spot Mesh Wire
