Huayang Conveying Roll Mesh Welding Machine Galvanized Wire Adjusted Transformer
Huayang Conveying Roll Mesh Welding Machine Galvanized Wire Adjusted Transformer
Specifications
Brand Name :
Huayang
Model Number :
R-DHW
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
20 sets/month
Delivery Time :
30 days
Packaging Details :
1.Machine will be covered with plastic film and fastened by steel wire in container. 2. Spare parts will be packed into carton box and fastened stable in container.
Product name :
Automatic blue galvanized wire roll mesh welding machine
Cooling system :
Water/Air cooling
Wire diameter :
0.45-2.6 mm
Pitch :
1/2", 1", 2", 3", 4"
Raw material :
Galvanized wire
Voltage :
380V/50HZ
Speed :
100 rows/min
Color :
Blue, green, orange or customized
Application :
Construction
Payment terms :
30% T/T deposit, 70% balance before shipment
Description

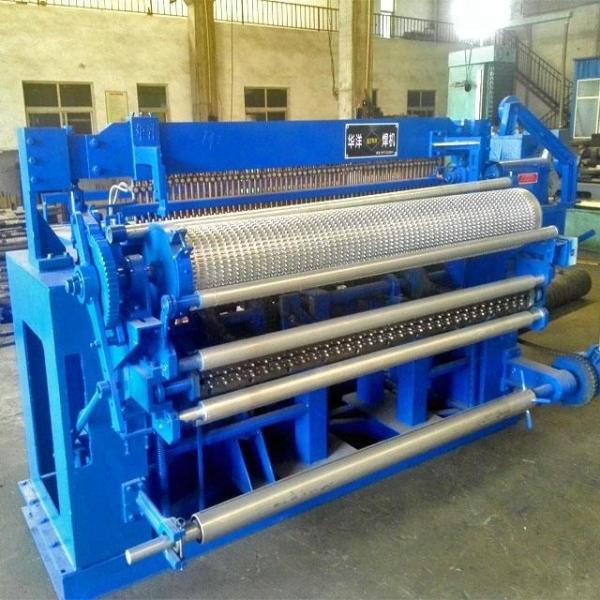

Galvanized Wire Orange Roll Mesh Welding Machine

1. Product description

Galvanized wire orange roll mesh welding machine is used for making wire mesh. The raw material is galvanized wire. Galvanized wire orange roll mesh welding machine is our new type of steel wire mesh grid machine. The popular grid cell sizes are 1/2”, 1”, 2”, 12.5mm, 25mm, 50mm, 100mm, 150mm, etc. but also it is equipped with an inverter to control the speed and new type motor&reducer, with a good working performance.

2. Technical parameter

Model Mesh width Minimum mesh size (inch) Wire diameter(mm) Welding speed (rows/min) Roll mesh length (m) Other available mesh size (inch)
R- DHW1 1m 1/2x1/2 0.45-0.85 90-120 130 1/2x1, 1x1/2, 1x1, 2x2
R- DHW1 1m 1/2x1/2 0.6-1.3 90-120 110 1/2x1, 1x1/2, 1x1, 2x2
R- DHW1 1m 1/2x1/2 0.8-1.6 80-90 100 1/2x1, 1x1/2, 1x1, 2x2
R- DHW1 1m 1x1 0.45-0.85 90-120 130 1x2, 2x1, 2x2, 2x4
R- DHW1 1m 1x1 0.6-1.3 90-110 110 1x2, 2x1, 2x2, 2x4
R- DHW1 1m 1x1 0.8-1.6

90-110

 100 1x2, 2x1, 2x2, 2x4
R- DHW1 1m 1x1 1.4-2.6 80-90 80 1x2, 2x1, 2x2, 2x4


3. Application area

The galvanized wire orange roll mesh welding machine is used for the production of dimensionally accurate meshwork for a wide variety of applications. Mesh welding machine for galvanized wire is used to make construction mesh, wall mesh, animal cage, mining etc.

4. Advantages

a. High speed mesh cutting system.

b. Automatic mesh turning, stacking and conveying system.


c. We can design the machine according to your wire diameter,mesh hole size and so on.

d. One time two or three mesh rolls can be produced.

e. The welding transformers can be adjusted for different wire diameters.
