7ft Width Dimetric Mesh Drive Shaft Welding Machine 30rolls/8hrs Horizontal
7ft Width Dimetric Mesh Drive Shaft Welding Machine 30rolls/8hrs Horizontal
Specifications
Brand Name :
Huayang
Model Number :
R-DHW
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
20 sets/month
Delivery Time :
30 days
Packaging Details :
1.Machine will be covered with plastic film and fastened by steel wire in container. 2. Spare parts will be packed into carton box and fastened stable in container.
Product name :
Automatic Seven Feet Width Roll Drive Shaft Welding Machine
Core Components :
Engine, Gearbox, Motor, Gear
Color :
Blue, green, orange or per request
Mesh shape :
Square
Mesh Type :
in Roll
Style :
Horizontal
Mesh Size :
1/4′′-2.5′′
Production capacity :
30-100rolls/8hours
Application :
Construction
Pitch :
1/2", 1", 2", 3", 4"
Description

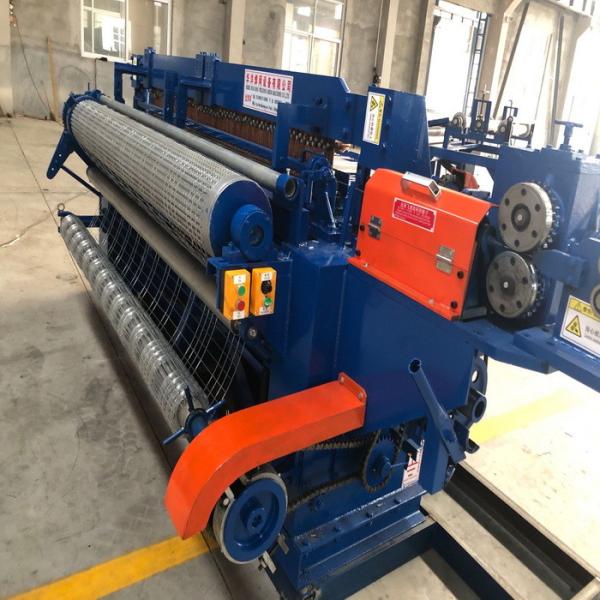

Automatic Seven Feet Width Roll Drive Shaft Welding Machine

1. Product description

The automatic seven feet width roll drive shaft welding machine is used for making wire mesh. The related components of line space are adjustable, can be set to a different grid. Order to adapt to the user's home power transformer capacity and reduce the impact of current, welding power electronics control a welding points control transmission separately, when welding of the same row of weft, the welding transformer separate work. Welding power electronics control system adopts synchronous control technique, welding time and sub-control welding are digital IC, the control precision high-performance and stability.

2. Technical parameter

Model Mesh width Minimum mesh size (inch) Wire diameter(mm) Welding speed (rows/min) Roll mesh length (m) Other available mesh size (inch)
R- DHW 7feet 1/2x1/2 0.6-1.3 90-120 110 1/2x1, 1x1/2, 1x1, 2x2
R- DHW 7feet 1/2x1/2 0.8-1.6 80-90 100 1/2x1, 1x1/2, 1x1, 2x2
R- DHW 7feet 1x1 0.6-1.3 90-110 110 1x2, 2x1, 2x2, 2x4
R- DHW 7feet 1x1 0.8-1.6

90-110

 100 1x2, 2x1, 2x2, 2x4
R- DHW 7feet 1x1 1.4-2.6 80-90 80 1x2, 2x1, 2x2, 2x4

3. Application area

The automatic seven feet width roll drive shaft welding machine is extensively used in production of dimensionally accurate meshwork for a wide variety of applications. Wire mesh may be used to produce shop, exhibition- and warehouse equipment as well as trays for domestic and overseas appliances.

4. Advantages

a. This machine adopts PLC control technique, both separate-phases welding and welding time composed of digital and integrated electric circuit, more intelligent and rational, once pressing, and separate welding.

b.It adopts sealed &water cooling welding transformers, the scoria can not easily goes in.

c. Increased cost-effectiveness and reduced staffing requirements.

d. We can provide free accessories for one year.

e. Welding using a new type of high efficient welding net transformer.
