Touch Screen Diameter 0.45-0.85mm Wire Mesh Welder
Touch Screen Diameter 0.45-0.85mm Wire Mesh Welder
Specifications
Brand Name :
Huayang
Model Number :
R-DHW
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
20 sets/month
Delivery Time :
30 days
Packaging Details :
1.Machine will be covered with plastic film and fastened by steel wire in container. 2. Spare parts will be packed into carton box and fastened stable in container.
Product name :
Diameter 0.45-0.85mm Wire Mesh Welding Machine
Warranty :
1 year
Final product :
Roll mesh
Usage :
Produce Wire Mesh
Electrodes :
Single or double row
Key Selling Points :
Long Service Life, Easy to Operate
Welding Speed :
90-100times/min
Voltage :
220V/380V/415V/440V
Color :
Blue, green, orange or per request
Minimum mesh size :
12.7mm
Description

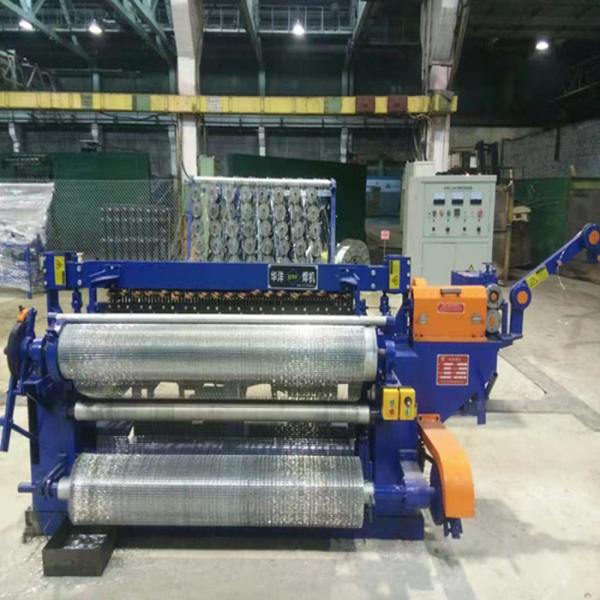

Diameter 0.45-0.85mm Wire Mesh Welding Machine

1. Product description

Diameter 0.45-0.85mm Wire Mesh Welding Machine is used for making wire mesh. This is automatic wire mesh welding machine line for the changeable diameter. PLC controlled system and touch screen make the machine line easy to operation. All the components used are with famous brand both aboard and at home. They guarantee the machine line has perfect performance and high quality as wall as long living life.

2. Technical parameter

Model Mesh width Minimum mesh size (inch) Wire diameter(mm) Welding speed (rows/min) Roll mesh length (m) Other available mesh size (inch)
R- DHW 1-2.5m 1/2x1/2 0.6-1.3 90-120 110 1/2x1, 1x1/2, 1x1, 2x2
R- DHW 1-2.5m 1/2x1/2 0.8-1.6 80-90 100 1/2x1, 1x1/2, 1x1, 2x2
R- DHW 1-2.5m 1x1 0.6-1.3 90-110 110 1x2, 2x1, 2x2, 2x4
R- DHW 1-2.5m 1x1 0.8-1.6

90-110

 100 1x2, 2x1, 2x2, 2x4
R- DHW 1-2.5m 1x1 1.4-2.6 80-90 80 1x2, 2x1, 2x2, 2x4

3. Application area

Diameter 0.45-0.85mm Wire Mesh Welding Machine is controlled by PLC system. It can be widely used in mining, petroleum, chemistry, food, medicine, machine manufacturing industry. It is used for machine protection for the above industries.

4. Advantages

a. This machine adopts PLC control technique, both separate-phases welding and welding time composed of digital and integrated electric circuit, more intelligent and rational, once pressing, and separate welding.

b.Server motor solves the problem of one net plate with different mesh size, and the system adopts PLC control.

c. Line wire loop and balance system to ensure wire mesh accuracy.
