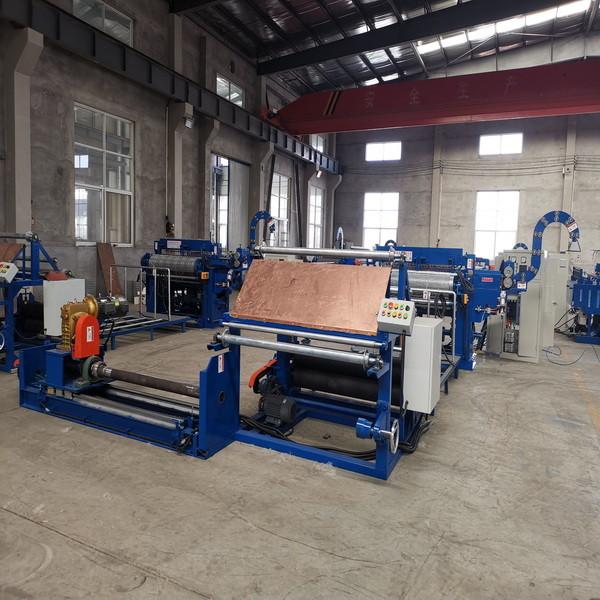

Huayang 440V Stainless Steel Welded Mesh , 5ft Width Roll Welding Machine
Huayang 440V Stainless Steel Welded Mesh , 5ft Width Roll Welding Machine
Specifications
Brand Name :
Huayang
Model Number :
L-DHW
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
$8000-$16000/set
Payment Terms :
T/T
Supply Ability :
60 sets/month
Delivery Time :
60 days
Packaging Details :
1.Machine will be covered with plastic film and fastened by steel wire in container. 2. Spare parts will be packed into carton box and fastened stable in container.
Product name :
Automatic Five Feet 440V Roll Mesh Welding Machine
Mesh width :
1-2.5m
Wire diameter :
0.45-2.6mm
Mesh size :
6.35-100mm
Application :
Construction Building Breeding Poultry Cage Fence
Speed :
100 rows/min
Color :
Blue, green, red or customized
Machine type :
Roll forming machine
Nominal voltage :
380v 3 phase electric 50Hz
Power :
85KVAX5 set
Description

Automatic Five Feet 440V Roll Mesh Welding Machine

1. Product description

Automatic five feet 440v roll mesh welding machine is used for making wire mesh. Welding system uses servo motor control, work accurately and use process does not produce sludge, has little effect on the environment. All key components are well-known brands. And we have CE certification. Wire alignment and length by integrated design, and the use of PLC control, easy to operate.

2. Technical parameter

Model Mesh width Minimum mesh size (inch) Wire diameter(mm) Welding speed (rows/min) Roll mesh length (m) Other available mesh size (inch)
R- DHW 1-2.5m 1/2x1/2 0.6-1.3 90-120 110 1/2x1, 1x1/2, 1x1, 2x2
R- DHW 1-2.5m 1/2x1/2 0.8-1.6 80-90 100 1/2x1, 1x1/2, 1x1, 2x2
R- DHW 1-2.5m 1x1 0.6-1.3 90-110 110 1x2, 2x1, 2x2, 2x4
R- DHW 1-2.5m 1x1 0.8-1.6 90-110 100 1x2, 2x1, 2x2, 2x4
R- DHW 1-2.5m 1x1 1.4-2.6 80-90 80 1x2, 2x1, 2x2, 2x4

3. Application area

The automatic five feet 440v roll mesh welding machine is used in the fields of industry , agriculture, farming, breeding, construction, transport, mining and other areas. Machines protective shelter, animal and livestock fence, landscaped fence,retaining Window column, crossing fences, poultry cages, egg baskets, food basket, wastebasket and decoration.

4. Advantages

a. It has adjustable middle cutter to cut mesh in different size.

b. High stability ,low noise, automatically straightening, automatically feeding wire .

c. The welding speed is fast and it is easy to learn and operate. Only two operators are enough.

d. The line wire is fed from coils; the cross wire is pre-cut, fed from hopper driven by step motor.

e. This machine adopts PLC control technique, both separate-phases welding and welding time composed of digital and integrated electric circuit, more intelligent and rational, once pressing, and separate welding.
