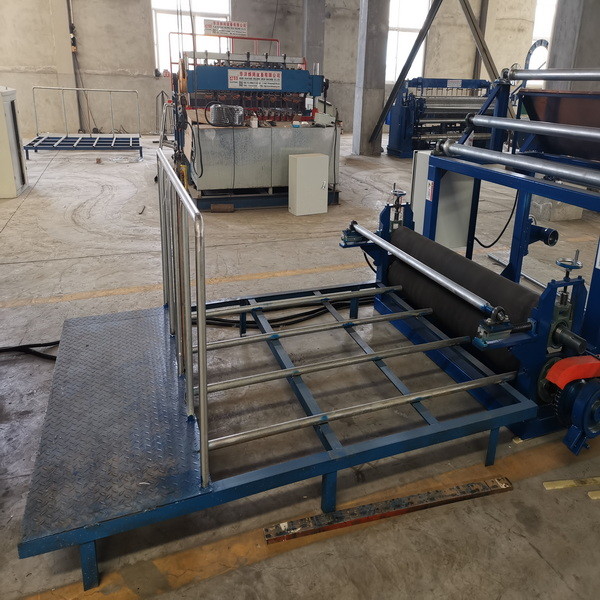

Huayang Antiacid Roll Mesh Welding Machine , Wire Dia 2.6mm Stainless Welding Machine
Huayang Antiacid Roll Mesh Welding Machine , Wire Dia 2.6mm Stainless Welding Machine
Specifications
Brand Name :
Huayang
Model Number :
R-DHW
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
20 sets/month
Delivery Time :
30 days
Packaging Details :
1.Machine will be covered with plastic film and fastened by steel wire in container. 2. Spare parts will be packed into carton box and fastened stable in container.
Product name :
Wire Diameter 1.4-2.6mm Roll Stainless Steel Spot Welding Machine
Advantage :
High Welding Speed
Color :
Blue, green, orange or per request
Condition :
New
Final product :
Roll mesh
Minimum mesh size :
12.7mm
Wire Diameter :
0.45 - 2.6 mm
Warranty :
12 Months After Installation
Automation :
Fully or Semi Automatic
Hole size :
1''-4''(mm)
Description

Wire Diameter 1.4-2.6mm Roll Stainless Steel Spot Welding Machine

1. Product description

Wire diameter 1.4-2.6mm roll stainless steel spot welding machine is used for making wire mesh. The feature of the machine is saving materials and high capacity. The button switches to start and stop machine easily. The wire diameter 1.4-2.6mm roll stainless steel spot welding machine can be quick and easy roll extraction from the machine. Sending wire with full automatic, applicable to low-carbon steel wire body machine, design reasonable, less noise, easier operate, non-polar adjust the number of welding.

2. Technical parameter

Model Mesh width Minimum mesh size (inch) Wire diameter(mm) Welding speed (rows/min) Roll mesh length (m) Other available mesh size (inch)
R- DHW 1-2.5m 1/2x1/2 0.6-1.3 90-120 110 1/2x1, 1x1/2, 1x1, 2x2
R- DHW 1-2.5m 1/2x1/2 0.8-1.6 80-90 100 1/2x1, 1x1/2, 1x1, 2x2
R- DHW 1-2.5m 1x1 0.6-1.3 90-110 110 1x2, 2x1, 2x2, 2x4
R- DHW 1-2.5m 1x1 0.8-1.6

90-110

 100 1x2, 2x1, 2x2, 2x4
R- DHW 1-2.5m 1x1 1.4-2.6 80-90 80 1x2, 2x1, 2x2, 2x4

3. Application area

The wire diameter 1.4-2.6mm roll stainless steel spot welding machine is used to interior decoration, arts and crafts, anticorrosion, poultry breeding and other industries. Common uses for welded wire mesh, or steel mesh include: fencing panels, wire partitions, wire container panels, wire baskets, animal cages, enclosure works, screens, security panels, shelving, signage, stairways/treads, fishing traps and concrete reinforcement.

4. Advantages

a. We can provide detailed installation videos, manuals, electrical schemes, layouts to help your machine installation.

b. Line wire vertical straightening system to provide high quality.

c. The middle cutter and sider cutter can be adjusted randomly to make two mesh rolls at same time.

d.Our machine can automatically dischare wire mesh.

e. Electrode lift system to extend electrode life.
