100times/Min Separating Timely Welding Roll Spot Welder Huayang Low Carbon Steel Wire
100times/Min Separating Timely Welding Roll Spot Welder Huayang Low Carbon Steel Wire
Specifications
Brand Name :
Huayang
Model Number :
R-DHW
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
20 sets/month
Delivery Time :
30 days
Packaging Details :
1.Machine will be covered with plastic film and fastened by steel wire in container. 2. Spare parts will be packed into carton box and fastened stable in container.
Product name :
Automatic Green Roll Stainless Steel Spot Welding Machine
Advantage :
High Welding Speed
Power Supply :
Three phase four electric
Suitable wire to the machine :
Low carbon steel wire
Mechanical Specifications :
According to Customer Requirement
Port :
Tianjin, China
Rated Capacity :
120kva
Wire Diameter :
0.45 - 2.6 mm
Welding Speed :
60-100times/min
Description

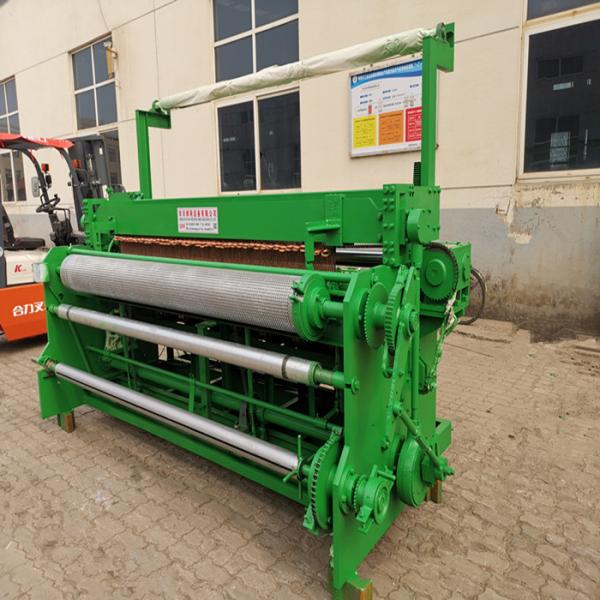

Automatic Green Roll Stainless Steel Spot Welding Machine

1. Product description

Automatic green roll stainless steel spot welding machine is used for making wire mesh. You can use Steel wire coils of drawn wire or wire rod as a continous wire input system for the length wires. Fort he Cross wires you may need a wire straightening & cutting machine which we also provide. You can also adjust the welding electrodes (welding pins) in order to produce different mesh holes.

2. Technical parameter

Model Mesh width Minimum mesh size (inch) Wire diameter(mm) Welding speed (rows/min) Roll mesh length (m) Other available mesh size (inch)
R- DHW 1-2.5m 1/2x1/2 0.6-1.3 90-120 110 1/2x1, 1x1/2, 1x1, 2x2
R- DHW 1-2.5m 1/2x1/2 0.8-1.6 80-90 100 1/2x1, 1x1/2, 1x1, 2x2
R- DHW 1-2.5m 1x1 0.6-1.3 90-110 110 1x2, 2x1, 2x2, 2x4
R- DHW 1-2.5m 1x1 0.8-1.6

90-110

 100 1x2, 2x1, 2x2, 2x4
R- DHW 1-2.5m 1x1 1.4-2.6 80-90 80 1x2, 2x1, 2x2, 2x4

3. Application area

The automatic green roll stainless steel spot welding machine can be widely usded in algriculture. The machine produce the wire mesh. The people can use the wire mesh to make animal cages. Such as: chicken cage, dog cage, rabbit cage, etc. It is easy operation and economical.

4. Advantages

a. Rolling the mesh and stop welding automatically only setting the length by counter in advance.

b. We use variable frequency from Schneider Siemens to control motor for easy maintenance.

c. The use of separating timely welding, to reduce the load power and achieve energy-efficient.

d. The mesh roll length can be set by counter switch on the control panel.

e. We are engaged in wire mesh welding machine for more than 20 years, providing you with the most professional knowledge and the most suitable machine.
