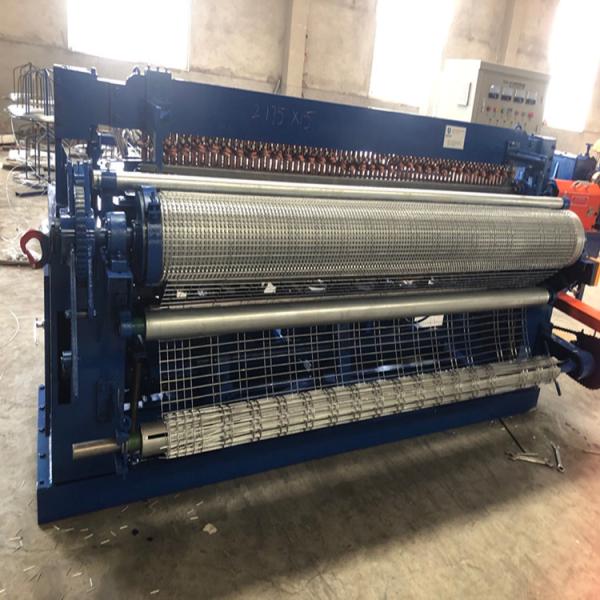

Huayang 7ft Wire Mesh Welding Machine 100mm Distance High Welding Speed
Huayang 7ft Wire Mesh Welding Machine 100mm Distance High Welding Speed
Specifications
Brand Name :
Huayang
Model Number :
R-DHW
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
20 sets/month
Delivery Time :
30 days
Packaging Details :
1.Machine will be covered with plastic film and fastened by steel wire in container. 2. Spare parts will be packed into carton box and fastened stable in container.
Product name :
Automatic Seven Feet Width Wire Mesh Welding Machine
Wire diameter :
0.45-2.6 mm
Mesh size :
1"
Voltage :
410V/50HZ
Speed :
90 rows/min
Color :
Blue, green, orange or as your request
Advantage :
High Welding Speed
Warranty :
1 Year
Line Wire Distance :
6.35-100 mm
Raw material :
Galvanized wire, black wire,stainless steel wire
Description

Automatic Seven Feet Width Wire Mesh Welding Machine

1. Product description

Automatic seven feet width wire mesh welding machine is used for making wire mesh. The wire diameter is from 0.45-2.6mm. The minimum mesh size is 1/2 inch. We have more than 20 years experiece in the automatic black coiled wire roll mesh welding machine. The features are easy handling, improve production efficiency and reduce labor costs. Welding host, an alarm device that can improve the safety level and reduce the failure rate. The greatest degree to ensure the machine to run smoothly.

2. Technical parameter

Model Mesh width Minimum mesh size (inch) Wire diameter(mm) Welding speed (rows/min) Roll mesh length (m) Other available mesh size (inch)
R- DHW 7feet 1/2x1/2 0.45-0.85 90-120 130 1/2x1, 1x1/2, 1x1, 2x2
R- DHW 7feet 1/2x1/2 0.6-1.3 90-120 110 1/2x1, 1x1/2, 1x1, 2x2
R- DHW 7feet 1/2x1/2 0.8-1.6 80-90 100 1/2x1, 1x1/2, 1x1, 2x2
R- DHW 7feet 1x1 0.45-0.85 90-120 130 1x2, 2x1, 2x2, 2x4
R- DHW 7feet 1x1 0.6-1.3 90-110 110 1x2, 2x1, 2x2, 2x4
R- DHW 7feet 1x1 0.8-1.6

90-110

 100 1x2, 2x1, 2x2, 2x4
R- DHW 7feet 1x1 1.4-2.6 80-90 80 1x2, 2x1, 2x2, 2x4


3. Application area

The automatic seven feet width wire mesh welding machine allow you to produce rolled wire mesh. The welding machine is for industrial wire goods. Leading manufacturers of wire products are using galvanized iron wire green roll mesh welding machine.It is for the flexible and economical manufacturing of wire mesh products.


4. Advantages

a. At the same time, the machine is also equipped with automatic cutting mesh machine, when the machine finishes the mesh length according to the setting parameters, the mesh will be cut by the cutting mesh machine automatically.

b. Upgrade of other components available at any time.

c. Good quality and famous brand motor and gearbox, equipped with inverter.


d. Only need one worker to operate this machine.

e. We use high quality chromised copper electrodes.They can be longer service life.
