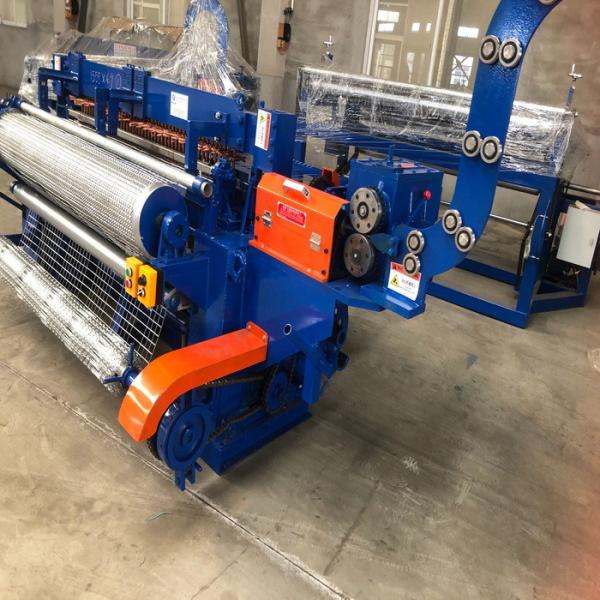

100rows/Min Transforming Wire Mesh Manufacturing Machine , 130mm Length Wire Welding Machinery
100rows/Min Transforming Wire Mesh Manufacturing Machine , 130mm Length Wire Welding Machinery
Specifications
Brand Name :
Huayang
Model Number :
R-DHW
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
20 sets/month
Delivery Time :
30 days
Packaging Details :
1.Machine will be covered with plastic film and fastened by steel wire in container. 2. Spare parts will be packed into carton box and fastened stable in container.
Product name :
Servo Motor Galvanized Wire Mesh Welding Machine
Pitch :
1/2", 1", 2", 3", 4"
Voltage :
380V/50HZ
Speed :
100 rows/min
Application :
Construction
Warranty :
1 Year
Weight :
2500kg
Key Selling Points :
Servo motor
Applicable Industries :
Retail, Other
Color :
Customer's Request
Description

Servo Motor Galvanized Wire Mesh Welding Machine

1. Product description

Servo motor galvanized wire mesh welding machine is used for making wire mesh. Wire coils are mounted on dedicated pay-offs for Line wire feeding.Dedicated tension and missing wire control device is helping keep wires nicely separated and easy to control.Wires are then advanced by the second set of Servo – Motorized rollers, through the vertical straighteners, into the welding machine!


2. Technical parameter

Model Mesh width Minimum mesh size (inch) Wire diameter(mm) Welding speed (rows/min) Roll mesh length (m) Other available mesh size (inch)
R- DHW 1-2.5m 1/2x1/2 0.45-0.85 90-120 130 1/2x1, 1x1/2, 1x1, 2x2
R- DHW 1-2.5m 1/2x1/2 0.6-1.3 90-120 110 1/2x1, 1x1/2, 1x1, 2x2
R- DHW 1-2.5m 1/2x1/2 0.8-1.6 80-90 100 1/2x1, 1x1/2, 1x1, 2x2
R- DHW 1-2.5m 1x1 0.45-0.85 90-120 130 1x2, 2x1, 2x2, 2x4
R- DHW 1-2.5m 1x1 0.6-1.3 90-110 110 1x2, 2x1, 2x2, 2x4
R- DHW 1-2.5m 1x1 0.8-1.6

90-110

 100 1x2, 2x1, 2x2, 2x4
R- DHW 1-2.5m 1x1 1.4-2.6 80-90 80 1x2, 2x1, 2x2, 2x4


3. Application area

The servo motor galvanized wire mesh welding machine is used for roll mesh welding line. The servo motor galvanized wire mesh welding machine can be widely used in algriculture. The machine produce the wire mesh. The people can use the wire mesh to make animal cages. Such as: chicken cage, dog cage, rabbit cage, etc. It is easy operation and economical.

4. Advantages

a. The feeding of weft wire adopts the patent technology of wire feeding wheel, make the feeding of weft wire more accurate and avoid the problem of leak wire or double wire.


b. The main frame is made of thick steel plate and structural steel, which is more reliable and fastness.


c. We use intellectual property transformer with copper core, with superior quality.


d. This machine is fully automatic to feed wires, weld mesh, cut edge and roll mesh.

e. We are engaged in wire mesh welding machine for more than 20 years, providing you with the most professional knowledge and the most suitable machine.
