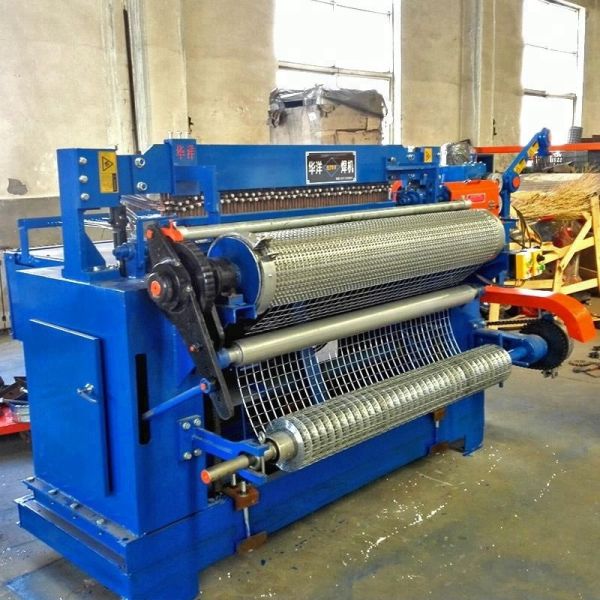

Huayang 2T Wire Mesh Welder , 5kw Wire Mesh Welding Machine Straightening
Huayang 2T Wire Mesh Welder , 5kw Wire Mesh Welding Machine Straightening
Specifications
Brand Name :
Huayang
Model Number :
R-DHW
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
20 sets/month
Delivery Time :
30 days
Packaging Details :
1.Machine will be covered with plastic film and fastened by steel wire in container. 2. Spare parts will be packed into carton box and fastened stable in container.
Product name :
Water Cooling Transformer Roll Mesh Welding Machine
Mesh width :
7 feet
Warranty :
1 year
Speed :
90 rows/min
Mesh roll length :
about 100m
Advantage :
High Welding Speed
Weight :
2T, 2.5T, 3T, 3.5T
Power :
5 kw
Function :
Making fence mesh
Description

Water Cooling Transformer Roll Mesh Welding Machine

1. Product description

Water cooling transformer roll mesh welding machine is used for making wire mesh. You can use Steel wire coils of drawn wire or wire rod as a continous wire input system for the length wires. Fort he Cross wires you may need a wire straightening & cutting machine which we also provide. You can also adjust the welding electrodes (welding pins) in order to produce different mesh holes.

2. Technical parameter

Model Mesh width Minimum mesh size (inch) Wire diameter(mm) Welding speed (rows/min) Roll mesh length (m) Other available mesh size (inch)
R- DHW 4 feet 1/2x1/2 0.6-1.3 90-120 110 1/2x1, 1x1/2, 1x1, 2x2
R- DHW 4 feet 1/2x1/2 0.8-1.6 80-90 100 1/2x1, 1x1/2, 1x1, 2x2
R- DHW 4 feet 1x1 0.6-1.3 90-110 110 1x2, 2x1, 2x2, 2x4
R- DHW 4 feet 1x1 0.8-1.6

90-110

 100 1x2, 2x1, 2x2, 2x4
R- DHW 4 feet 1x1 1.4-2.6 80-90 80 1x2, 2x1, 2x2, 2x4

3. Application area

The water cooling transformer roll mesh welding machine is for industrial wire goods. The water cooling transformer roll mesh welding machine can be widely used in algriculture. The machine produce the wire mesh. The people can use the wire mesh to make animal cages. Such as: chicken cage, dog cage, rabbit cage, etc. It is easy operation and economical.

4. Advantages

a. Line wire loop and balance system to ensure wire mesh accuracy.

b. Line wire vertical straightening system to provide high quality.

c. we can design the machine according to your wire diameter,mesh hole size and so on.

d. The electric current, line and weft opening are adjustable.

e. The welding speed is fast and it is easy to learn and operate. Only two operators are enough.
