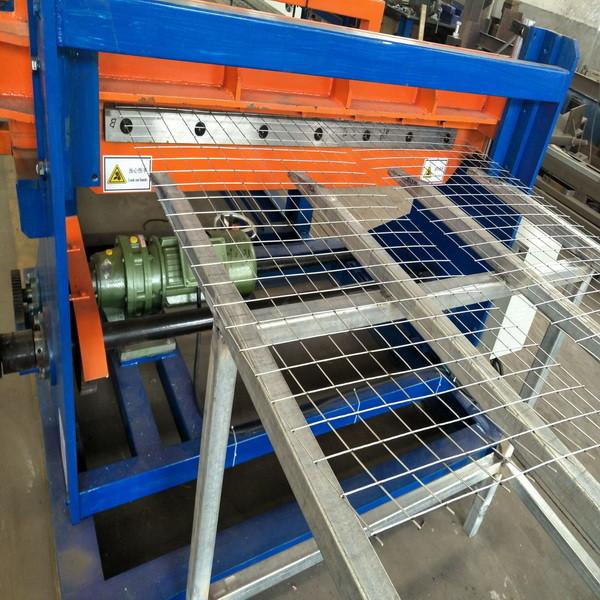

50A Husbandry Weld Mesh Manufacturing Machine Low Carbon Steel 2000mm Width
50A Husbandry Weld Mesh Manufacturing Machine Low Carbon Steel 2000mm Width
Specifications
Brand Name :
Huayang
Model Number :
R-DHW
Certification :
CE
Place of Origin :
Hebei, China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
20 sets/month
Delivery Time :
30 days
Packaging Details :
1.Machine will be covered with plastic film and fastened by steel wire in container. 2. Spare parts will be packed into carton box and fastened stable in container.
Product name :
Automatic Low Carbon Steel Diamond Mesh Wire Making Machine
Trademark :
Huayang
Feature :
Automatic Wire Feeding
Wire Diameter :
3.0-8.0mm
After-sales Service :
Free spare parts, Field installation, commissioning and training
Nominal Voltage :
380v or Customized
Current :
50A
Weight of Machine :
4800kg
Machine Type :
Welding Manipulator
Description

Automatic Low Carbon Steel Diamond Mesh Wire Making Machine

1. Product description

Automatic low carbon steel diamond mesh wire making machine is used for making wire mesh. low carbon steel diamond mesh wire making machine production line is based on customer requirements and many years of production experience to upgrade and reform the entire production line.Its greatest advantages are high productivity,high automatic and simple operation.Normal operation of the machine requires only one person to operate, the wire mesh panel products are smooth and beautiful,and the automatic stacking is neat. Save a lot of labour and space.

2. Technical parameter

Model HY-DHW-1500 HY-DHW-2000 HY-DHW-2500 HY-DHW-2800 HY-DHW-3300
Weld width(mm) 1500 2000 2500 2800 3300
Meshi trip(mm) Single trip 3000 and no limit on return
Std trans.spacing >=25mm-stepless adjustable
Std long.spacing >=50mm, and progressive increase by 50 >=100mm, and increase by 100
Std weld spots 31 41 51 27 32
Wire diameter(mm) 3.0-6.0 3.0-6.0 3.0-6.0 5.0-12.0 5.0-12.0
Weld speed(times/min 50-70 40-60 40-60 40-60 40-60
Trans material Straight bar/rod Straight bar
Long material Straight bar/rod
Control mode PLC programming servo motor stepper
Mesh diagonal error <=2
Mesh overall error <=2
Air pressure >=0.7
Weld material Cold drawn wire, galvanized wire, cold rolled ribbed steel


3. Application area

The automatic low carbon steel diamond mesh wire making machine can be used in highway ,railway and various function of protection. For construction which used for basis of high building,roof mesh ,floor mesh. It is also widely used in agriculture and poultry mesh, farming mesh and so on.

4. Advantages

a. Easy handling, improve production efficiency and reduce labor costs.

b. To produce mesh by coiled wire continuously.

c. The greatest advantage is possible to adjust the distance of line wires at random on the same mesh panel.

d. Reinforced length delivery process automatic control.

e. The machine line automatic degree can be according to request. For the economical type, line wire and cross wire are pre straightened and cut to length. We are capable to produce fully automatic machine.
