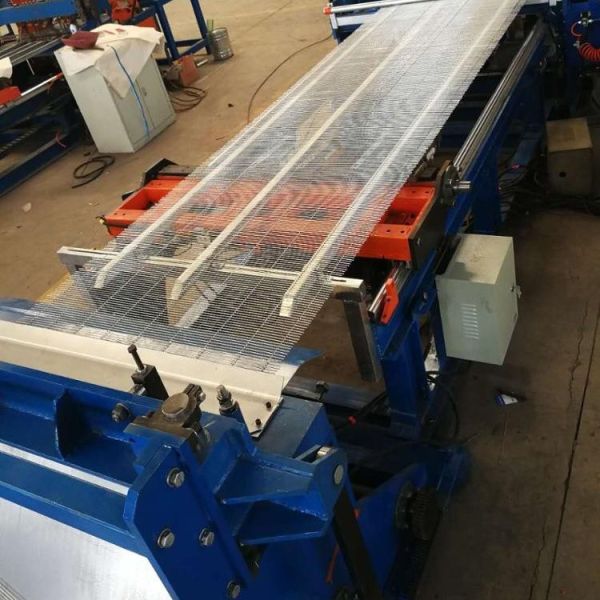

Huayang Treads Stainless Steel Spot Welder Fence Panel 40rows/Min
Huayang Treads Stainless Steel Spot Welder Fence Panel 40rows/Min
Specifications
Brand Name :
Huayang
Model Number :
R-DHW
Certification :
CE
Place of Origin :
Hebei, China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
20 sets/month
Delivery Time :
30 days
Packaging Details :
1.Machine will be covered with plastic film and fastened by steel wire in container. 2. Spare parts will be packed into carton box and fastened stable in container.
Product name :
Stainless Steel CNC Spot Welding Machine
Feature :
Automatic Wire Feeding
Function :
fence panel
Wire diameter :
1-3mm
Key Selling Points :
High Rigidity
Warranty of core component :
1 Year
Color :
Customers can choose
Current :
100A
Welding speed :
40-70 rows per minute
Description

Stainless Steel CNC Spot Welding Machine

1. Product description

Stainless steel CNC spot welding machine is used for making panel mesh. Automatic wire mesh welding machine production line is based on customer requirements and many years of production experience to upgrade and reform the entire production line.Its greatest advantages are high productivity,high automatic and simple operation.Normal operation of the machine requires only one person to operate, the wire mesh panel products are smooth and beautiful,and the automatic stacking is neat. Save a lot of labour and space.

2. Technical parameter

Model HY-DHW-1500 HY-DHW-2000 HY-DHW-2500 HY-DHW-2800 HY-DHW-3300
Weld width(mm) 1500 2000 2500 2800 3300
Meshi trip(mm) Single trip 3000 and no limit on return
Std trans.spacing >=25mm-stepless adjustable
Std long.spacing >=50mm, and progressive increase by 50 >=100mm, and increase by 100
Std weld spots 31 41 51 27 32
Wire diameter(mm) 3.0-6.0 3.0-6.0 3.0-6.0 5.0-12.0 5.0-12.0
Weld speed(times/min 50-70 40-60 40-60 40-60 40-60
Trans material Straight bar/rod Straight bar
Long material Straight bar/rod
Control mode PLC programming servo motor stepper
Mesh diagonal error <=2
Mesh overall error <=2
Air pressure >=0.7
Weld material Cold drawn wire, galvanized wire, cold rolled ribbed steel


3. Application area

The stainless steel CNC spot welding machine can be used welded wire mesh, or steel mesh include: fencing panels, wire partitions, wire container panels, wire baskets, animal cages, enclosure works, screens, security panels, shelving, signage, stairways/treads, fishing traps and concrete reinforcement.

4. Advantages

a. This line adopt special welding process ,Efficient water cooling system and precision welding control system and high quality copper alloy electrodes with unique appearance.

b. The new wire mesh welding machine added the bear wire net and carry equipment that makes the working more convenience .

c. We can design the welded wire mesh machine as your requirement.

d. Welding part can easily switch, which greatly improves the service life of machinery, maximum reduce the cost.

e. It can welded different mesh size on the one same mesh panel.
