PLC Animal Cage Making Mesh Welding Machine Automatic
PLC Animal Cage Making Mesh Welding Machine Automatic
Specifications
Brand Name :
Huayang
Model Number :
R-DHW
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
20 sets/month
Delivery Time :
30 days
Packaging Details :
1.Machine will be covered with plastic film and fastened by steel wire in container. 2. Spare parts will be packed into carton box and fastened stable in container.
Product name :
Animal Cage Making Automatic Roll Mesh Welding Machine
Suitable wire to the machine :
Low carbon steel wire
Mesh width :
Max.2.5m
Key Selling Points :
Easy to Operate
Pressure way  :
Spring-weighted
Control system :
PLC
Mesh roll length :
about 100m
Mesh opening size :
1/4''-4''
Function :
Making fence mesh
Aperture/pitch :
1", 2", 3", 4" 25, 50, 75, 100mm
Description

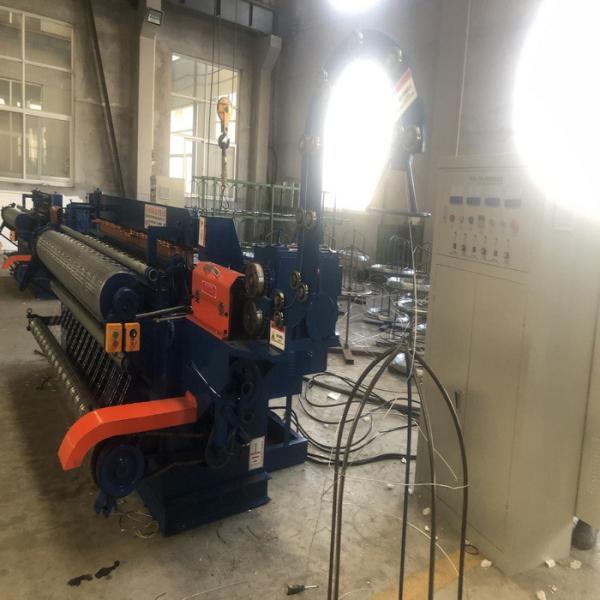

Animal Cage Making Automatic Roll Mesh Welding Machine

1. Product description

Animal Cage Making Automatic Roll Mesh Welding Machine is used for making roll mesh. The main body frame using thick steel plate and steel, that make the main structure is more fastness,and compact. The weft feeding system, the stepper motor automatically droping the weft automatic, it make the placed more accurately. Pulling mesh system adopts servo motor to pull the network, making the size of the pulling mesh more standard and accurate,and can adjust the cross wire distance at any size.

2. Technical parameter

Model Mesh width Minimum mesh size (inch) Wire diameter(mm) Welding speed (rows/min) Roll mesh length (m) Other available mesh size (inch)
R- DHW 6 feet 1/2x1/2 0.45-0.85 90-120 130 1/2x1, 1x1/2, 1x1, 2x2
R- DHW 6 feet 1/2x1/2 0.6-1.3 90-120 110 1/2x1, 1x1/2, 1x1, 2x2
R- DHW 6 feet 1/2x1/2 0.8-1.6 80-90 100 1/2x1, 1x1/2, 1x1, 2x2
R- DHW 6 feet 1x1 0.45-0.85 90-120 130 1x2, 2x1, 2x2, 2x4
R- DHW 6 feet 1x1 0.6-1.3 90-110 110 1x2, 2x1, 2x2, 2x4
R- DHW 6 feet 1x1 0.8-1.6

90-110

 100 1x2, 2x1, 2x2, 2x4
R- DHW 6 feet 1x1 1.4-2.6 80-90 80 1x2, 2x1, 2x2, 2x4


3. Application area

Animal Cage Making Automatic Roll Mesh Welding Machine is used forfencing panels, wire partitions, wire container panels, wire baskets, animal cages, enclosure works, screens, security panels, shelving, signage, stairways/treads, fishing traps and concrete reinforcement.

4. Advantages

a. Within guarantee time, if any components are broken under normal condition, we can change for free.


b. It installs 8-level adjustable welding transformers to suit different wire.

c. It has adjustable middle cutter to cut mesh in different size.
