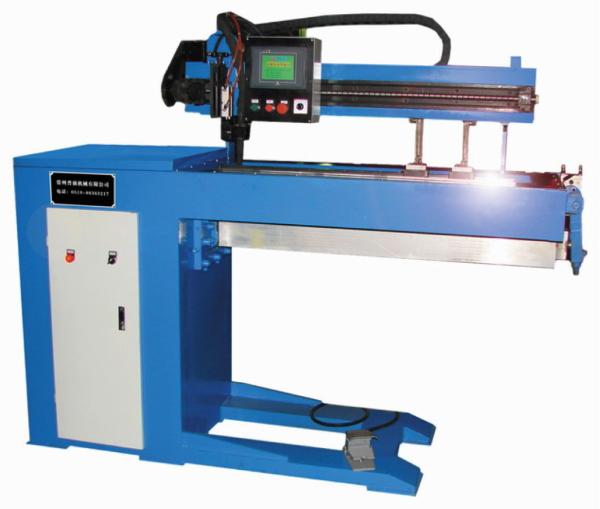

3000mm Length Automatic Seam Welding Machine / Straight Long Seam Welding Machine
3000mm Length Automatic Seam Welding Machine / Straight Long Seam Welding Machine
Specifications
Brand Name :
Libon
Place of Origin :
China
MOQ :
1pc
Price :
Negotiable
Payment Terms :
L/C, T/T, D/P, Western Union
Delivery Time :
20~30days from the date of files approval
Packaging Details :
Standard Export Packaging
Product name :
Straight Seam Welding Equipment
type :
Automatic Seam Welding Machine
Effective welding length :
3000mm
Welding thickness :
2-3.5mm
welding method :
argon arc ／filler wire welding
Air pressure range :
0.4-0.6Mpa
Welding speed :
adjustable 400-600mm/min
feature :
high speed
Tooling walking speed :
1400mm/min
color :
blue
Description

3000mm Length Automatic Seam Welding Machine / Straight Long Seam Welding Machine

Automatic Seam Welding Machine details:

The automatic straight seam welder is used for the welding of the middle seam of the cylinder after the coil and the docking of the flat plate. This machine can complete welding methods such as argon arc welding filler wire welding and gas shielded welding.

Automatic Seam Welding Machine specification:

Product Name: Straight Seam Welding Equipment
Effective Welding Length: 3000mm
Welding Method: Argon Arc ／filler Wire Welding
Welding Speed: Adjustable 400-600mm/min
Tooling Walking Speed: 1400mm/min
Type: Automatic Seam Welding Machine
Welding Thickness: 2-3.5mm
Air Pressure Range: 0.4-0.6Mpa
Feature: High Speed
Color: Blue

Automatic Seam Welding Machine Technical Parameters

1. Effective welding length: 3000mm

2. Welding diameter: different diameter according to the length, the minimum is 50mm. The maximum is 50mm

3. Welding thickness: 2-3.5mm

4. Welding speed: adjustable from 400-600mm/min (adjustable according to welding speed)

5. Tooling walking speed is 1400mm/min

6. Air pressure range: 0.4-0.6Mpa

Automatic Seam Welding Machine Main Feature

1) Easy operation, all of parameter can be set by touch screen.

2) Develop the function of welding wire compensating, is able to add weld wire automaticly.

3) The weld is more secure, weld face is more smooth.

4) Whole machine is controlled by self developed PLC system,has higher accuracy.

5) The welding flat is lifting, can be randomly adjusted according to diameter of tube
