PVC + ASA Corrugated ABB 1.5MM Plastic Roof Tile Making Machine
PVC + ASA Corrugated ABB 1.5MM Plastic Roof Tile Making Machine
PVC + ASA Corrugated ABB 1.5MM Plastic Roof Tile Making Machine
PVC + ASA Corrugated ABB 1.5MM Plastic Roof Tile Making Machine
PVC + ASA Corrugated ABB 1.5MM Plastic Roof Tile Making Machine
PVC + ASA Corrugated ABB 1.5MM Plastic Roof Tile Making Machine
Specifications
Brand Name :
ACEMIEN
Model Number :
plastic roof tile machine
Certification :
CE
Place of Origin :
CHINA
MOQ :
1 set
Price :
USD5800-USD12800/SET
Payment Terms :
L/C, T/T
Supply Ability :
50 set/ per set
Delivery Time :
85 working days
Packaging Details :
film and wooden carton
Raw material :
pvc powder and other additive
Type :
Plain Roof Tiles
Product type :
Pvc Profile Extrusion Machine
Product :
pvc roof tile
Contactor :
Schneider
Inverter :
ABB
Name :
PVC Glazed Roof Tile Machine Made in China
Color :
Customizable
Weight :
10t
Automatic grade :
Automatic
Description

2020 Hot hightput Recycled PVC+ASA corrugated plastic roof tile machine

Application:

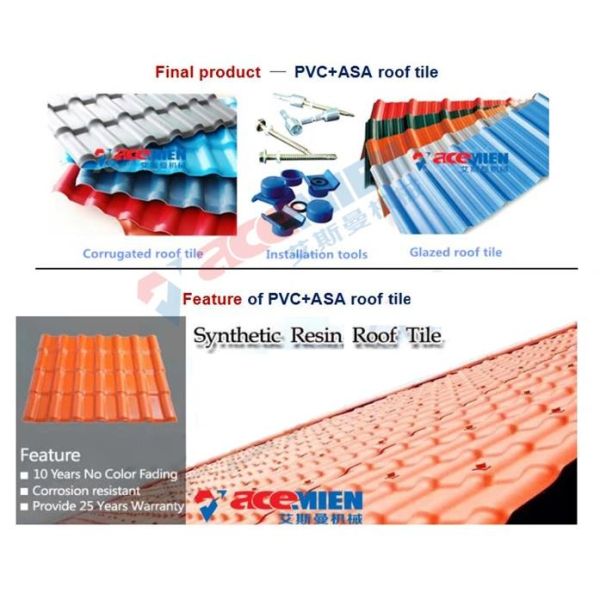

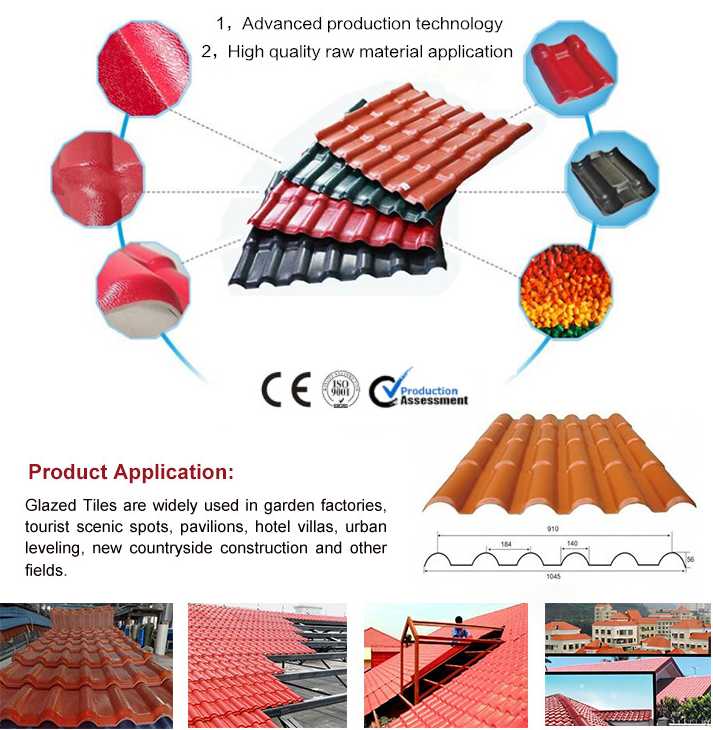

PVC+ASA/PMMA Glazed Roof Tile Extruder is extrued with mold and surface is treated with hot-stamping machine directly in line or water transferring after extrusion, which makes a mirror-like surface with strong feeling of smooth and shining marble.

Product info:

Material

Surface layer:ASA (Granule)

Bottom layer:PVC powder, CaCO3, CPE, PE-WAX, Stearic acid, Compound stabilizer, ACR, paraffin
Cost

Surface layer:USD 3400/T, Need 100g/㎡

Bottom layer:USD 300-USD 500/T
Weight 3-5kg/square meter
Thickness 1.5mm,2mm,2.5mm,3mm(adjustable)
Profit

Product cost USD 1.7-USD 3/㎡

Normally in market sell at USD 2.7-5 / ㎡ even more

Profit:at least USD1-2/㎡


Characteristic:
1.This line is mainly used to produce PVC glazed tile which width is 720mm, 880mm, 1040mm,thickness is 2-3mm. (Other size can be customized)

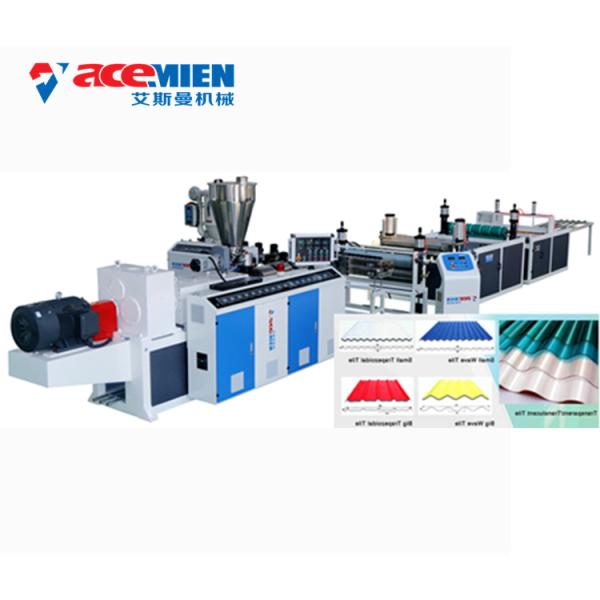

2. PVC, ASA, PMMA compound roof tile production line consists of conical twin screw extruder SJZ80/156, co-extruder, extruding tools, forming machine for main tile and ridge tiles, haul-off, cutter and stacker.
3. Supply formula guide and staple raw material purchase.
4. Professional analyzing and design by considering production cost and tiles's performance.

PVC + ASA Corrugated ABB 1.5MM Plastic Roof Tile Making Machine

PVC + ASA Corrugated ABB 1.5MM Plastic Roof Tile Making Machine

Main Machine List
No. Name Qty. Remark
1 Screw loader for SJZ 80/156 extruder 1

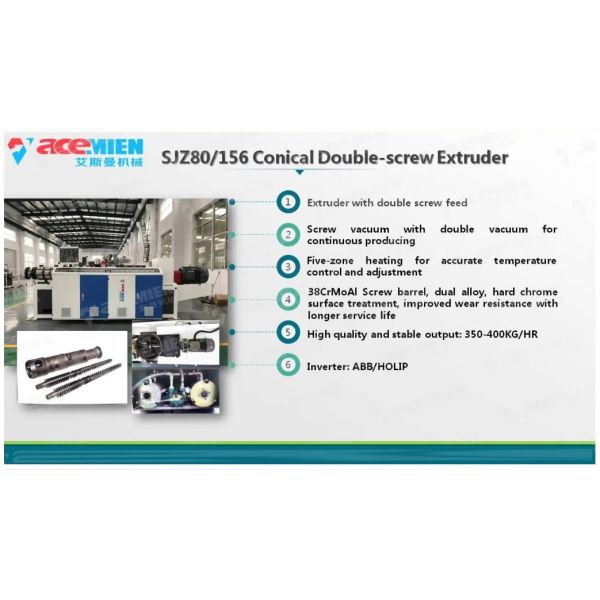

2 SJZ 80/156 conical twin-screw extruder 1 For the PVC layer
3 Vacuum loader for SJ50 extruder 1
4 drying hopper for SJ50 extruder 1
5 SJ50/30 single screw extruder(ASA) 1 For the ASA layer

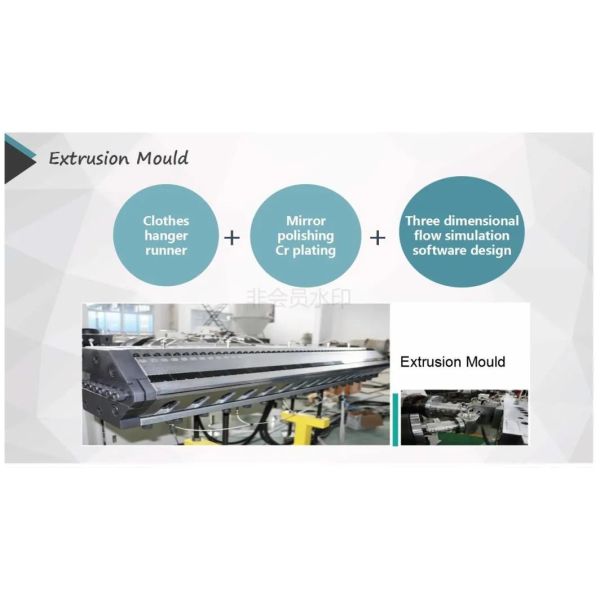

6 1300mm Mould unit 1 Product width:1050mm
7 Distributor 1
8 Cutter 1
9 Stacker 1
Equipment for corrugated roof tile
10 1050mm Calibration mould with trimming device and haul off unit 1

For corrugated roof tile product
11 Moulds of top ridge tile with forming machine 1
Equipment for Spanish roof tile
12 Embossing roller 1

For Spanish roof tile product
13 1050mm Forming machine with trimming device 1
14 Moulds of top ridge tile ,hip ridge tile , three way and end ridge tile with forming machine 4
Auxiliary equipment
15 Ridge tile Oven 1
16 SRL-Z300/600 Mixer unit 1 Capacity : 450-550kg/h
17 Screw loader for SRL-Z 300/600 Mixer 1
18 Crusher 1 Power: 11kw
19 Pulverizer 1 Power: 45kw

PVC + ASA Corrugated ABB 1.5MM Plastic Roof Tile Making Machine

PVC + ASA Corrugated ABB 1.5MM Plastic Roof Tile Making Machine

PVC + ASA Corrugated ABB 1.5MM Plastic Roof Tile Making Machine

Work condition (Provide by customer):

Warehouse/Workshop Machine Dimension (M*M*M): 25(L)×5(W) ×3.5 (H)
Crane: Machine positioning
Temperature & Humidity ≤40ºC, ≤95%
Power supply 3-phase, 380 V, 50 Hz(or customized)
Wire/cables: Wires/cables from power supply to control cabinet of this production line;
Cooling Water pool size 8-12m³
Lubrication oil: Sinopec, Exxon mobile
Compressor necessary (7.5kw)

PVC + ASA Corrugated ABB 1.5MM Plastic Roof Tile Making Machine
