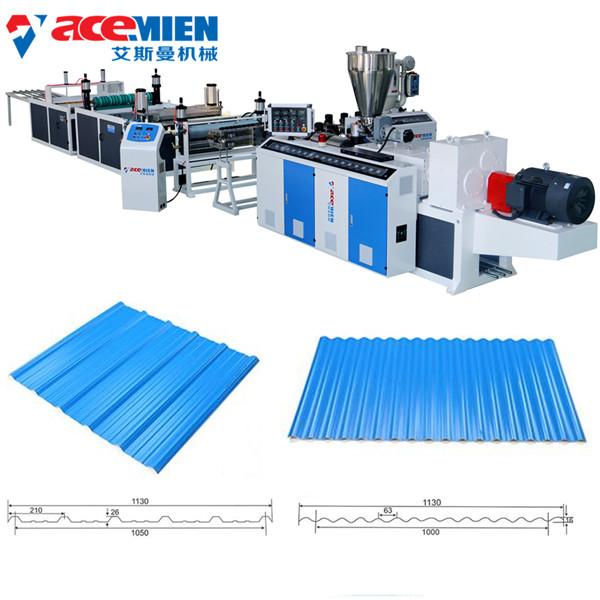

Recycling Corrugated Roof Sheet Making Machine Building Material 250-400kg/Hour
Recycling Corrugated Roof Sheet Making Machine Building Material 250-400kg/Hour
Recycling Corrugated Roof Sheet Making Machine Building Material 250-400kg/Hour
Recycling Corrugated Roof Sheet Making Machine Building Material 250-400kg/Hour
Recycling Corrugated Roof Sheet Making Machine Building Material 250-400kg/Hour
Recycling Corrugated Roof Sheet Making Machine Building Material 250-400kg/Hour
Recycling Corrugated Roof Sheet Making Machine Building Material 250-400kg/Hour
Recycling Corrugated Roof Sheet Making Machine Building Material 250-400kg/Hour
Specifications
Brand Name :
Acemien
Model Number :
SJZ80/156
Certification :
CE ISO
Place of Origin :
China
MOQ :
1set
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
300sets/year
Delivery Time :
45 working days
Packaging Details :
standard package or film
Name :
Plastic recycling building machine
Capacity :
250-400kg/hour
Thickness :
1.5-3mm
Workshop :
25*5*3.5M
Power :
75kw
Motor :
Siemens
Automatic Grade :
Automatic
Warrnaty :
13 month
Application :
Board, tile ,sheet
Width :
840/1050mm
Description

Recycling Machine Corrugated roof sheet Building Material Making Machinery

Application:

Roof tile and resin tile can be high-grade plants, steel factories, warehouses, farm market, market access, sheds and other high-end roofing materials. Especially in corrosive chemical plants, smelters, ceramic plants, soy sauce factory, chemical plants, printing and dyeing plant, organic solvent factory, acid, alkali and other corrosive plant.

3 layer Heat Insulated UPVC Roof Sheet is manufactured based on 3 layer co-extrusion technology by one-time processing. It is an ideal building material for construction projects with heat insulation requirement. The following is a list of the distinct features of each layer material.

First layer:weather resistant resin is selected as the top layer material to block the solar ultraviolet radiation and reduce the coefficient of heat conductivity. It provides our UPVC roofing material with great durability and chemical corrosion resistance;

Second layer:the middle layer is a special foam structure with heat and sound insulation performances.

Third layer:the bottom layer of our heat insulated UPVC roof sheet adopts modified PVC material to offer optimum strength and rigidity.

Machine configuration:

No. Machine Qty.
1 Screw loader for extruder 1set Corrugated tile extrusion line

Ridge tile forming machine
2 Conical twin-screw extruder(PVC) 1set
3 Vacuum loader and drying hopper 1set
4 Single screw extruder(ASA) 1set
5 Extrusion mould and distributor 1set
1set
7 Temperature controller 1set
8 Corrugated-tile forming machine 1set
9 Cutter 1set
10 Stacker 1set
11 Ridge tile Oven 1set
12 Ridge tile Forming machine and ridge tile mould 4set
13 Screw loader for Mixer 1set Auxiliary equipment
14 Mixer unit 1set
15 Crusher 1set
16 Pulverizer 1set

Raw material & formulation PVC resin, Caco3, lubricant,stabilizing agent, pigment, anti-ultraviolet agent etc.
Central height: 1000mm
Max. Haul-off speed: 0.3-4m/min
Operation direction From right to left (face to the operation panel)
Machine color Blue or as per your request
Description final product & Output capacity

Single layers UPVC Roofing tile;

Width:880 or 1050mm,Thickness: 2~4.0mm;

Wave distance:180mm; Wave height:30mm;

Output:200-350kg/h(Depending on CaCO3 proportion)
