Specifications
Brand Name :
Acemien
Model Number :
SJZ80/156
Certification :
CE
Place of Origin :
China
MOQ :
1set
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
300set/year
Delivery Time :
45 working days
Packaging Details :
standard package or film
Name :
Plastic recycling machine
Raw material :
wood and plastic, Wood Plastic Composite, PVC Resin and Calcium Carbonate
Width :
200,250,300,400,600mm
Weight :
1.8-3.6kg/m2, 3.1KGS 3.2kgs, 3kgs, 2.6kgs, 1.55-3.5kg
Surface treatment :
Common Printing/High Glossy/Transferred Printing/Laminated Printing, High Glossy, Transfer Printing, hot stamping, Laminated Printing
Ceiling tile type :
PVC ceilings, wood plastic composite, PVC wall panel
Function :
waterproof, Moisture-proof, Mould-proof
Ceiling tile shape :
Rectangle ,Square, Strip, Grid, Irregular
Usage :
building or decorative material., Drywall or Ceiling, Home Decoration, Interior Ceiling Decoration
Application :
office, dinning room, bathroom, hospital, hotel
Description

Indoor decoration Plastic board PVC ceiling panel making machine

Process of PVC ceiling production line:

Mixer → extrusion → surface treatment (including three types: two color printing, hot stamping, and lamination)

According to our formula(main raw material is PVC resin and caco3), raw materials are mixed in the mixer and tranported to the extruder. Through the PVC ceiling extrusion line, panel forming. It you adopt hot stamping and lamination, after extrusion line, your product is finished, But if you adopt two color printing, you can print it offline in the printing machine.

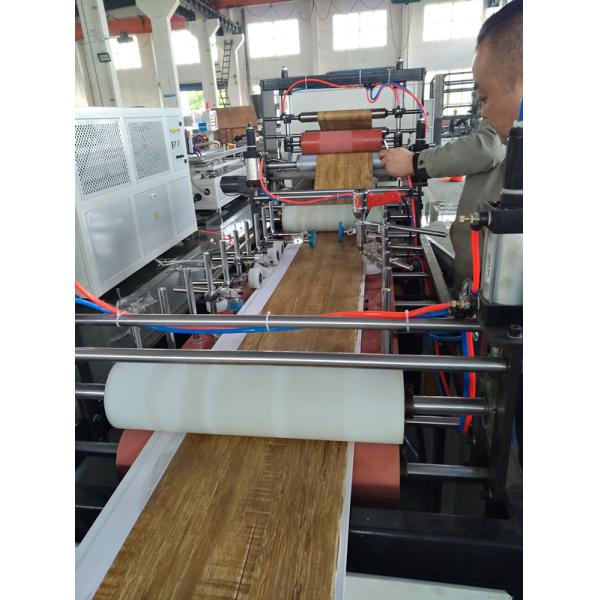

high speed PVC ceiling making machine/extrusion line is used to produce PVC ceiling panel with width 150mm-200mm,250mm-300mm,400-600mm with different section shape and height. the surface of PVC ceiling panel can be treated by double color printing & coated with glossy oil, or by heat transfer printing, or by lamination, which can make marble, wooden design on surface of product.

Model Max wide(mm) Extruder model Max output(kg/h) Drive motor power(kw)
SJZ108 108 SJZ51/105 100 18.5
SJZ180 180 SJZ51/105 100/150 18.5/22
SJZ240 240 SJZ65/132 or SJZ55/110 250 37
SJZ300 300 SJZ65/132 250 37
SJZ400 400 SJZ80/156 350 55
SJZ500 500 SJZ80/156 350 55
SJZ600 600 SJZ80/156 400 75

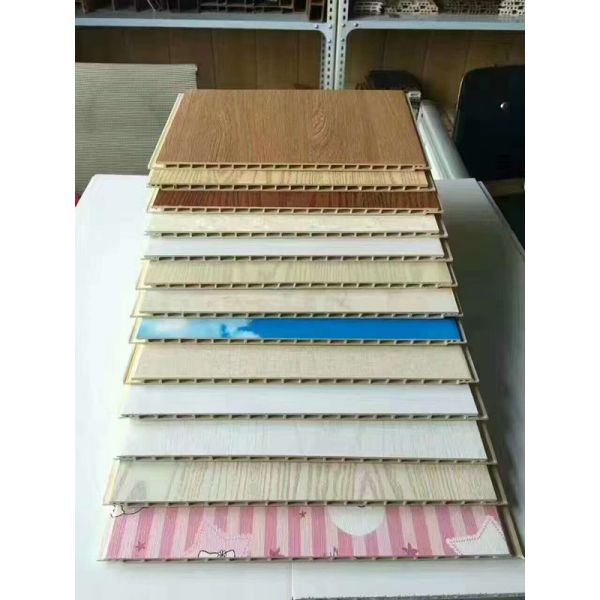

Products PVC ceiling, PVC panel, PVC wall panel
Specification Proof Light in weight and easy installation
Unit price US1.50~US4.00
Caco3 Ratio 30-200%
Width 10cm/16cm/18cm/20cm/25cm/30cm/60cm
Length 5.8m/5.95m/as customers' requirements
Thickness 6mm/7mm/7.5mm/8mm/9mm/10mm/11mm/12mm
Weight 1.85kg-3.3kg
Surface Printing, hot-stamping, pearlite printing, peritoneal, normal glossy, high glossy
Colors Varied colors to you choose
Features (1)High shrink surface, smooth without gap when concatenated
(2)Fireproof, moisture-proof, mould-proof, waterproof, soundproof, sound-absorbing, light in weight and easy installation
(3)For ceiling and wall decoration
(4)The variety of colors and patterns
Type Flat surface or middle groove

Indoor Decoration PVC Ceiling Panel Making Machine Common Printing Surface

Indoor Decoration PVC Ceiling Panel Making Machine Common Printing Surface

Indoor Decoration PVC Ceiling Panel Making Machine Common Printing Surface
