Specifications
Brand Name :
ACEMIEN
Model Number :
ASM-01
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
10 sets per month
Delivery Time :
60 days
Packaging Details :
wood case with plastic film
Usage :
Drywall or Ceiling,Home Decoration
Weight :
1.8-3.6kg/m2
Ceiling tile shape :
Square
Color :
As Required
Material :
PVC Resin,Calcium Carbonate,wood and plastic
Length :
can be customized
Thickness :
5/5.5/6/7/7.3/7.5/8/9/9.5/10/12/15
Width :
20cm 25cm 30cm 60cm
Description

600mm Square Plastic Profile PVC Ceiling Panel Wall Panel Making Machine

The production line of plastic ceiling decoration PVC ceiling panel production equipment has a length of about 24.5 meters and a width of about 1.5 meters. According to the different sizes of the products, it can produce two to three thousand square meters a day, and the investment is basically returned in 4-6 months.The PVC slab production equipment production line is equipped with a heat transfer machine, which can be customized according to different market needs. The installation period of the equipment can be completed 1-3 if the conditions are met.

The Working Process

Raw material → screw feeder → mixing → feeder → double screw extruder → vacuum calibration table → haul-off unit → cutting machine → stacker

Machine List

No. Machine Qty.
1 Spring loader 1set
2 SJZ55/110 conical twin screw extruder 1set

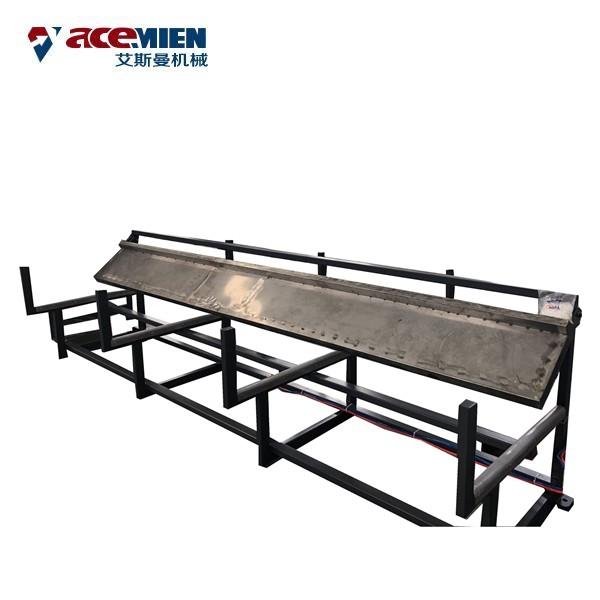

3 Vacuum calibration Table 1set
4 Haul off unit 1set

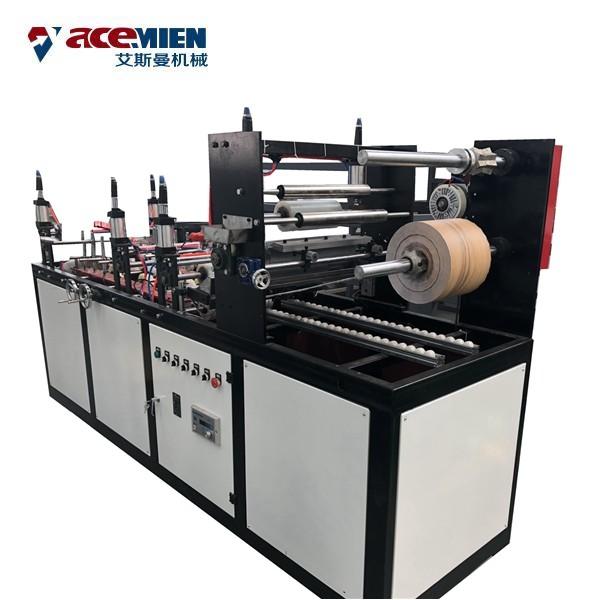

5 Lamination & hot stamping machine(inline) 1set
6 Blade Cutter 1set
7 Stacker 1set
8 Mould 1set

600mm Square PVC Ceiling Panel Making Machine 1.8-3.6kg/M2 Width 20cm 25cm
