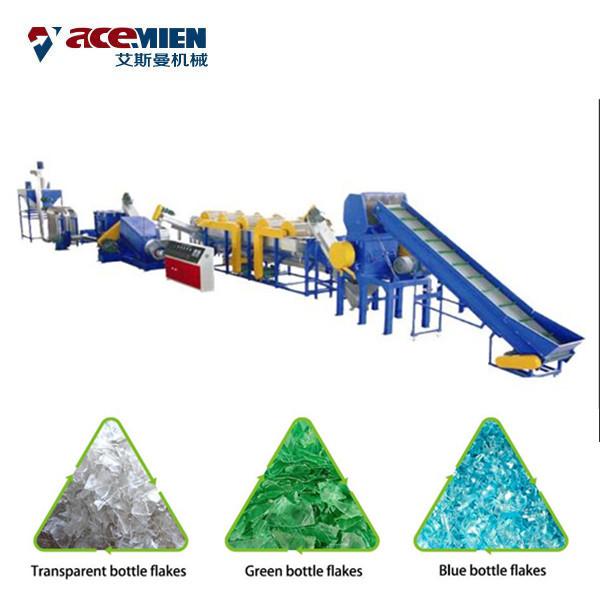

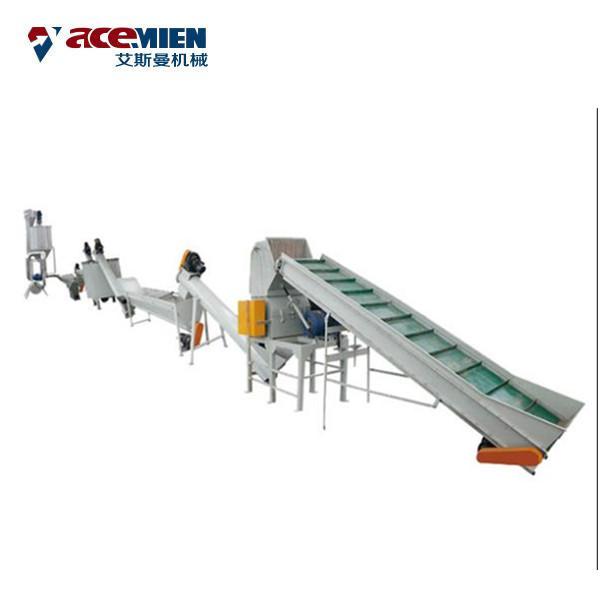

Waste Plastic Recycling Washing Line High Automation Level Bulk Density 0.3G/CM3
Waste Plastic Recycling Washing Line High Automation Level Bulk Density 0.3G/CM3
Waste Plastic Recycling Washing Line High Automation Level Bulk Density 0.3G/CM3
Waste Plastic Recycling Washing Line High Automation Level Bulk Density 0.3G/CM3
Waste Plastic Recycling Washing Line High Automation Level Bulk Density 0.3G/CM3
Waste Plastic Recycling Washing Line High Automation Level Bulk Density 0.3G/CM3
Specifications
Brand Name :
Acemien
Model Number :
SJZ80/156
Certification :
CE
Place of Origin :
China
MOQ :
1SET
Price :
negotiation
Payment Terms :
L/C, D/P, T/T, Western Union
Supply Ability :
200sets/year
Delivery Time :
45 working days
Packaging Details :
standard package
Plastic type :
bags, PP/PE, PET plastic, Plastic PE, pet product washing plant
Capacity :
300-2000kg/hour
Dimension(L*W*H) :
55M*8M*5M
Warranty: :
13 MONTH
Keywords :
PE Film PET Bottle Washing Recycling Line, plastic bottle recycling machine, Plastic Film Squeezing Machine,
FREQUENCY: :
ABB
After-sales Service Provided: :
Engineers available to service machinery overseas
Bearing: :
SKF or NSK
Power(w) :
100kw-260kw, depends on model, BASED
Application :
Plastic Recycling, Sheet, PET bottle washing machine, plastic recycle, PP PE Film
Description

Waste plastic recycling machine Waste plastic film recycling washing line DISCOUNT

Application Areas:
Bottles jars and other containers made of PET can be collected and recycled into a wealth of products. PET can be recycled into new PET bottles and containers, carpet and clothing, industrial strapping, rope, upholstery fabrics, boat sails, automotive parts, fibrefill for winter jackets and sleeping bags, construction materials, and many other items.

environmental project & high profit.
1. It can protect our enviroment from attact of white trash(the waste plastic bags, films etc.
2. high profilt, raw material - waste PE/PP films & bags are very cheaper, even no need pay can get, after washing recyclied it become high value products.

BenK supply high efficency enginner team for help client installtion machine & training their works how operation our machine.

Technical Features:
1. High automation level, try best to reduce your cost on labor(especially for three shifts)and ensure high processing capacity: 100-2000kg/hr.
2. Friendly control system(PLC integrated & separated control on each machine)and Touch screen panel, easy for operation, monitor and emergency stop.
3. All parts contacting with plastic material and water are made of high-quality 304 stainless steel; ensure no second pollution to flakes.
4. This China Hot Selling Waste PET Bottle Washing Machine can easily wash and recycle waste PET bottle flakes. Equipment at the end of the washing line so that the completely dry flakes can be collected and packed directly after being washed.
5. The whole production line can be designed on the basis of how dirty the flakes are, and make sure of the quality of the final products.
6. Coordinating the production line with follow programmed work (granulating system), and it will make waste and dirty PET bottles to be the PET granule material and in order to producing new PET bottles.




Basic specification of plastic pet bottle recycling machine/plastic recycling plant/pet bottle washing line

Product capacity 300kg/h 500kg/h 1000kg/h 1500kg/h
Workshop(L*W*H) 40m*7.5m*6m 42m*10m*6m 70m*12m*6m 75m*15m*6m
Needed worker 3-4 persons 5-6persons 7-8persons 10-12persons

Water supply
(recycle use)

 2-3ton/h 3-5ton/h 7-10ton/h 10-15ton/h




Final product

Moisture: max 3%
Bulk density: 0.3G/CM3
Particle size: 10-18mm
Metal content: max.20ppm
Floatable contamination: less than 200ppm
Total impurity: 100-320ppm


common configuration of pet bottle plastic recycling machine/plastic washing machine/waste plastic bottle recycling plant

No. Equipment Name Quantity Comments
1 Belt conveyor 1 set
2 Bag opener 1 set Optional
3 Belt conveyor 1 set
4 Trommel 1 set Optional
5 Belt conveyor 1 set
6 Manual sorting conveyor 1 set Optional
7 Belt conveyor 1 set
8 Crusher 1-2 sets
9 Screw conveyor 1 set
10 Washing tank 1 set
11 Screw conveyor 1 set
12 Cooking boiler or Horizontal Hot washer 1-2 sets
13 Screw conveyor 1 set
14 High-speed washer 1 set
15 Washing tank 1 set
16 Screw conveyor 1 set
17 Horizontal Dewatering Machine 1 set
18 Cyclone separator 1 set
19 Drying system 1 set
20 Label separator 1-2 sets We can equipped with two label separators in the whole line, one at the beginning, another at the end
21 Final product silo 1 set
22 Control System 1 set
