High Efficiency Industrial Washing Line , Waste PET Bottle Washing Machine
High Efficiency Industrial Washing Line , Waste PET Bottle Washing Machine
High Efficiency Industrial Washing Line , Waste PET Bottle Washing Machine
High Efficiency Industrial Washing Line , Waste PET Bottle Washing Machine
High Efficiency Industrial Washing Line , Waste PET Bottle Washing Machine
High Efficiency Industrial Washing Line , Waste PET Bottle Washing Machine
Specifications
Brand Name :
ACEMIEN
Model Number :
ACE009
Certification :
CE
Place of Origin :
China
MOQ :
1set
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
10 sets per month
Delivery Time :
60 days
Packaging Details :
wooden case and film packaged
Warranty :
12 Months
Automatic grade :
Automatic
Condition :
New
Application :
PET bottle washing machine
Production capacity :
300-2000kg/h
Plastic type :
PET plastic
Description

Plastic Recycling Line For Waste PET Bottle Washing Machine

PET cleaning equipment mainly consists of: conveyor belt (or screw feeding machine), crusher, screw elevator, parallel cleaning machine (friction washing machine), screw belt main washing machine, rinsing machine, bottle flake dehydrator, silo, etc.

Notes for use of PET cleaning equipment:

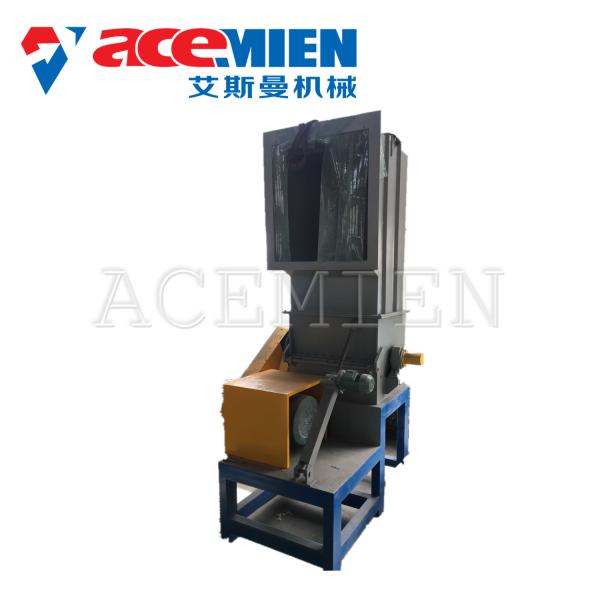

1. Crushing: select the appropriate crusher (forced feeding crusher) and adjust the distance between the knife and the bottom of the screen to prevent too much debris.

2. Main washing: choose equipment with washing and heating functions (screw belt main washing machine), and ensure the washing time;Choose the right cleaner to make sure all stubborn stains are removed.

3. Rinsing: it is better to use the rinsing equipment with rubbing (screw strip rinsing machine) to further remove the remaining stains and cleaning agents;

4 dehydration: the best is a cyclone dehydrator, energy saving, high dehydration rate.

Pet cleaning equipment features: high degree of automation, from crushing, transportation, cleaning, rinsing, dehydration integration, good quality, high output.

1.1 Configuration table and unit price

No. Machine Qty. No. Machine Qty.
1 Belt conveyor 1set 11 High-speed friction washer 1set
2 Bottle label remover 1set 12 Screw loader 4 1set
3 Manual sorting belt 1set 13 Floating washer 2sets
4 Belt conveyor 2sets 14 Spray washer 1set
5 Crusher 2sets 15 Centrifugal dryer 1set
6 Screw loader 1 1set 16 Pipeline dryer 1set
7 Hot washer 1 1set 17 Label separator 1set
8 Screw loader 2 1set 18 Packaging system 1set
9 Hot washer 2 1set 19 Electric cabinet 1set
10 Screw loader 3 1set Total price
