PET PP Bottles Plastic Recycling Washing Machine Scrap Plastic Compactor
PET PP Bottles Plastic Recycling Washing Machine Scrap Plastic Compactor
PET PP Bottles Plastic Recycling Washing Machine Scrap Plastic Compactor
PET PP Bottles Plastic Recycling Washing Machine Scrap Plastic Compactor
PET PP Bottles Plastic Recycling Washing Machine Scrap Plastic Compactor
PET PP Bottles Plastic Recycling Washing Machine Scrap Plastic Compactor
PET PP Bottles Plastic Recycling Washing Machine Scrap Plastic Compactor
PET PP Bottles Plastic Recycling Washing Machine Scrap Plastic Compactor
Specifications
Brand Name :
ACEMIEN
Model Number :
ASM-01
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
10 sets per month
Delivery Time :
60 days
Packaging Details :
wood case with plastic film
Name :
Plastic Recycling Equipment
After-sales service provided :
Engineers available to service machinery overseas
Material processed :
PP PE PET,Bottle Flakes,crushing-washing-drying
Dimension(l*w*h) :
As per specification
Capacity :
300kg/h-2000kg/h
Final product :
Dry PET Flakes
Condition :
New
Weight :
As per specification 8-15tons
Description

Scrap Plastic Compactor PET PP Bottles Recycling Machine Hot Washing Line

PP/PE washing line parameter specifications

The output of this set of equipment: 300-1000kg/h (can be customized according to customer requirements)

PP/PE washing line application range

This set mainly deals with PP/PE waste plastic film, PP/PE plastic garbage mixture, waste PP woven bag (cement bag, space bag, snake skin bag), PP/PE plastic bag, household garbage plastic, PE plastic garbage bag, Waste agricultural film mulch film, PVC agricultural film.

PP/PE washing line works

This set of equipment mainly consists of: conveyor belt, crusher (pulverizer), friction cleaning machine, sedimentation rinsing tank, chain material excavator, plastic squeeze dry dewatering machine, control cabinet and so on. The waste plastics are sorted (sorted), crushed (with water crushing), friction cleaning, rinsing, squeezing and dewatering, etc., and the entire production line starts from waste to finished product, and the waste plastic products are cleaned very efficiently. Dirty agricultural film, waste packaging materials. Easy to operate, high efficiency, environmental protection and energy saving.

Production Line List for your reference:

Item Components Qty
1 Belt conveyor 1 set Equipped with anti-slide device on the belt surface
Auto remove metal and alloy steel, aluminum and so on
2 Label Remover 1 set
3 Manual sorting machine 1 set
4 Belt conveyor 1 set 1.Height of conveyor can be adjusted.
2.Equipped with wheels.

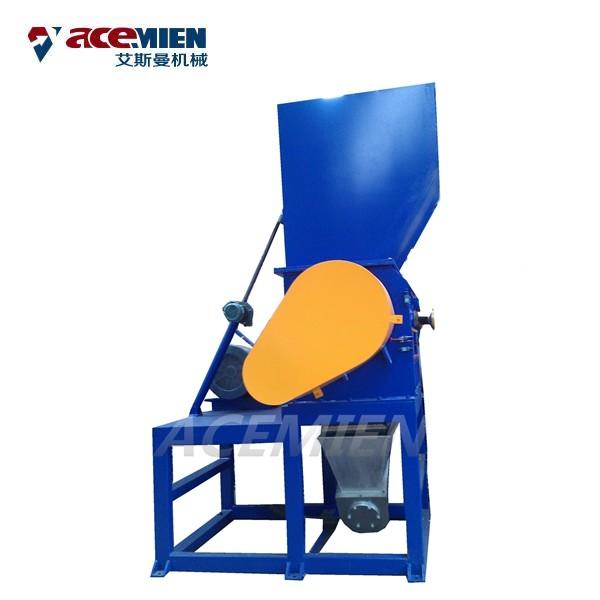

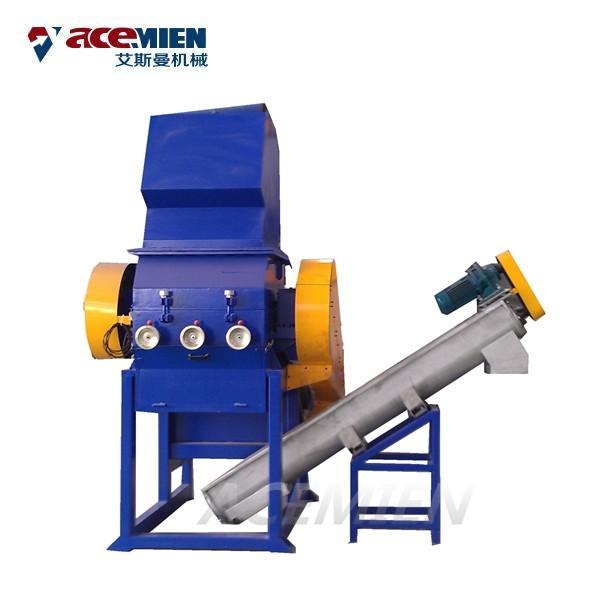

5 Crusher 1 set 1. hopper of crusher open ways : by motor drive: 1.5kw
2.Material of blade:SKD-11
6 Screw feeder 1 set
7 Float washing tank 1 set 1.Washing roller motor: 2.2kw×4+3KW
2.Qty of pushing roller : 5set
8 Hot washing machine 1 set Steam heating or electric heating(heat power:60kw)
9 Screw feeder 1 set
10 Hot washing machine 1 set
11 Screw feeder 1 set 1. Parts contact with material are made of stainless steel
12 High speed friction washer 1 set 1. Rotary speed of screw: 1220rpm
13 Screw feeder 1 set
14 Float washing tank 1 set
15 Float washing tank 1 set
16 Vertical dewatering machine 1 set The dewatering rate: more than 93%
17 Heating pipe system(with blower) 1 set Pipeline length :18 m
Rate of including water : less than 3 %
18 Zig Zag Label separator 1 set
19 Blower and storage silo 1 set Usage : for temporary storage for flakes.
Made of SUS304.
20 Electrical control panel 1 set
Total 20 sets
