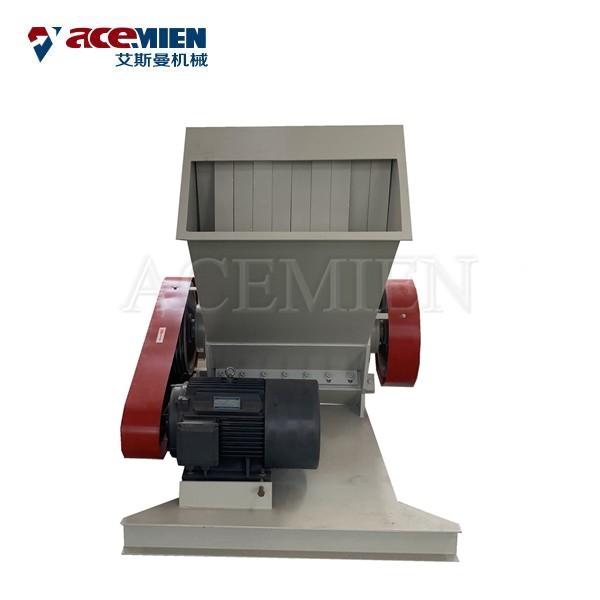

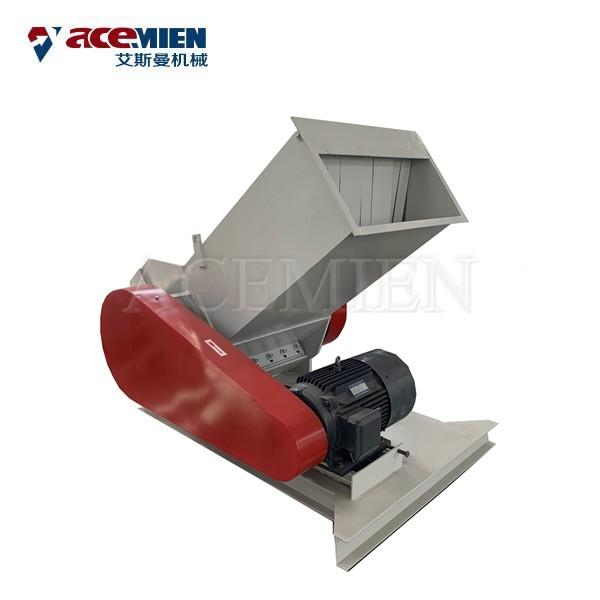

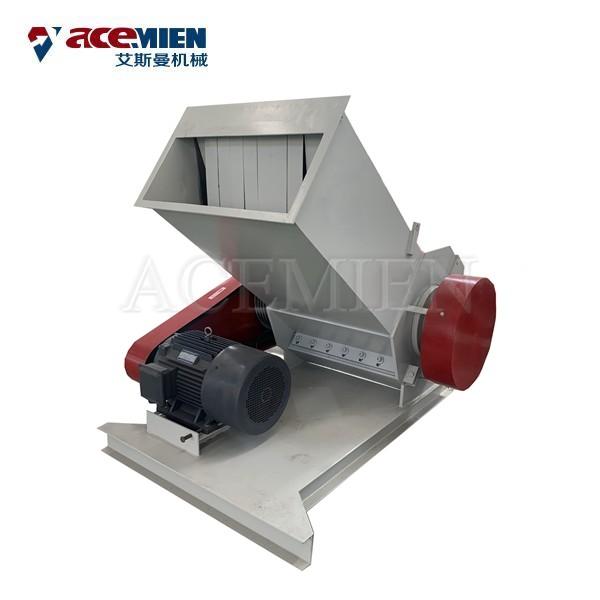

Features of plastic crushing machine
1) Strong structure, easy to operate, low electricity consumption & durable
2) Uses high quality steel material especially for making knives of the crushers, the machine stands long use under severe and continuous service conditions.
3) The blades can be grinded for many times and can be used repeatedly
4) Blades base is made of T10 high quality steel, hard to be broken and damaged; Blades base structure is stable and durable
5) With flat type, claw type and cross type blade and screen with different hole size for chose to suit various demand.
6) With double reduce noise layer design to reduce noise output.
7) Has protection system with the power supply to ensure the equipment safe
8) Easy to clean and maintain, the hopper, crusher room, blades and screen can be removed and mounted easily.
9) Necessary for the plastic extrusion machines and other plastic recycling industry.
About Jiangsu ACEMIEN Machinery:
Jiangsu ACEMIEN Machinery Co., Ltd is specialized on plastic extrusion and recycling machinery manufacturing.
We have been producing and selling for over 5years. Our equipment is exported to Asia, Africa, etc,
We have top-ranking Research and Development technology system and rich experienced technician team.
Our vision is to offer you the best and the most appropriate plastic extrusion and recycling solution, to offer you the most reliable technically and commercial service support.
Turnkey project service:
1. we will provide all the machines for the complete production according to customer's requirements.
2. we will provide complete service for factory layout and other information to help customer to build the factory.
3. we can also provide the raw material to the customer if you need.
4. we will provide good service for machine installation and training, until the customers can run the machines and make stably production.
5. Except one year quality guarantee, we will provide after-sell service for all the life.
6. For long-term cooperation, we always provide good quality, good price and good service to customer. we are the professional and trustable supplier for turnkey projects. Let us do win-win business together.
Main technical parameter
Model | PC-300 | PC-400 | PC-500 | PC-600 | PC-800 | PC-1000 |
Crusher room(mm) | Φ220×300 | Φ246×400 | Φ246×500 | Φ280×600 | Φ410×800 | Φ500×1000 |
Rotary blade | 9 | 12 | 15 | 18 | 12 | 15 |
Fixed blade | 2 | 2 | 4 | 4 | 4 | 4 |
Screen DIA.(mm) | Φ10 | Φ10 | Φ10 | Φ10 | Φ12 | Φ14 |
Capacity(kg/h) | 100-200 | 200-300 | 300-400 | 400-500 | 500-600 | 600-800 |
Dimension(m) | 1.1×0.8×1.2 | 1.3×0.9×1.7 | 1.4×1.0×1.65 | 1.45×1.25×1.72 | 1.5×1.4×1.8 | 1.7×1.6×2.2 |
Power(KW) | 5.5 | 7.5 | 11 | 15 | 22 | 30 |
Weight(kg) | 480 | 660 | 870 | 1010 | 1700 | 2300 |
Material of blade | 9CrSi | 9CrSi | 9CrSi | 9CrSi | 9CrSi | 9CrSi |
