Stainless steel SS201/SS304/Color steel LC-BEST 300mm roof turbo ventilator for family or small factory and warehouse
Liaocheng Wantong Ventilation Equipment Co., Ltd found in 2010. we have our own export company"Liaocheng Best Resources Co., Ltd", we have obtained the SGS certificate, please believe us, we also can let our customers save the more cost. We produce and export roof ventilation equipment, We have our own production lines and export rights, our products are low cost, no pollution, Green environmental protection products, so they are very popular in all over the world.
1. Our products model/size: From LC-BEST 75mm To LC-BEST1500mm
1). Mini model:
LC-BEST 75mm /110mm/112mm/120mm/153mm/155mm/160mm/180mm without the base plate, directly connect to pipes or chimney;
LC-BEST 100mm/150mm/200mm/250mm/300mm with the base plate;
2). Middle model:
LC-BEST 400mm/450mm/500mm/550mm/600mm/650mm/680mm/760mm/800mm/900mm with the base plate or without the base plate
3). The large model:
LC-BEST 1000mm/1100mm/1200mm/1500mm with the base plate or without the base plate.
Wind Driven Roof Turbine Ventilator Fans, Mini series Type: LC-BEST 75mm -LC-BEST 300mm (Powerless Roof Turbine ventilator Fans) (No Power Roof Turbine Ventilator Fans ) | ||||||||
No. | Model | Number of leaves | Ventilates the caliber ¢(mm) | Turbine wheel outer diameter ¢(mm) | Common high (mm) | Outline diameter D*D*H (mm) | Foundation size A*B(mm) | the wind speed 11km/h(3.05m/s) air ventilation (m³/per hour) |
NO. | common Product's Model | the blades number (pcs) | Neck/Throat Diameter (mm) | Ball Diameter (mm) | Common high (mm) | Packing size L*W*H (mm) | the common base plate size A*B(mm) | the wind speed 11km/h(3.05m/s) air ventilation (m³/per hour) |
1 | LC-BEST 75mm (3") | 14 | 75mm | 250mm | 260mm | 260*260*270mm | 1900 m³ | |
2 | LC-BEST 80mm (3") | 14 | 80mm | 250mm | 260mm | 260*260*270mm | 1980 m³ | |
3 | LC-BEST 100mm (4") | 14 | 100mm | 250mm | 260mm | 260*260*270mm | 2000 m³ | |
4 | LC-BEST 110mm (4") | 14 | 110mm | 255mm | 260mm | 270*270*270mm | 2050 m³ | |
5 | LC-BEST 120mm (5") | 14 | 120mm | 260mm | 270mm | 270*270*280mm | 2100 m³ | |
6 | LC-BEST 150mm (6") | 14 | 150mm | 270mm | 280mm | 280*280*290mm | 260mm*260mm | 2250 m³ |
7 | LC-BEST 153mm (6") | 14 | 153mm | 272mm | 280mm | 280*280*290mm | 260mm*260mm | 2265 m³ |
8 | LC-BEST 155mm (6") | 14 | 155mm | 275mm | 280mm | 280*280*290mm | 2280 m³ | |
9 | LC-BEST 160mm (6") | 14 | 160mm | 280mm | 290mm | 290*290*300mm | 2300 m³ | |
10 | LC-BEST 200mm (8") | 14 | 200mm | 300mm | 300mm | 310*310*310mm | 300mm*300mm | 2500 m³ |
11 | LC-BEST 220mm (9") | 14 | 220mm | 320mm | 300mm | 330*330*310mm | 2580 m³ | |
12 | LC-BEST 250mm (10") | 24 | 250mm | 400mm | 300mm | 400*400*310mm | 350mm*350mm | 2650 m³ |
13 | LC-BEST 300mm (12") | 24 | 300mm | 400mm | 359mm | 405*405*360mm | 500mm*500mm | 2800 m³ |
14 | LC-BEST 350mm (14") | 24 | 350mm | 450mm | 350mm | 460*460*360mm | 3300 m³ | |
15 | LC-BEST 400mm (16") | 24 | 400mm | 480mm | 370mm | 500*500*390mm | 550mm*550mm | 3400 m³ |
16 | LC-BEST 450mm (18") | 24 | 450mm | 550mm | 470mm | 560*560*480mm | 3500 m³ | |
17 | LC-BEST 500mm (20") | 32 | 500mm | 600mm | 480mm | 610*610*500mm | 620mm*680mm | 3800 m³ |
18 | LC-BEST 550mm (22") | 32 | 580mm | 650mm | 600mm | 610*610*500mm | 4100 m³ | |
19 | LC-BEST 600mm (24") | 32 | 600mm | 700mm | 600mm | 715*715*615mm | 730mm*750mm | 4500 m³ |
20 | LC-BEST 680mm (27") | 32 | 680mm | 800mm | 600mm | 810*810*615mm | 1000mm*900mm | 5000 m³ |
21 | LC-BEST 760mm (30") | 42 | 760mm | 890mm | 600mm | 900*900*615mm | 6000 m³ | |
22 | LC-BEST 800mm (32") | 42 | 800mm | 900mm | 600mm | 910*910*615mm | 1000mm*1000mm | 6500 m³ |
23 | LC-BEST 900mm (36") | 42 | 900mm | 1000mm | 600mm | 1010*1010*615mm | 1100mm*1100mm | 7000 m³ |
24 | LC-BEST 1000mm (39") | 42 | 1000mm | 1100mm | 600mm | 1110*1110*615mm | 1200mm*1200mm | 7800 m³ |
25 | LC-BEST 1100mm (43") | 60 | 1100mm | 1200mm | 600mm | 1210*1210*615mm | 8600 m³ | |
26 | LC-BEST 1200mm (47") | 60 | 1200mm | 1300mm | 600mm | 1310*1310*615mm | 1340mm*1530mm | 9600 m³ |
27 | LC-BEST 1500mm (59") | 60 | 1500mm | 1600mm | 600mm | 12800 m³ | ||
Theoretical dimensions of containers ① 1*20"GP(L*W*H): 5.898m * 2.352m * 2.35m.② 1*40"HQ(L*W*H): 12.02m * 2.352m * 2.68m. |
2. Our products material: 5 types
1). Outside material: International standard Stainless steel SS201/SS304/SS316L, Aluminum alloy, Color coated steel, Galvernized steel.
2). Inside material: Galvernized steel, International standard Stainless steel SS201/SS304/SS316L/Aluminum alloy
3. Benefits of Roof Turbine Ventilation Systems:
1). Old air is extracted removing heat, fumes, steam and dust
2). Improves people’ s productivity
3). Improves indoor air quality
4). Water and bird proof
5). Reduces structural damage in lofts
6). Protects stored goods
7). Human and environmentally friendly
8). Requires no electricity
9). Suit to all kinds of buildings, for example: pipe/tube, factory, room, and so on.
4. Quality: GB/ISO 9001-2000, SGS Certificate
Material: international standard stainless steel SS201/SS304/SS316L, aluminum alloy, color coated steel, high quality, enough strong, running fast & running smoothly, one-time stamping forming. strong and fast turning. Simple installation, long service life.
5. We supply and export within all over the world!
Turbine ventilators remove the heat from your building inducing currents of fresh air cooling your people and the environment.
Ideal to ventilate factories, workshops, warehouses, agricultural applications, schools, hostels, assembly halls and other buildings which require effective and efficient ventilation. The extraction produces fresh cool breezes into the building and ensures a cleaner, cooler and more healthy working environment.
Welcome visit our factroy! Welcome our cooperation! Please contact us!
Email: helenbestventilator@aliyun.com,
Wechat: helen8618769559098, WhatsApp: +86 18769559098.

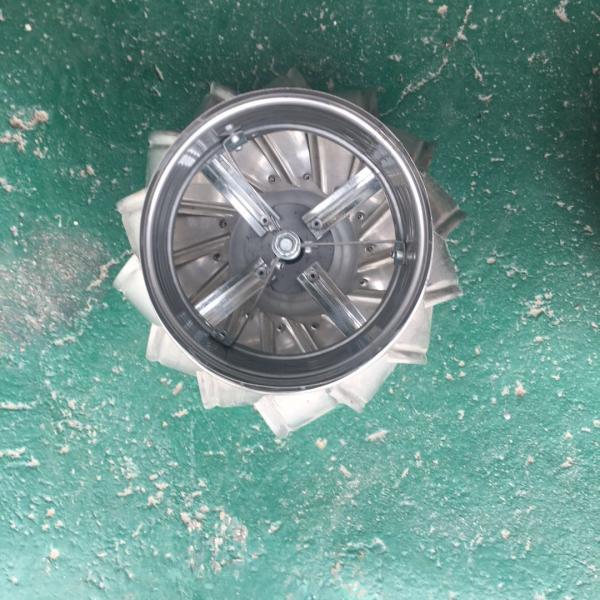

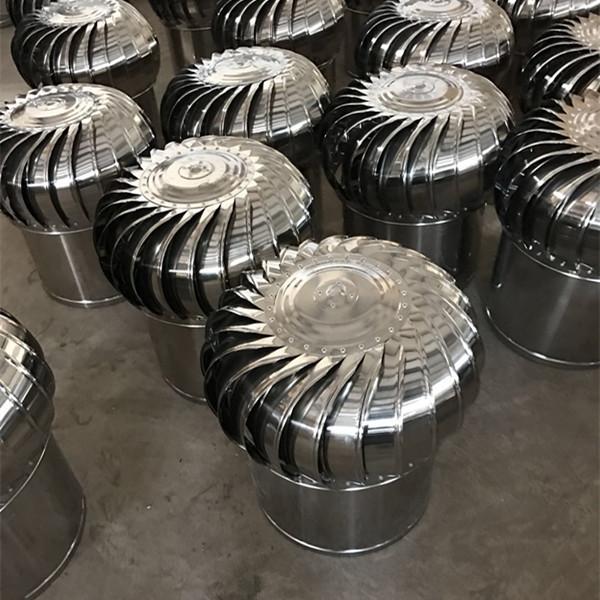

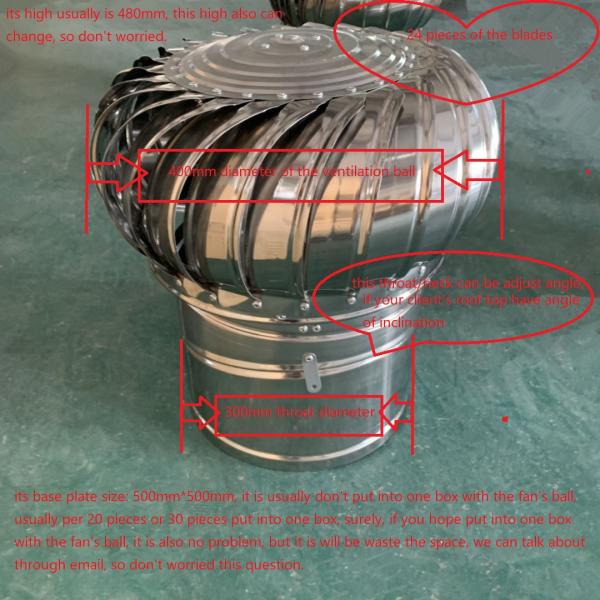

6. LC-BEST 300mm size Products pictures:

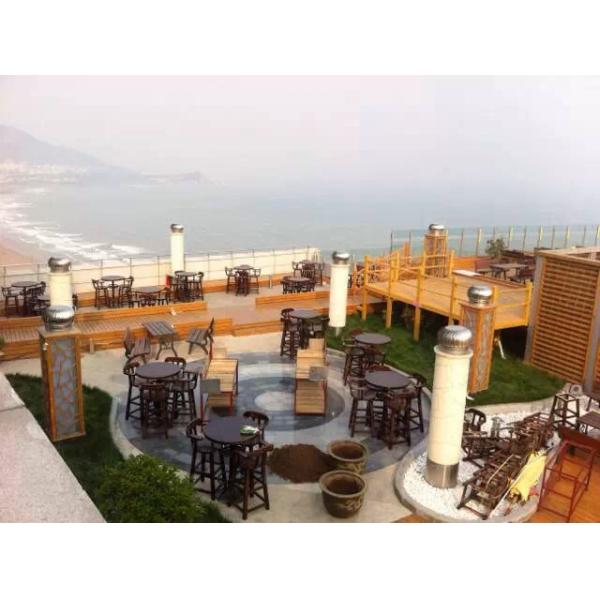

7. LC-BEST 300mm projects pictures:

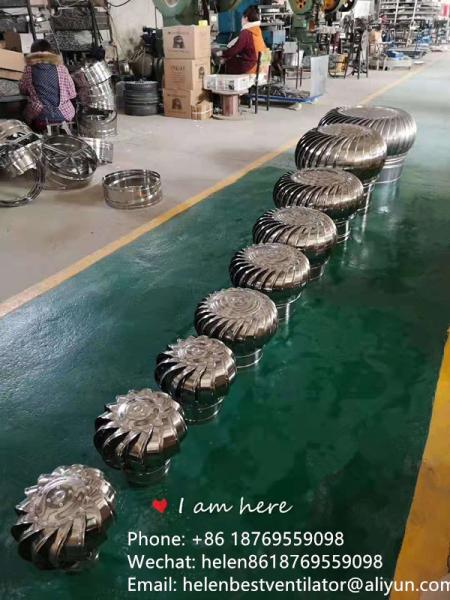

7. Another sizes products' pictures:
