Produce LC-BEST 75mm to LC-BEST 1500mm stainless steel No power roof turbine ventilation for factory, accept customzied

Specifications

Payment Terms :

T/T , Western Union, L/C at sight.

Brand Name :

“LC-BEST"/"LCWT", OEM

Model Number :

75mm to 1500mm

Certification :

SGS

Place of Origin :

LIAOCHENG CITY OF CHINA

MOQ :

10 pieces

Price :

9.98usd/per piece to 299.98 usd/per piece

Supply Ability :

20000 pieces /per month

Packaging Details :

single box or wooden carton, standard export by sea/by air.

Outside material :

International standard stainless steel SS201/SS304/SS316L, Aluminum/color steel

Inside material :

Usually Galvanized steel, also can choose stainless steel as the same with outside material

Material thickness :

0.25mm to 1.20mm

Diameter of the neck/throat :

75mm to 1500mm

Diameter of ventilation ball :

280mm to 1600mm

Height :

260mm to 600mm or 1200mm, Customized Height, OEM

Number of blalds :

14 pieces/ 24 pieces/32 pieces/42 pieces/60 pieces

Air ventilation :

1900 m³ to 12800 m³

Quality :

High quality, enough strong, running smoothly and running fast

Package :

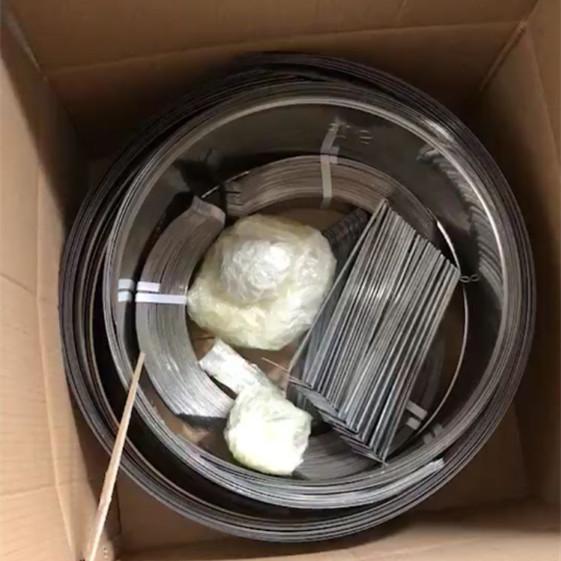

Single box or wooden carton, standard export package by sea or by air

Delivery time :

within 15 days produce finished and send to the loading port

Description

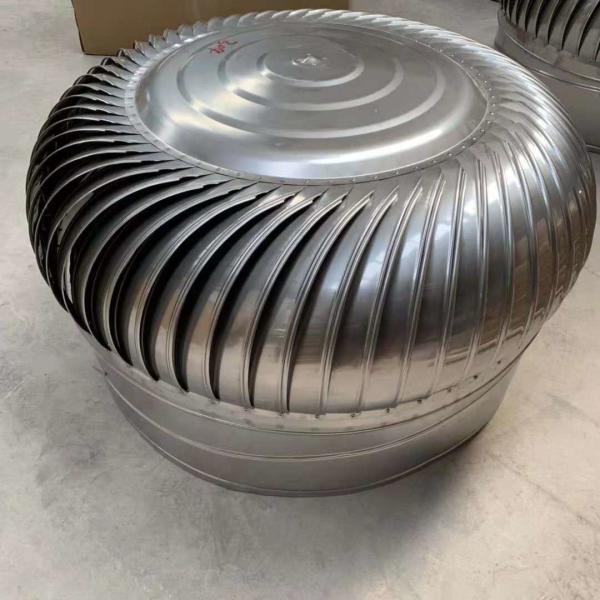

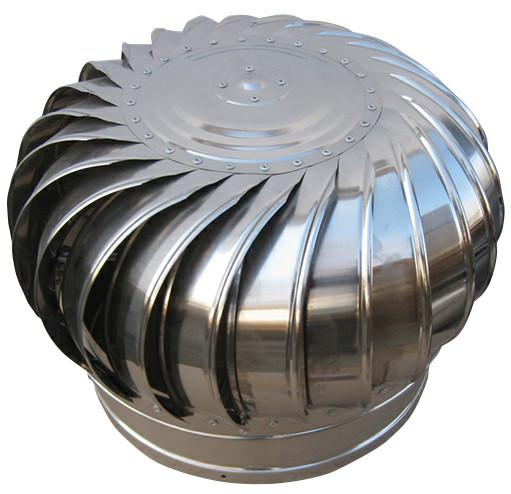

Non-power Roof turbine ventilator fan

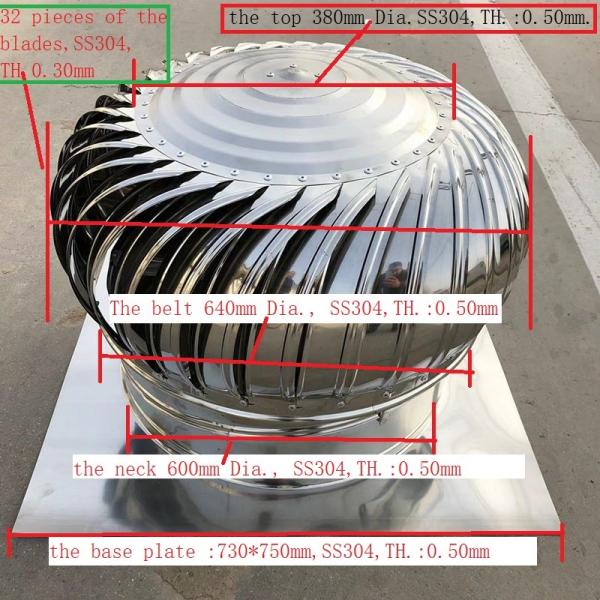

International standrd stainless steel SS304 600mm No power roof turbo ventilator for workshop

1. Material:

Outside material: Stainless steel SS201/SS304/SS316L/Aluminum Alloy/Color steel

Inside material: usually Galvanized steel, also can choose stainless steel, as the same with the outside material.

2.Our products’ Type/size: LC-BEST 75mm To LC-BEST 1500mm, we also accept OEM & customized production .

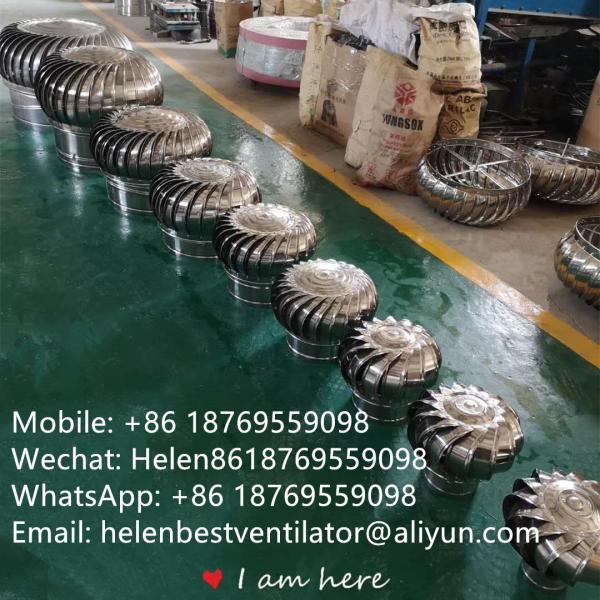

Popular type: 75mm/80mm/100mm/110mm/120mm/150mm/155mm/200mm/220mm/250mm/300mm/350mm/400mm/450mm/500mm/550mm/600mm/650mm/680mm/760mm/800mm/900mm/1000mm/1100mm/1200mm/1500mm

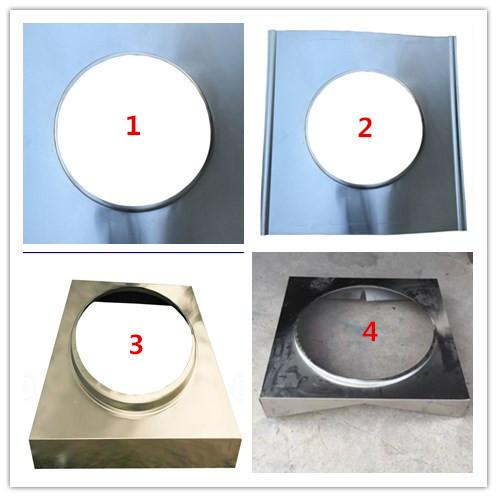

Outside Material: Stainless steel SS201,SS304,SS316L,color steel, Aluminium or Aluminum Alloy Inside Material: Usually is galvernized steel, you also can choose stainless steel and Aluminum, as the same with the outside material. The high and the base plate also can OEM.Of course, we also can according your requests to produce different size.the throat Dia. also can OEM.
No.	Model	Number of leaves	Ventilates the caliber ¢(mm)	Turbine wheel outer diameter ¢(mm)	Common high (OEM Heigh) (mm)	Outline diameter DDH (mm)	Foundation size A*B(mm)	the wind speed 11km/h (3.05m/s)air ventilation (m³/per hour)	approximately Weight (kg/per piece)	approximately Weight (kg/per piece)
NO.	common Product's Model	the blades number (pcs)	Neck/Throat Diameter (mm)	Ball Diameter (mm)	Common high (OEM Heigh) (mm)	Packing size LWH (mm)	the common base plate size (OEM Base plate)	the wind speed 11km/h (3.05m/s)air ventilation (m³/per hour)	About N.W. (kg/per piece)	About G.W. (kg/per piece)
1	LC-BEST 75mm (3")	14	75mm	250mm	260mm	260260270mm		1900 m³	1.00	1.10
2	LC-BEST 80mm (3")	14	80mm	250mm	260mm	260260270mm		1980 m³	1.00	1.10
3	LC-BEST 100mm (4")	14	100mm	250mm	260mm	260260270mm		2000 m³	1.10	1.20
4	LC-BEST 110mm (4")	14	110mm	255mm	260mm	270270270mm		2050 m³	1.15	1.20
5	LC-BEST 120mm (5")	14	120mm	260mm	270mm	270270280mm		2100 m³	1.20	1.30
6	LC-BEST 150mm (6")	14	150mm	270mm	280mm	280280290mm	260mm*260mm	2250 m³	1.25	1.35
7	LC-BEST 155mm (6")	14	155mm	275mm	280mm	280280290mm		2280 m³	1.28	1.40
8	LC-BEST 160mm (6")	14	160mm	280mm	290mm	290290300mm		2300 m³	1.30	1.50
9	LC-BEST 200mm (8")	14	200mm	300mm	300mm	310310310mm	300mm*300mm	2500 m³	1.50	1.75
10	LC-BEST 220mm (9")	14	220mm	320mm	300mm	330330310mm		2580 m³	1.60	1.80
11	LC-BEST 250mm (10")	14/24	250mm	350mm	300mm	360360310mm	350mm*350mm	2650 m³	1.80	2.20
12	LC-BEST 300mm (12")	24	300mm	400mm	350mm	420420360mm	500mm*500mm	2800 m³	3.00	3.50
13	LC-BEST 350mm (14")	24	350mm	450mm	350mm	460460360mm		3300 m³	3.30	4.00
14	LC-BEST 400mm (16")	24	400mm	480mm	370mm	500500390mm	550mm*550mm	3400 m³	3.70	4.20
15	LC-BEST 450mm (18")	24	450mm	550mm	470mm	560560480mm		3500 m³	4.60	5.50
16	LC-BEST 500mm (20")	32	500mm	600mm	480mm	610610500mm	650mm*650mm	3800 m³	5.50	6.50
17	LC-BEST 600mm (24")	32	600mm	700mm	600mm	715715615mm	730mm*750mm	4500 m³	8.80	10.00
18	LC-BEST 680mm (27")	32	680mm	800mm	600mm	810810615mm	1000mm*900mm	5000 m³	9.50	11.00
19	LC-BEST 760mm (30")	42	760mm	890mm	600mm	900900615mm		6000 m³	15.00	16.80
20	LC-BEST 800mm (32")	42	800mm	900mm	600mm	910910615mm	1000mm*1000mm	6500 m³	16.50	18.00

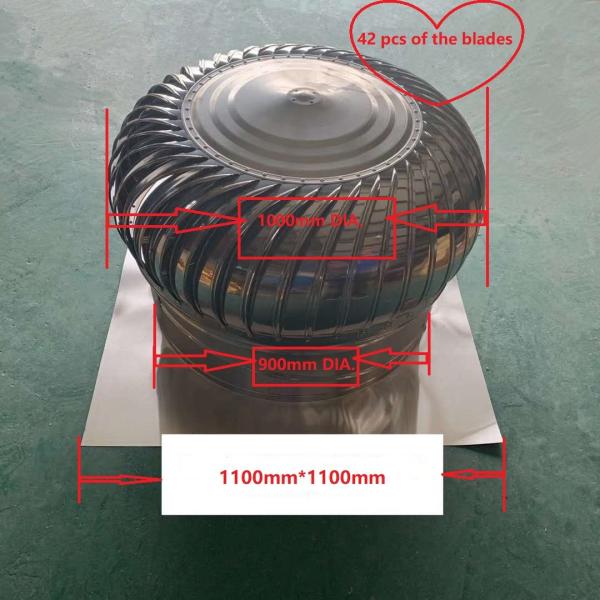

21	LC-BEST 900mm (36")	42	900mm	1000mm	600mm	10101010615mm	1100mm*1100mm	7000 m³	17.50	19.00
22	LC-BEST 1000mm (39")	42	1000mm	1100mm	600mm	11101110615mm	1200mm*1200mm	7800 m³	18.80	21.00
23	LC-BEST 1100mm (43")	60	1100mm	1200mm	600mm	12101210615mm		8600 m³	22.00	25.00
24	LC-BEST 1200mm (47")	60	1200mm	1300mm	600mm	13101310615mm	1340mm*1530mm	9600 m³	24.00	26.00
25	LC-BEST 1500mm (59")	60	1500mm	1600mm	600mm			12800 m³	26.00	28.00

3. Benefits of Roof Turbine Ventilation Systems:

1).Old air is extracted removing heat, fumes, steam and dust

2).Improves people’ s productivity

3).Improves indoor air quality

4).Water and bird proof

5).Reduces structural damage in lofts

6).Protects stored goods

7).Human and environmentally friendly

8).Requires no electricity

4. Be widely used:

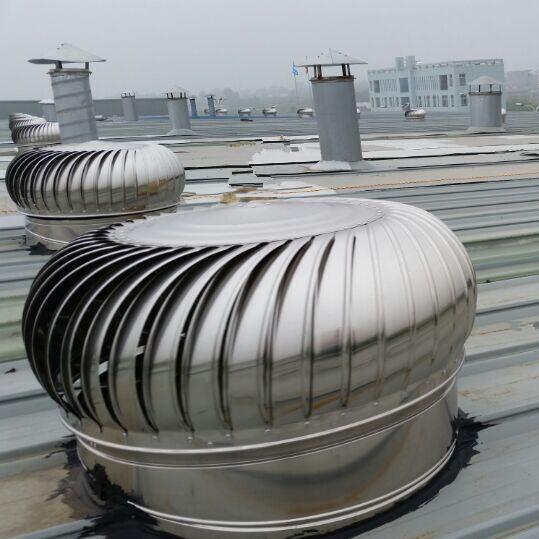

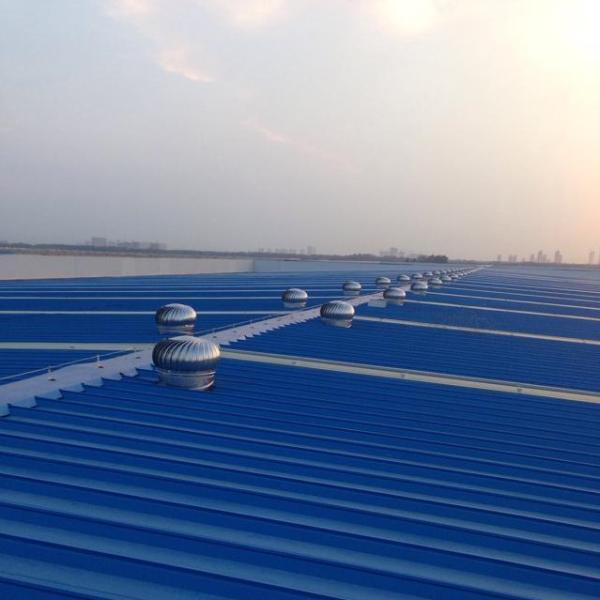

Turbine ventilators remove the heat from your building inducing currents of fresh air cooling your people and the environment.

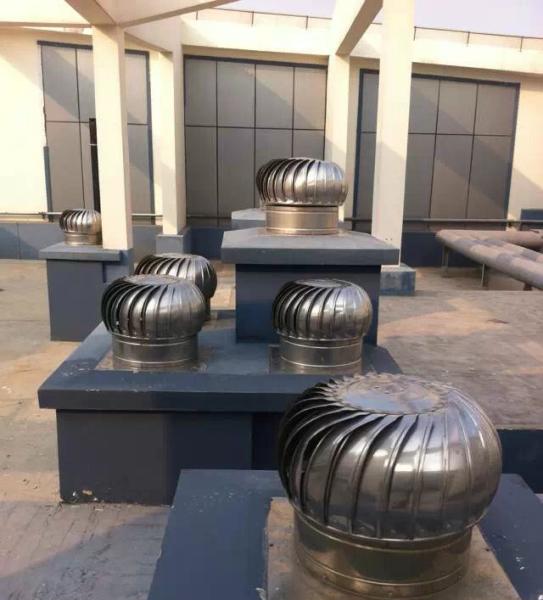

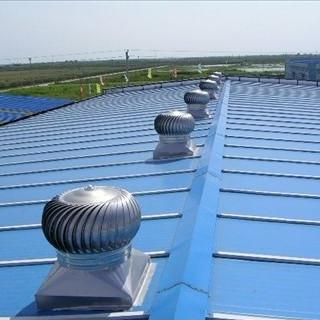

Ideal to ventilate factories, workshops, warehouses, agricultural applications, schools, hostels, assembly halls and other buildings which require effective and efficient ventilation. The extraction produces fresh cool breezes into the building and ensures a cleaner, cooler and more healthy working environment.

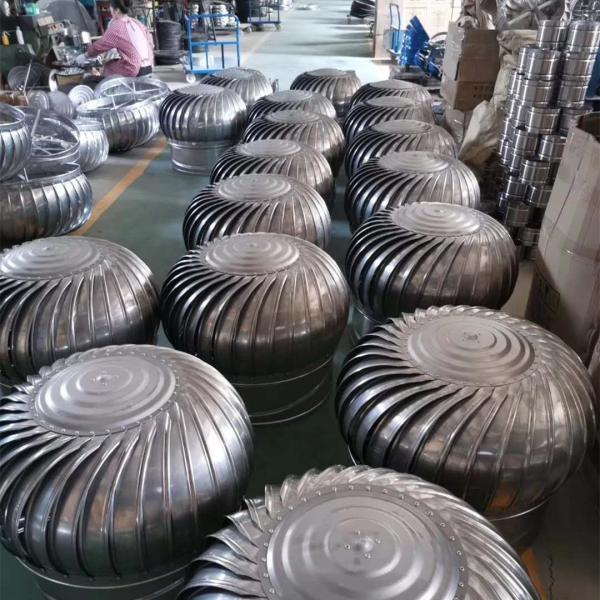

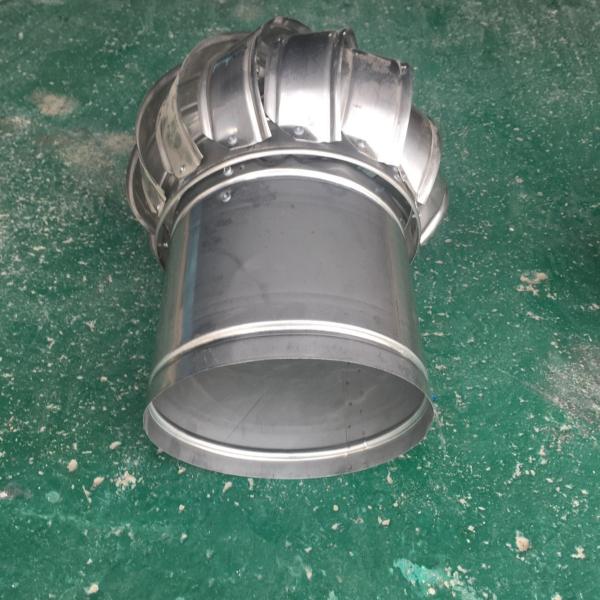

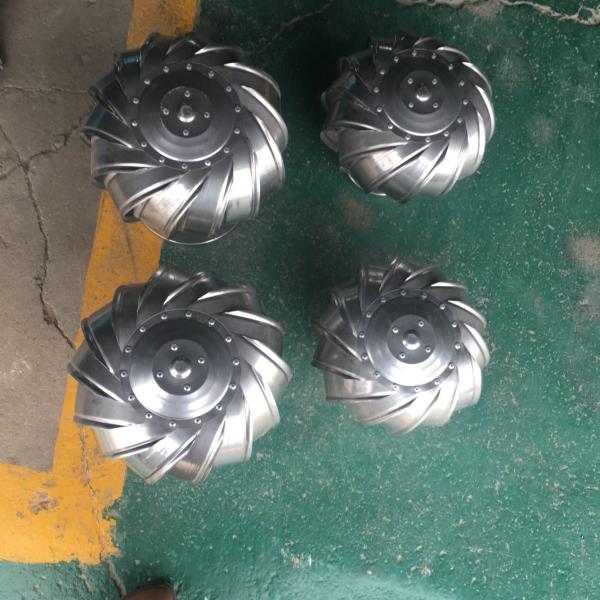

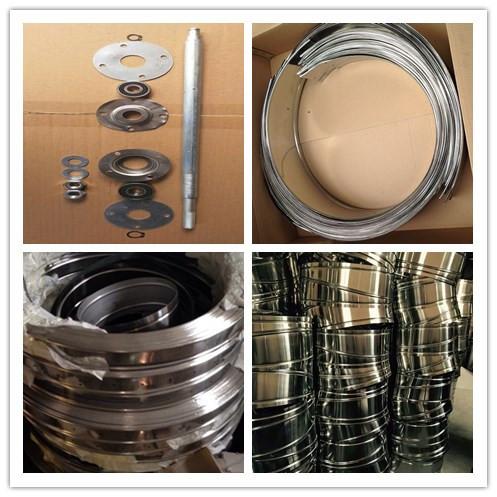

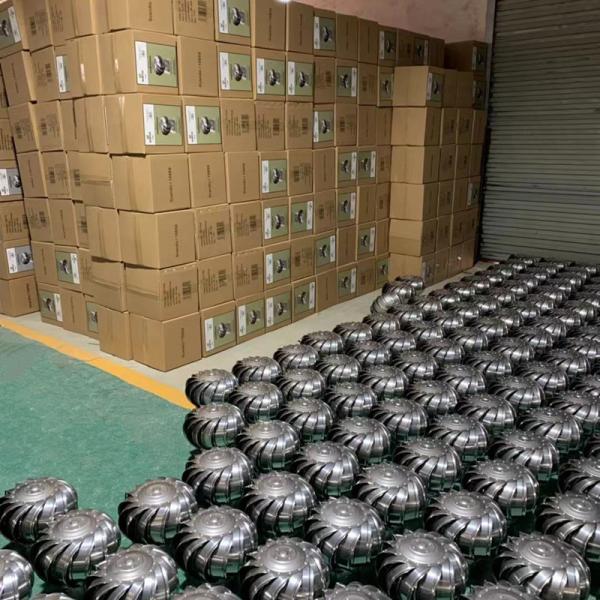

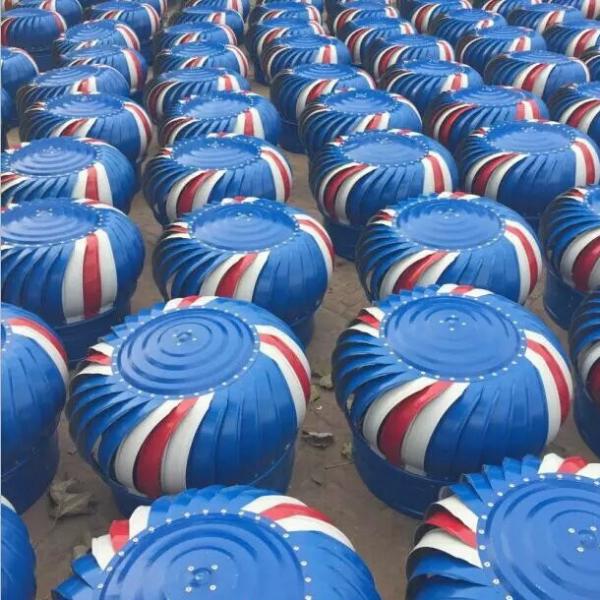

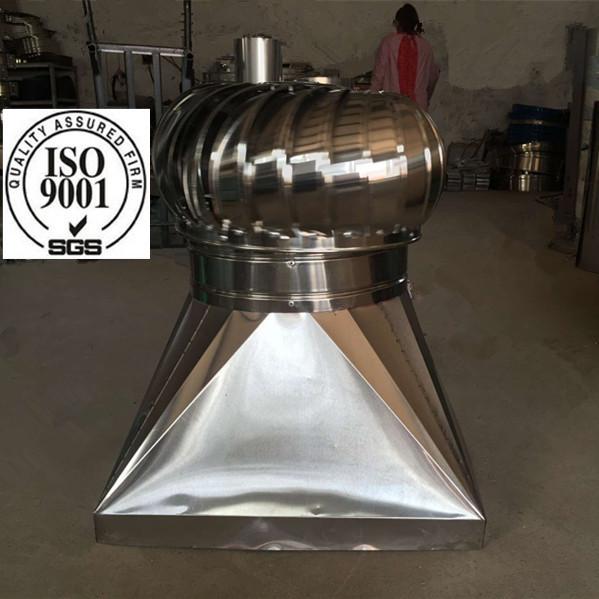

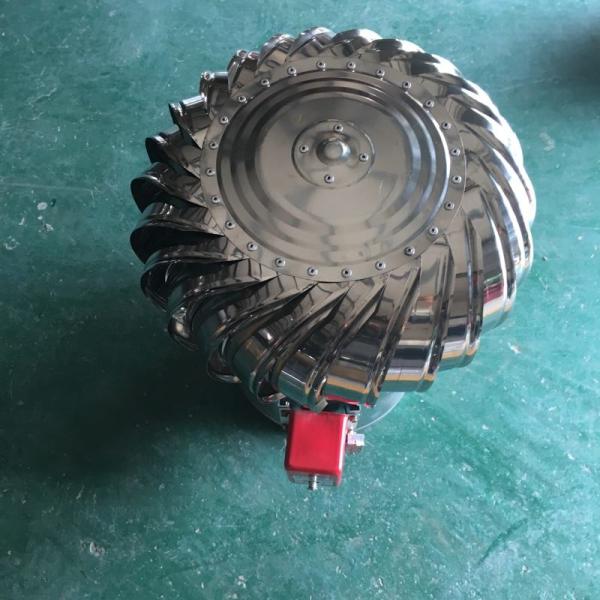

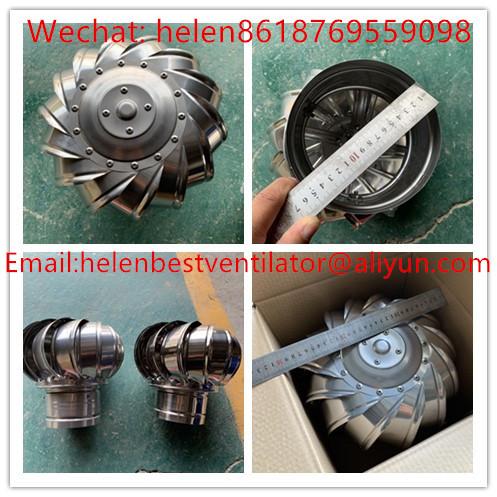

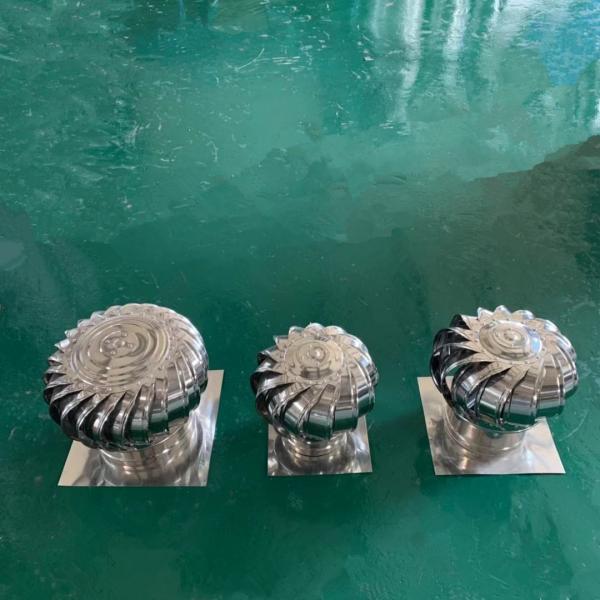

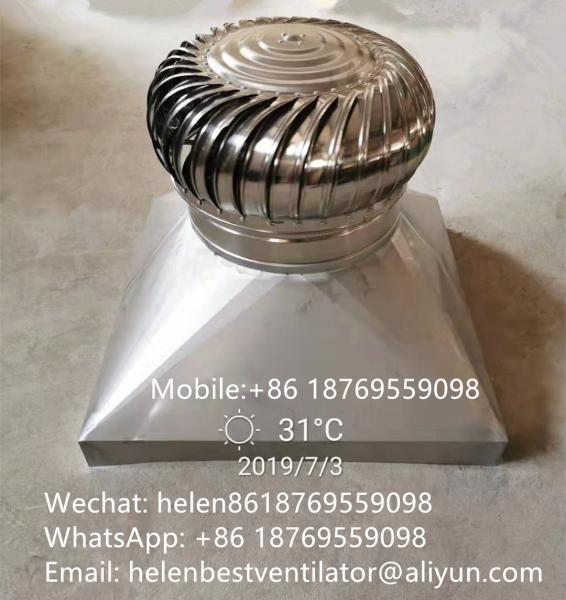

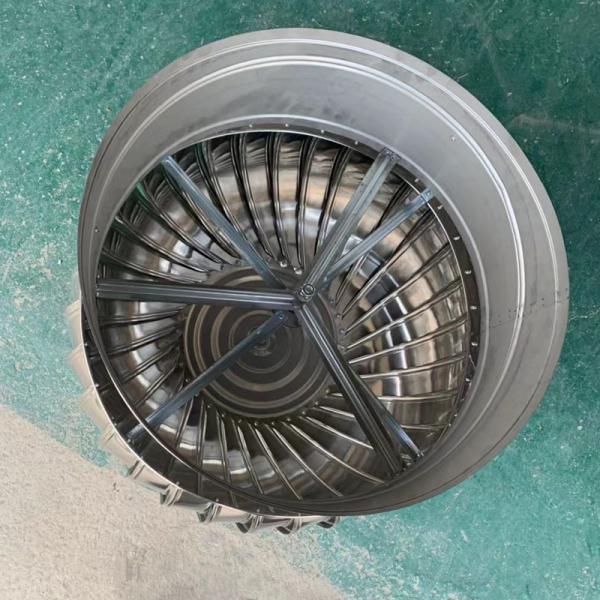

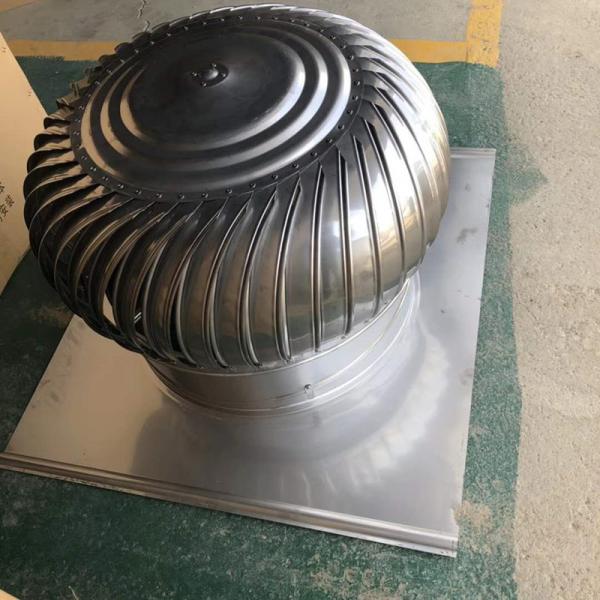

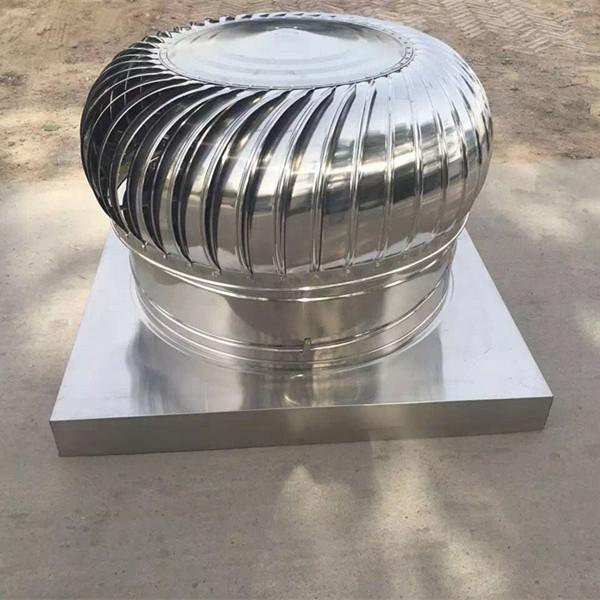

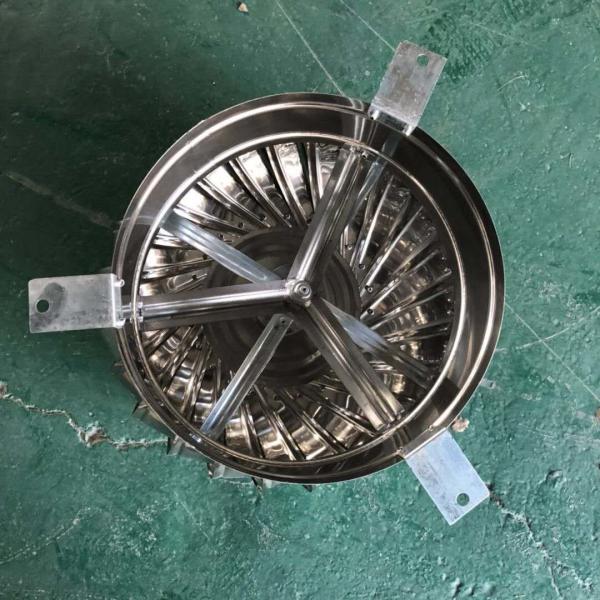

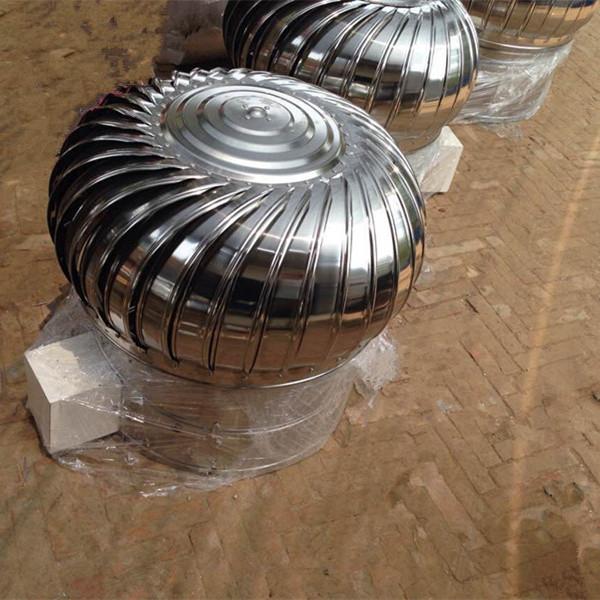

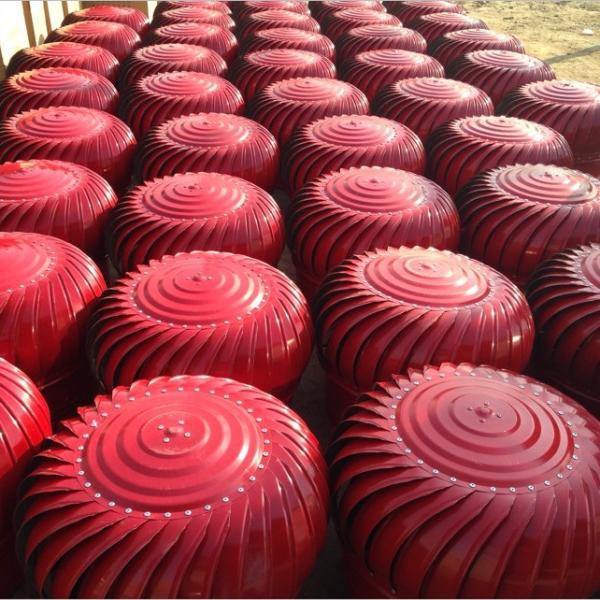

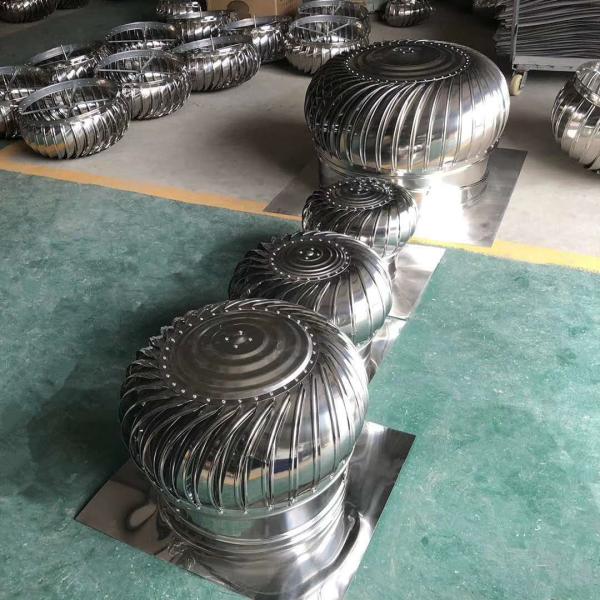

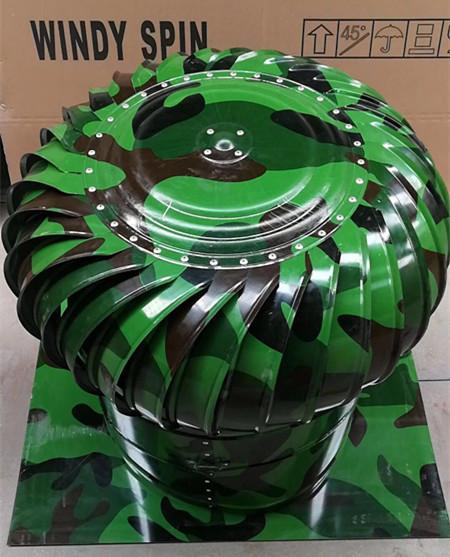

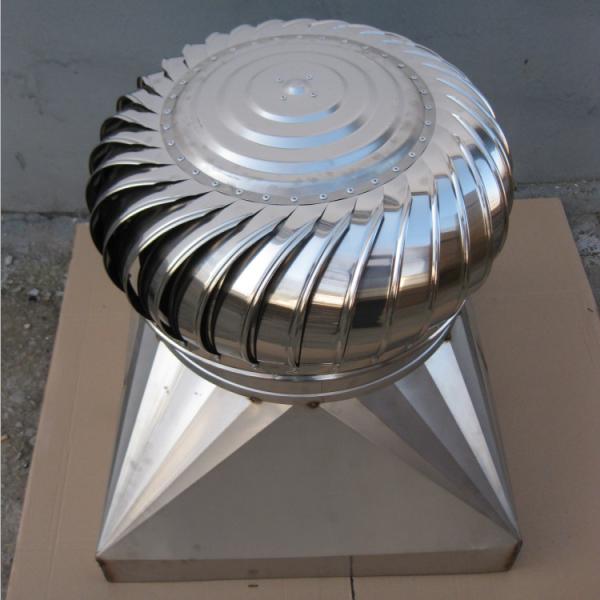

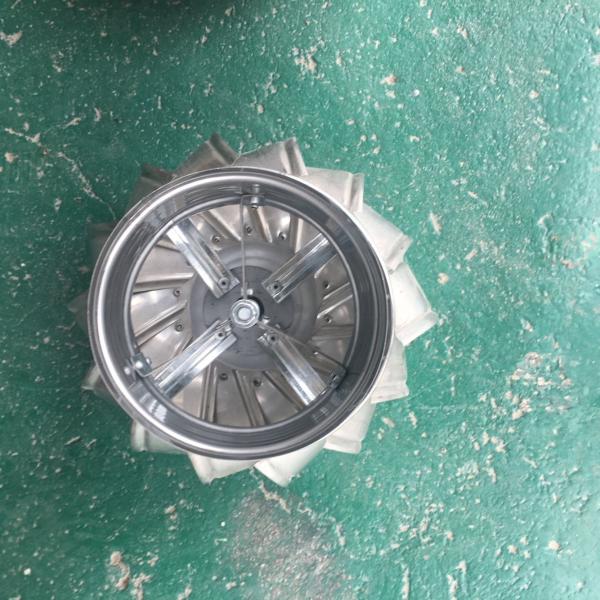

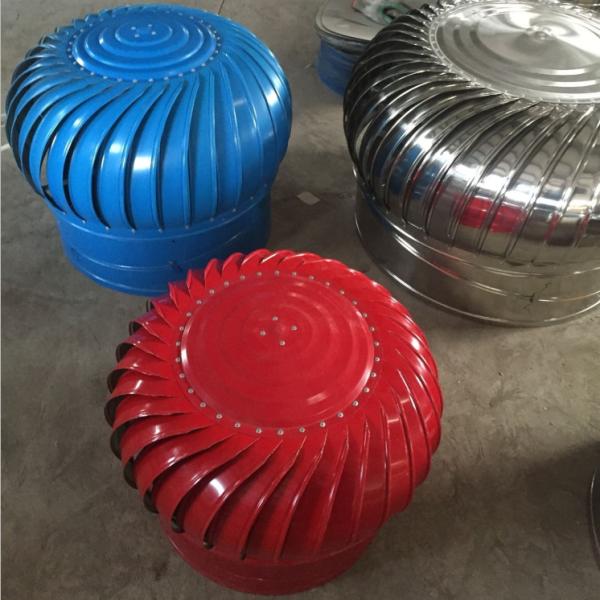

5. Pictures:

Produce LC-BEST 75mm to LC-BEST 1500mm stainless steel No power roof turbine ventilation for factory, accept customzied
