double roll forming roofing machine
double roll forming roofing machine
double roll forming roofing machine
double roll forming roofing machine
double roll forming roofing machine
double roll forming roofing machine
double roll forming roofing machine
double roll forming roofing machine
double roll forming roofing machine
double roll forming roofing machine
Specifications
Place of Origin :
China
Brand Name :
AISON
Certification :
CE, ISO9001
Model Number :
AISON-DF16
MOQ :
1 SET
Price :
Contact us
Packaging Details :
CONTAINER
Delivery Time :
within 35-45 work days
Payment Terms :
TT
Supply Ability :
15 SETS/month
Material of Blade :
Cr12
Coil width :
914- 1250 mm
Description

double roll forming roofing machine

1. Machine Parameters

No.

Main Parameter of Roll Forming Manufacturing Machine

1

Suitable to process

Color steel plate

2

Width of the plate

1000-1250mm

3

Rollers

Up layer:8-15 rows

Down layer:17rows

4

Dimensions

9600*1550*1910mm

5

Power

4+4kw

6

Thickness of the plate

0.3-0.8mm

7

Productivity

15- 20m/min

8

Material of the cutting blade

Cr12

9

Diameter of the roller

Φ90mm

10

Weight

About 6.1T

11

Voltage

380V 50Hz 3phases

15

Control system

PLC control

2. Drawing Profile showing

double roll forming roofing machine

All technical parameters can be changed, according to user's need

Products Warranty12 months, and we will provide the technical support for the whole life of the equipment

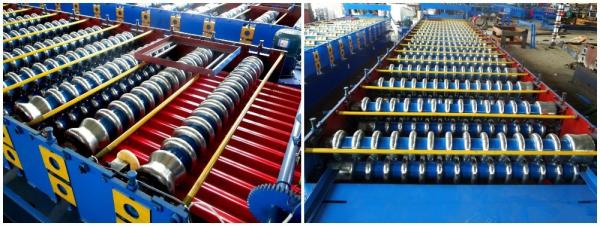

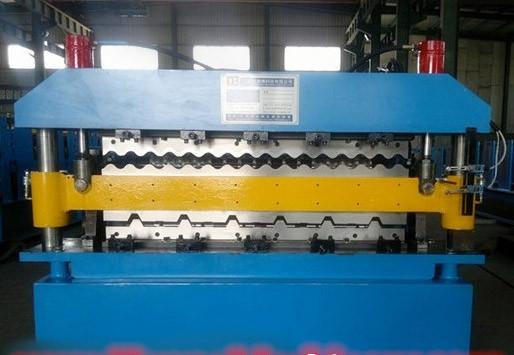

3. Machine Details

double roll forming roofing machine

double roll forming roofing machine

double roll forming roofing machine

4. Machine Work Flow

double roll forming roofing machine

5. Machine Components

double roll forming roofing machine

6. Machine Production Flow

double roll forming roofing machine

7. Related Machine Showing

double roll forming roofing machine

8. Certifaction shows

double roll forming roofing machine

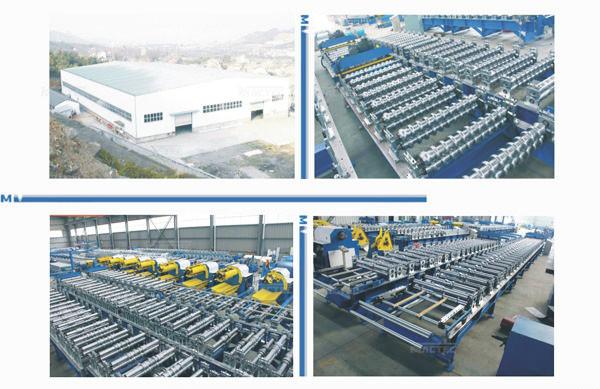

9. Factory Showing Time

double roll forming roofing machine

double roll forming roofing machine
