Thickness 4.0mm Steel Angle Profile Purlin Roll Forming Machine
Thickness 4.0mm Steel Angle Profile Purlin Roll Forming Machine
Thickness 4.0mm Steel Angle Profile Purlin Roll Forming Machine
Thickness 4.0mm Steel Angle Profile Purlin Roll Forming Machine
Thickness 4.0mm Steel Angle Profile Purlin Roll Forming Machine
Thickness 4.0mm Steel Angle Profile Purlin Roll Forming Machine
Thickness 4.0mm Steel Angle Profile Purlin Roll Forming Machine
Thickness 4.0mm Steel Angle Profile Purlin Roll Forming Machine
Specifications
Brand Name :
NKH MACHINERY
Model Number :
L30-100
Certification :
CE/SONCAP/CSA
Place of Origin :
CHINA
MOQ :
1 UNIT
Price :
negotiation
Payment Terms :
L/C, T/T
Supply Ability :
05 UNITS/MONTH
Delivery Time :
40 WORKING DAYS
Packaging Details :
NUDE CARGOES FOR ROLL FORMER WITH CUTTER IN 20/40FT CONTAINER, WOODEN BOX FOR PLC CONTROL CABINET
name :
purlin making machine
Roller material :
Cr12, heat treatment
Shaft Diameter :
75mm
Raw material :
GI sheets, G550
Warranty :
12 months
Cutting blade material :
Cr12Mov, heat treatment
Description

Angle Profile roll forming machine, Steel Frame Purlin Machine, L30-100 angle, 2-4mm with punching​

Quick Detail:

  1. Thickness : 2.0mm-4.0mm
  2. Material : Galvanized sheets
  3. Material weight : 2.0Mt
  4. Coil inner diameter : 508mm
  5. Driven way: by 11kw driven motor
  6. Cutting way: by hydraulic power pack, pre-punch, post punch, post cut
  7. Cutting tolerance : ±1mm

Application:

The angle steel can be composed of various force-receiving members according to the different needs of the structure, and can also be used as a connecting member between the members. Widely used in various building structures and engineering structures, such as house beams, bridges, transmission towers, cranes, ships, industrial furnaces, reaction towers, container racks, cable trench supports, power piping, etc.

Machine list:

  1. Manual Un-coiler rack
  2. Pre-leveling device
  3. Roll forming machine
  4. Hydraulic Pre-punch & Post-punch & Post- cut device
  5. Run out table
  6. PLC control systems

Description/Technical Parameter details of complete line:

  • 2.0TX300mm Manual Un-coiler

Manual de-coiler

  • Pre-Leveling Device

Pre-Level Device with 4 over 3 shafts to remove the Coil-set

Share the same motor with the roll former

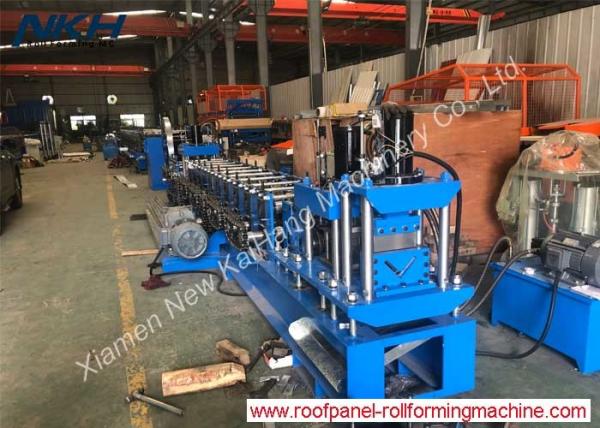

  • Roll forming machine with pre-punching & post punching & post cutting details as below table :
Suitable roll forming material Color steel sheet or galvanized steel sheet
Thickness 2.0-4.0mm
Carriage Frame design wall-plate-frame-type
Rolling mills forming stages 10 stages
Material of forming roller Cr12, heat treatment
Shafts Diameter Φ75mm
Main motor power 11Kw
Production speed 18m/min
Hydraulic group power 7.5Kw
Material of cutting blade Cr12Mov, heat treatment
Electric Voltage Standard 415V/50Hz/3PH or as request
Major Color of Machine Painted RAL 5015(Blue) or as request
  • PLC Control System

Control the quantity & cutting length automatically

Combined with: Siemens brand PLC and Touch Screen

Schneider brand Inverter, Omron encoder, etc

Cut-to-length tolerance≤±1mm

Loop control

Control voltage 24V

  • Product Rack 4 meter long ,rolled type

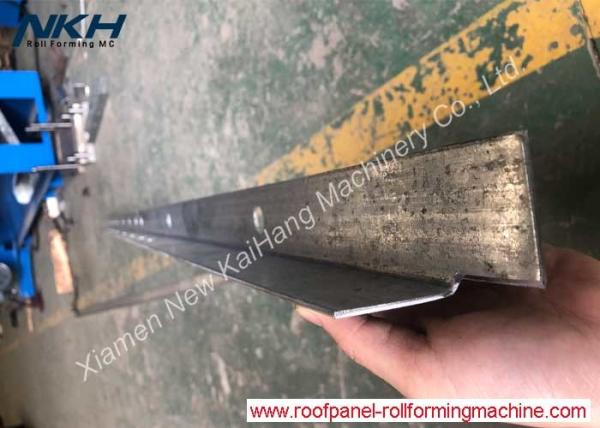

Profile Drawing/Layout/Equipment reference pictures:

Thickness 4.0mm Steel Angle Profile Purlin Roll Forming MachineThickness 4.0mm Steel Angle Profile Purlin Roll Forming MachineThickness 4.0mm Steel Angle Profile Purlin Roll Forming Machine
