Specifications
Brand Name :
NKH MACHINERY
Model Number :
YX28-200-1000/1200
Certification :
CE/SONCAP/CSA
Place of Origin :
CHINA
MOQ :
1 UNIT
Price :
negotiation
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
10 UNITS/MONTH
Delivery Time :
40 WORKING DAYS
Packaging Details :
NUDE CARGOES FOR ROLL FORMER WITH CUTTER IN 40FT CONTAINER, WOODEN BOX FOR PLC CONTROL CABINET
name :
roofing sheets roll forming machine
Control system :
PLC control system
Raw material :
PPGI/Galvanized/Alu-Zinc/PPGL sheets, G245-550
Shaft material :
High Grade No.45 Forged
Roller material :
45# steel
Weight :
5T
Cutting blade material :
Cr12, heat treatment
Description

Indian popular new 1450mm input wide width roofing roll forming machine

Application:

Metal sheet roll formers are widely used to produce mainly metal roofing and wall cladding sheets, and the most popular metal sheet roll forming machines in the markets can be found here.

Nowadays, the wider input roofing panel machine with 1220/1450mm input coil width design is more and more popular in market such as in India

Quick Detail:

  1. Thickness : 0.4-0.8mm
  2. Material : G550, pre-painted sheets
  3. Input width : 1219/1450mm
  4. Coil ID: 510mm
    1. Effective width:1000/1200+/-4mm
    2. Material weight: 5MT
    3. Driven motor: 15Kw motor with gear box
    4. Cutting blade Material: Cr12Mov, heat treatment

Machine list:

  1. 5T*1500mm hydraulic de-coiler as standard design
  2. Roll former
  3. Hydraulic cutter
  4. Run out rack
  5. PLC control system

Description/Technical Parameter details of complete line:

  • 5TX1250mm Hydraulic Un-Coiler

5TX1500mm hydraulic de-coiler as standard

You can also adopt 10 tons de-coiler with coil car design

Hydraulic system to expand coil inner hole, Pump motor: 3KW

Coil Inner-diameter= 510±30mm

Load Capacity: Max. 5 Tons, Coil Width Max. 1500mm

Taper wedge expand type

Driving motor to turn the coil, 3KW,

Delta/Schneider brand inverter

Other design such as snubber arm /support arm/coil car as per request

  • Roll forming machine with cutting details as below table :
Suitable roll forming material Color steel sheet or galvanized steel sheet, G550
Thickness 0.4-0.8mm
Coil feed in width 1219/1450mm
Carriage Frame design Wall-plate-frame-design, 20mm thickness plate
Roll forming stages 22 stages
Roller material Cr12, heat treatment
Shafts Diameter Φ95mm
Main motor power 15Kw with reducer
Line speed of roll former 15m/min or higher
Hydraulic group power 7.5 Kw
Cutting material Cr12, hear treatment
Electric Voltage Standard 415V/50Hz/3PH or as request
Major Painting Color Customized and RAL5015 as standard
  • PLC Control System

Cut to length control

Cut-to-length tolerance≤±1mm

Siemens brand PLC and touch screen, Schneider/ Shihlin/ Delta brand Inverter, Omron encoder

Schneider brand low voltage electric elements

  • Product Rack 3 units, no power rack

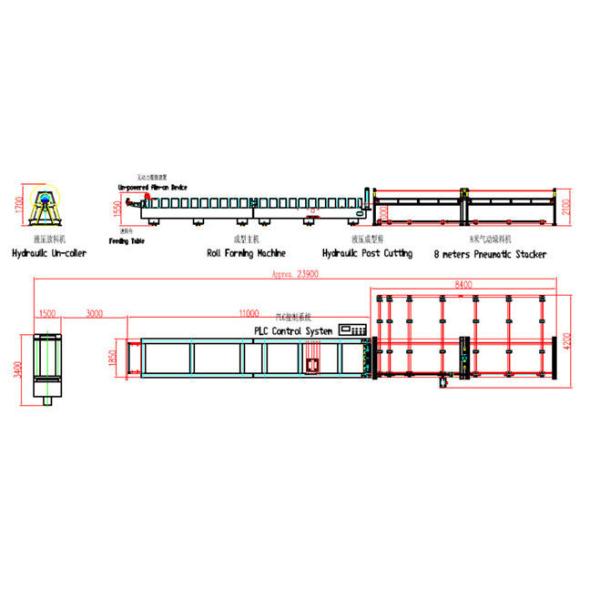

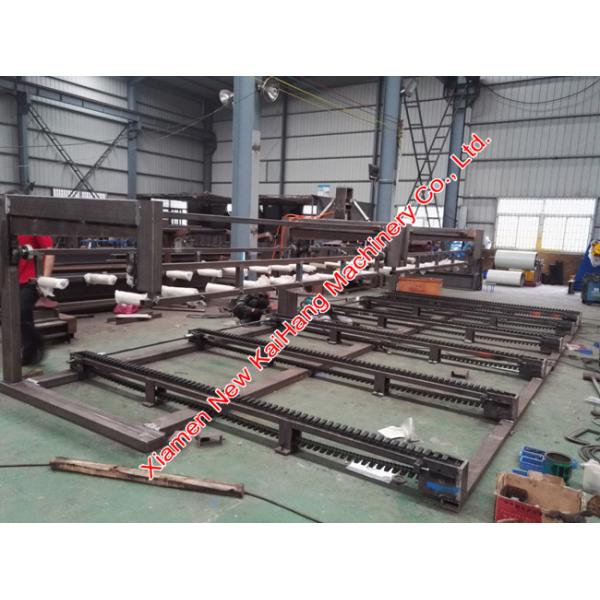

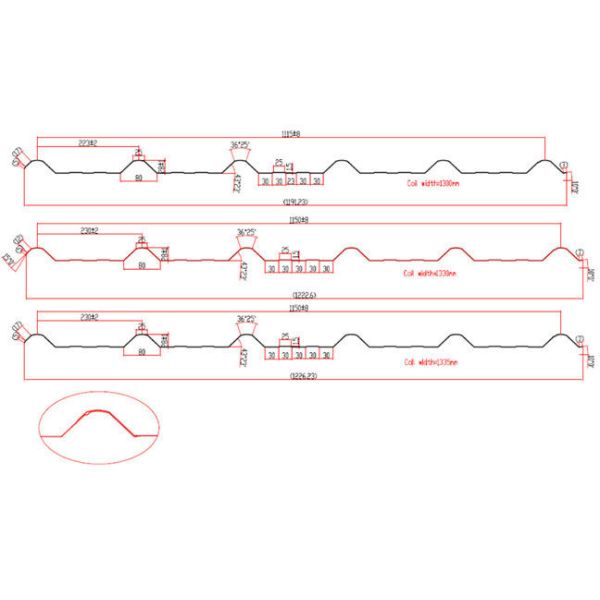

Profile Drawing/Layout/Equipment reference pictures:

Popular Roof Panel Roll Forming Machine PLC Control With 1450 mm Input WidthPopular Roof Panel Roll Forming Machine PLC Control With 1450 mm Input WidthPopular Roof Panel Roll Forming Machine PLC Control With 1450 mm Input WidthPopular Roof Panel Roll Forming Machine PLC Control With 1450 mm Input WidthPopular Roof Panel Roll Forming Machine PLC Control With 1450 mm Input Width
