Roll former for trim deck 760 profiles, rollforming making machine, TD760 type
Roll former for trim deck 760 profiles, rollforming making machine, TD760 type
Roll former for trim deck 760 profiles, rollforming making machine, TD760 type
Roll former for trim deck 760 profiles, rollforming making machine, TD760 type
Roll former for trim deck 760 profiles, rollforming making machine, TD760 type
Roll former for trim deck 760 profiles, rollforming making machine, TD760 type
Specifications
Brand Name :
NKH MACHINERY
Model Number :
TD760
Certification :
CE/SONCAP/CSA
Place of Origin :
CHINA
MOQ :
1 UNIT
Price :
negotiation
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
10 UNITS/MONTH
Delivery Time :
40 WORKING DAYS
Packaging Details :
NUDE CARGOES FOR ROLL FORMER WITH CUTTER IN 40FT CONTAINER, WOODEN BOX FOR PLC CONTROL CABINET
Weight :
5T
Control system :
PLC control system
Roller material :
45# steel
Raw material :
PPGI/Galvanized/Alu-Zinc/PPGL sheets, G245-550
Shaft material :
High Grade No.45 Forged
Cutting blade material :
Cr12, heat treatment
Description

Roll former for trim deck 760 profiles, rollforming making machine, TD760 type

Features:

TrimDeck 760 also called TD 760 profile machine from Blue Scope in Australia (original input 940mm, now many clients prefer 914mm coil width) is now very popular in South Asia, such as in Malaysia, with full hard material for roofing buildings

Quick Detail:

  1. Thickness : 0.42/0.48/0.5/0.6mm
  2. Material : G550, pre-painted sheets
  3. Input width : 914mm
    1. Effective width: 760+/-4mm
    2. Coil inner diameter : 508+/-30mm
    3. Material weight: 5MT cap.
    4. Driven way of roll former: by 5.5kw motor with gear box
    5. Cutting Material: Cr12, heat treatment

Machine list:

  1. 5T*1000mm hydraulic de-coiler as standard design
  2. Roll forming machine
  3. Hydraulic cutting device with LOGO pressing as option
  4. Run out rack
  5. PLC control cabinet

Description/Technical Parameter details of complete line:

  • 5TX1000mm Hydraulic Un-Coiler with/without coil car

Please go to the un-coiler items for details

  • Manual Pre-shearing device

Manual cut

to cut off the end of the final piece of sheet only

Working thickness: max. 0.6mm

  • Roll forming machine with cutting details as below table :
Suitable roll forming material Color steel sheet or galvanized steel sheet
Thickness 0.42-0.6mm
Coil feed in width 914mm
Carriage Frame design Wall-plate-frame-design as classic design
Rol forming stages 16 stages
Material of forming roller 45# steel, CNC lathes, Hard Chrome Coated
Shafts Diameter Φ75mm
Main motor power 5.5Kw with reducer
Rolling speed of roll former 18m/min (Higher speed is available, depends on the specification required by the buyer)
Hydraulic group power 3.0 Kw
Material of cutting blade Cr12, hear treatment
Electric Voltage Standard 415V/50Hz/3PH or as the customer's requirements
Major Painting Color Customized and RAL5015 as standard
  • PLC Control System

Cut to length control

999 batches can be set in PLC

The precision controlled by Omron encoder and counting wheels

Cut-to-length tolerance≤±1mm

Siemens brand PLC and touch screen, Schneider/ Shihlin/ Delta brand Inverter, Omron encoder

  • Product Rack rolled type normally

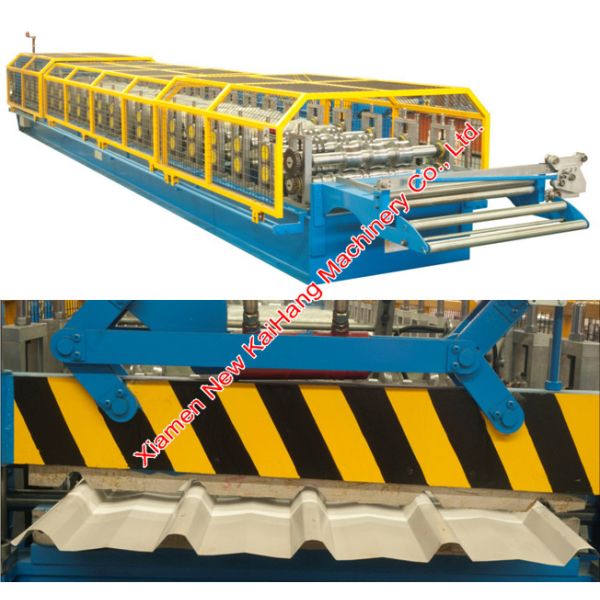

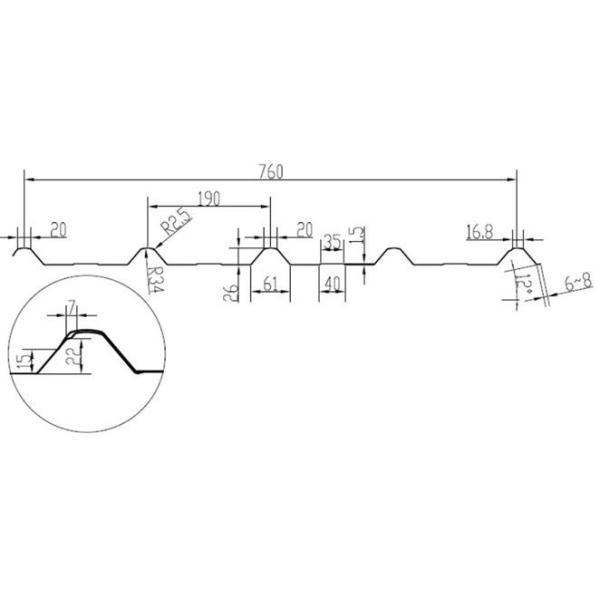

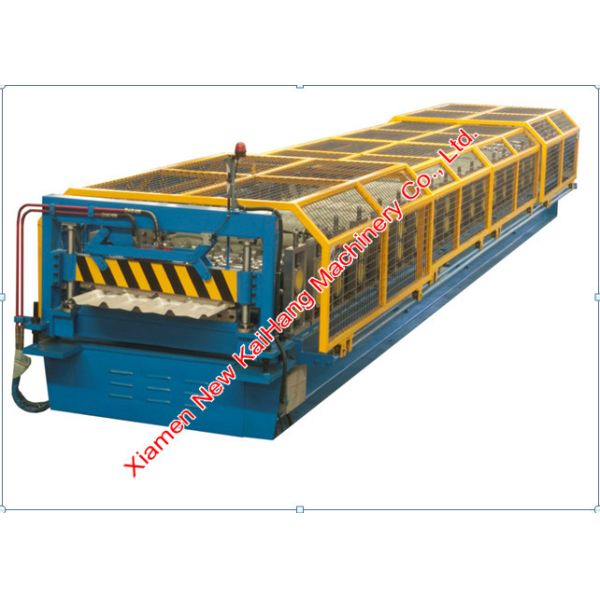

Profile Drawing/Layout/Equipment reference pictures:

Roll former for trim deck 760 profiles, rollforming making machine, TD760 typeRoll former for trim deck 760 profiles, rollforming making machine, TD760 typeRoll former for trim deck 760 profiles, rollforming making machine, TD760 type
