Specifications
Brand Name :
NKH MACHINERY
Model Number :
YX28-250-750/1030
Certification :
CE/SONCAP/CSA
Place of Origin :
CHINA
MOQ :
1 UNIT
Price :
negotiation
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
10 UNITS/MONTH
Delivery Time :
40 WORKING DAYS
Packaging Details :
NUDE CARGOES FOR ROLL FORMER WITH CUTTER IN 40FT CONTAINER, WOODEN BOX FOR PLC CONTROL CABINET
Weight :
5T
Control system :
PLC control system
Roller material :
45# steel
Raw material :
PPGI/Galvanized/Alu-Zinc/PPGL sheets, G245-550
Shaft material :
High Grade No.45 Forged
Cutting blade material :
Cr12, heat treatment
Description

Philippines popular metal roof cold rolled making machine, metal roofing roll forming machine

Quick Detail:

  1. Thickness : 0.4mm-0.8mm
  2. Material : Full hard PPGI material
  3. Input width : 1220mm
  4. Effective width: 750/1030+/-4mm
  5. Material weight : 5MT or customized
  6. Coil inner diameter : 510mm
  7. Roller material: 45#, CNC laths, hard chrome coated
  8. Cut to length tolerance : ±1mm

Description/Technical Parameter details of complete line:

  • 5TX1250mm hydraulic de-coiler with/without coil car

Hydraulic system to expand coil inner hole, pump motor: 3KW

Coil OD= 510±30mm

Coil capacity: Max. 5Tons

Coil width Max. 1250mm

Taper wedge expand type

Driving motor to turn the coil, 3KW

  • Entry Roller & Manual Pre-shearing device (Un-powered)

To cut off the end of the first or final piece of sheet only

Cutting thickness: max. 0.8mm

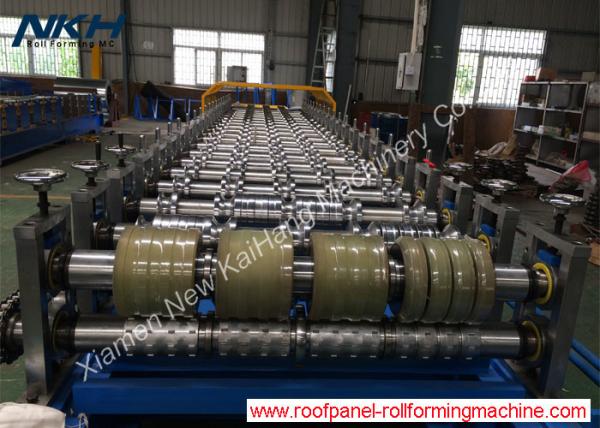

  • Roll forming machine with cutting details as below table :
Production material Pre-painted Sheets,G550
Thickness range 0.4mm-0.8mm
Coil width 1220mm
Carriage Frame design

Classic wall-plate-frame-design,

18mm wall plate thickness
Roll forming stages 20 stages

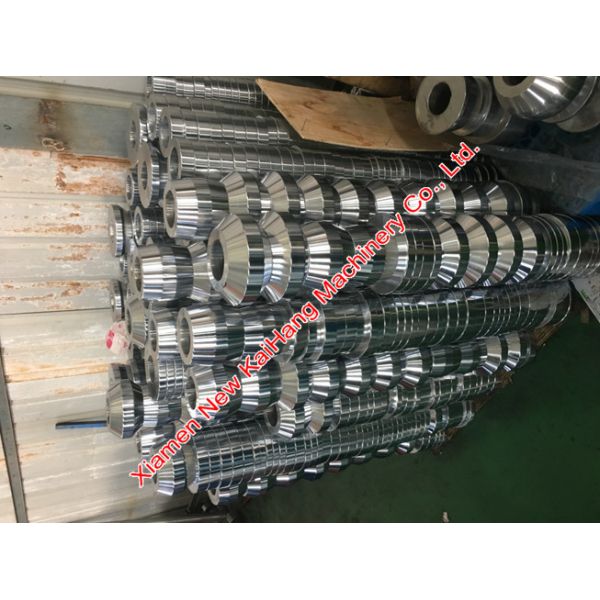

Material of forming roller 45# steel, CNC lathes, Hard Chrome Coated or with roller heat treatment as option
Shafts Diameter Φ75mm/95mm
Main motor power

7.5Kw driven motor with gear box

Or higher motor power for high speed
Line speed of roll former 15-18m/min
Hydraulic group power 4.0Kw
Material of cutter Cr12, hear treatment as normal design
Electric Voltage Standard 220V/60Hz/3Ph or as the customer's requirements
Major Color of Machine Painted RAL 5015(Blue) or as per customer’s requirements
  • PLC Control System

Siemens brand PLC/touch screen, Schneider/ Shihlin/ Delta brand Inverter, Omron brand encoder

Cut-to-length tolerance≤±1mm

Control Voltage 24V

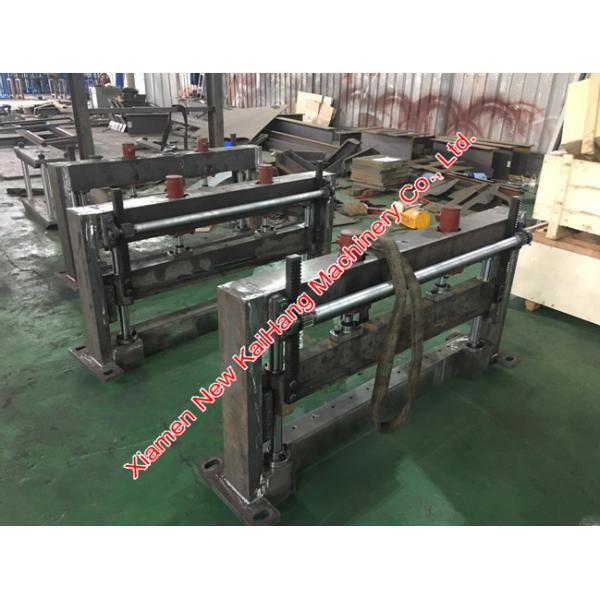

  • Run out table rolled type, 3 units

Machine list:

  1. Hydraulic un-coiler with 5Tons capacity
  2. Normal speed roll former
  3. Hydraulic cutting device
  4. Run out table
  5. PLC control systems

Features:

This metal sheet roll forming machine produces trapezoidal sheets from color pre-painted steel coils, Galvanized steel coils, alu-zinc sheets, and sometimes aluminum steel coils (aluminum roof panels are preferred in Nigeria)

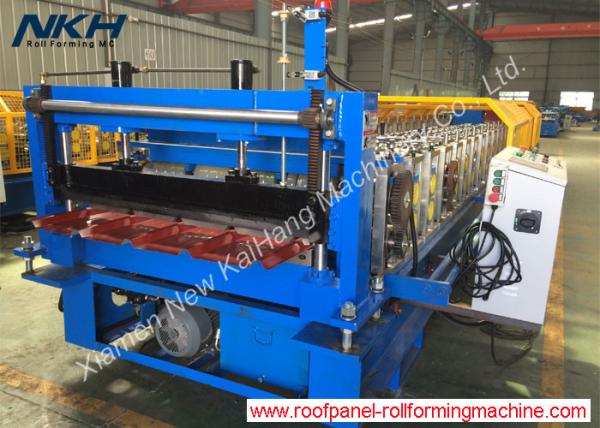

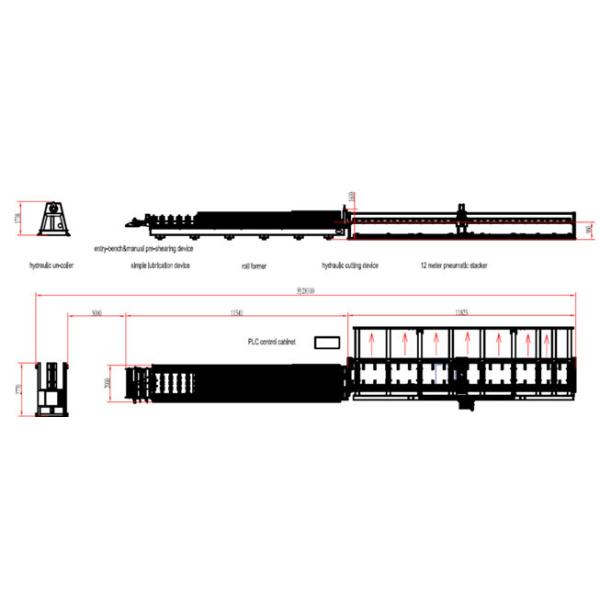

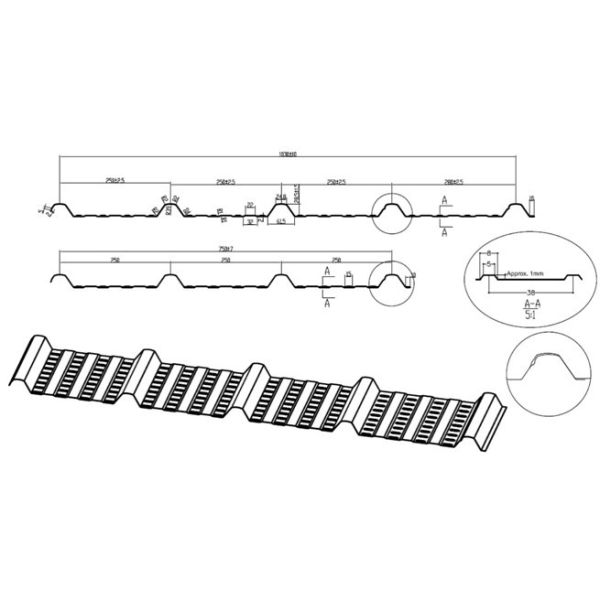

Profile Drawing/Layout/Equipment reference pictures:

Philippines popular metal roof cold rolled making machine, metal roofing roll forming machinePhilippines popular metal roof cold rolled making machine, metal roofing roll forming machinePhilippines popular metal roof cold rolled making machine, metal roofing roll forming machinePhilippines popular metal roof cold rolled making machine, metal roofing roll forming machinePhilippines popular metal roof cold rolled making machine, metal roofing roll forming machine
