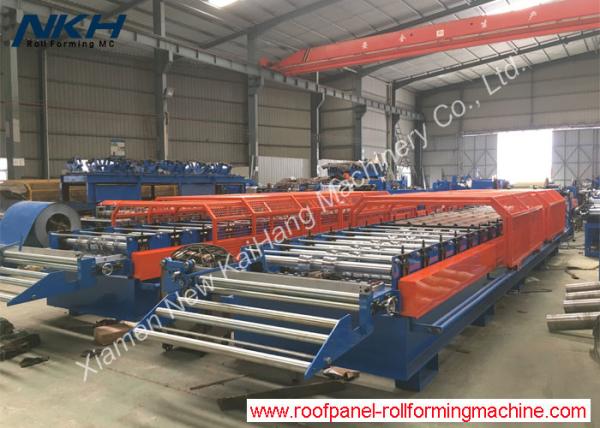

Malaysia standard 760 roofing panel rolling machine, 0.18mm thick, PPGL
Malaysia standard 760 roofing panel rolling machine, 0.18mm thick, PPGL
Malaysia standard 760 roofing panel rolling machine, 0.18mm thick, PPGL
Malaysia standard 760 roofing panel rolling machine, 0.18mm thick, PPGL
Specifications
Brand Name :
NKH MACHINERY
Model Number :
YX26-190-760
Certification :
CE/SONCAP/CSA
Place of Origin :
CHINA
MOQ :
1 UNIT
Price :
negotiation
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
10 UNITS/MONTH
Delivery Time :
40 WORKING DAYS
Packaging Details :
NUDE CARGOES FOR ROLL FORMER WITH CUTTER IN 40FT CONTAINER, WOODEN BOX FOR PLC CONTROL CABINET
Weight :
5T
Control system :
PLC control system
Roller material :
45# steel
Raw material :
PPGI/Galvanized/Alu-Zinc/PPGL sheets, G245-550
Shaft material :
High Grade No.45 Forged
Cutting blade material :
Cr12, heat treatment
Description

Malaysia standard 760 roofing panel rolling machine, 0.18mm thick, PPGL

Features:

YX23-190-760 profile machine is very popular in South Asia, such as in Malaysia, Myanmar, Indonesia with thin and full hard material with high speed requirement too

Quick Detail:

  1. Thickness : 0.18-0.3mm
  2. Material : G550, GGPI, PPGL
  3. Input width : 914mm
    1. Effective width: 760+/-4mm
    2. Material weight: 5MT cap.
    3. Coil inner diameter : 510+/-30mm
    4. Driven way: by 5.5kw motor with gear box
    5. Cutting Material: Cr12, heat treatment
    6. Cutting tolerance : ±1mm

Machine list:

  1. Hydraulic or manual un-coiler as request
  2. Roll former with tooling rollers
  3. Hydraulic cutting device
  4. Run out table or automatic stacking device
  5. PLC control systems

Description/Technical Parameter details of complete line:

  • 5TX1250mm Hydraulic Un-Coiler with coil car

Please refer to the item for details

  • Entry Roller & Manual Pre-shearing device (Un-powered)

Smart cut control, to cut off the end of the final piece of sheet only

Working thickness: max. 0.6mm

  • Roll forming machine with cutting details as below table :
Suitable roll forming material Color steel sheet or galvanized steel sheet
Thickness 0.15mm-0.20mm
Coil input width 750mm
Carriage Frame design Wall-plate-frame-design as classic design
Rol forming stages 18 stages
Material of forming roller 45# steel, CNC lathes, Hard Chrome Coated with roller heat treatment for frequently used production
Shafts Diameter Φ75mm
Main motor power 5.5Kw with reducer
Rolling speed of roll former 18m/min (Higher speed is available, depends on the specification required by the buyer)
Hydraulic group power 3.0 Kw
Material of cutting blade Cr12, hear treatment
Electric Voltage Standard 415V/50Hz/3PH or as the customer's requirements
Major Painting Color Customized and RAL5015 as standard
  • PLC Control System

Cut to length control

The precision controlled by Omron encoder and counting wheels

Cut-to-length tolerance≤±1mm

Siemens brand PLC and touch screen, Schneider/ Shihlin/ Delta brand Inverter, Omron encoder

Can show interface language as request

  • Product Rack rolled type normally can also be stacker

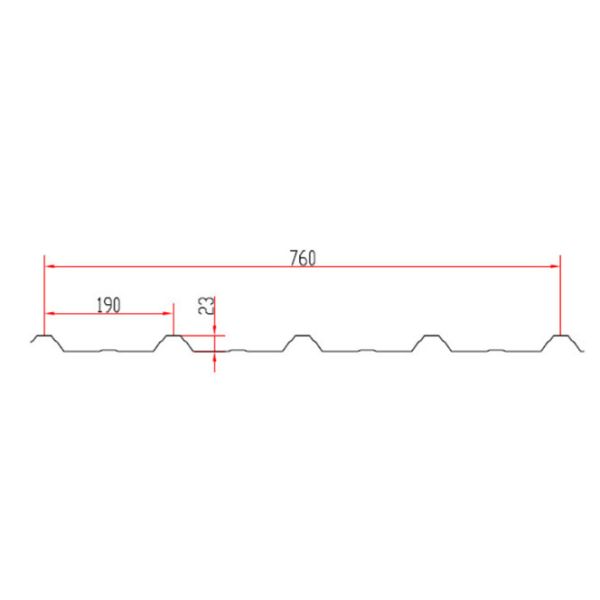

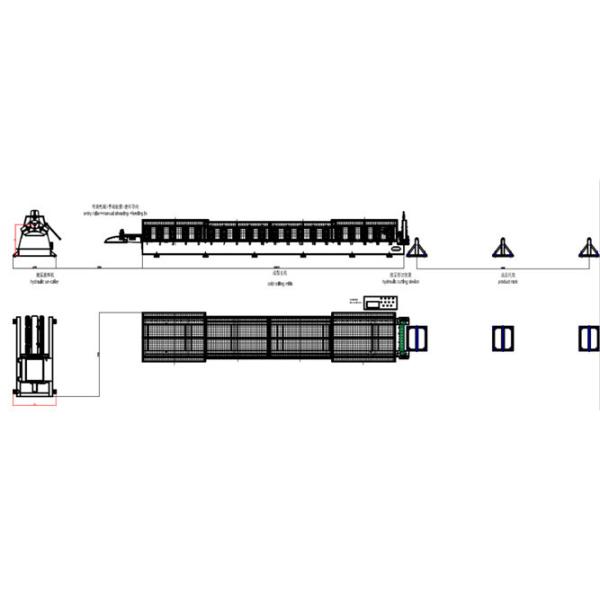

Profile Drawing/Layout/Equipment reference pictures:

Malaysia standard 760 roofing panel rolling machine, 0.18mm thick, PPGLMalaysia standard 760 roofing panel rolling machine, 0.18mm thick, PPGL
